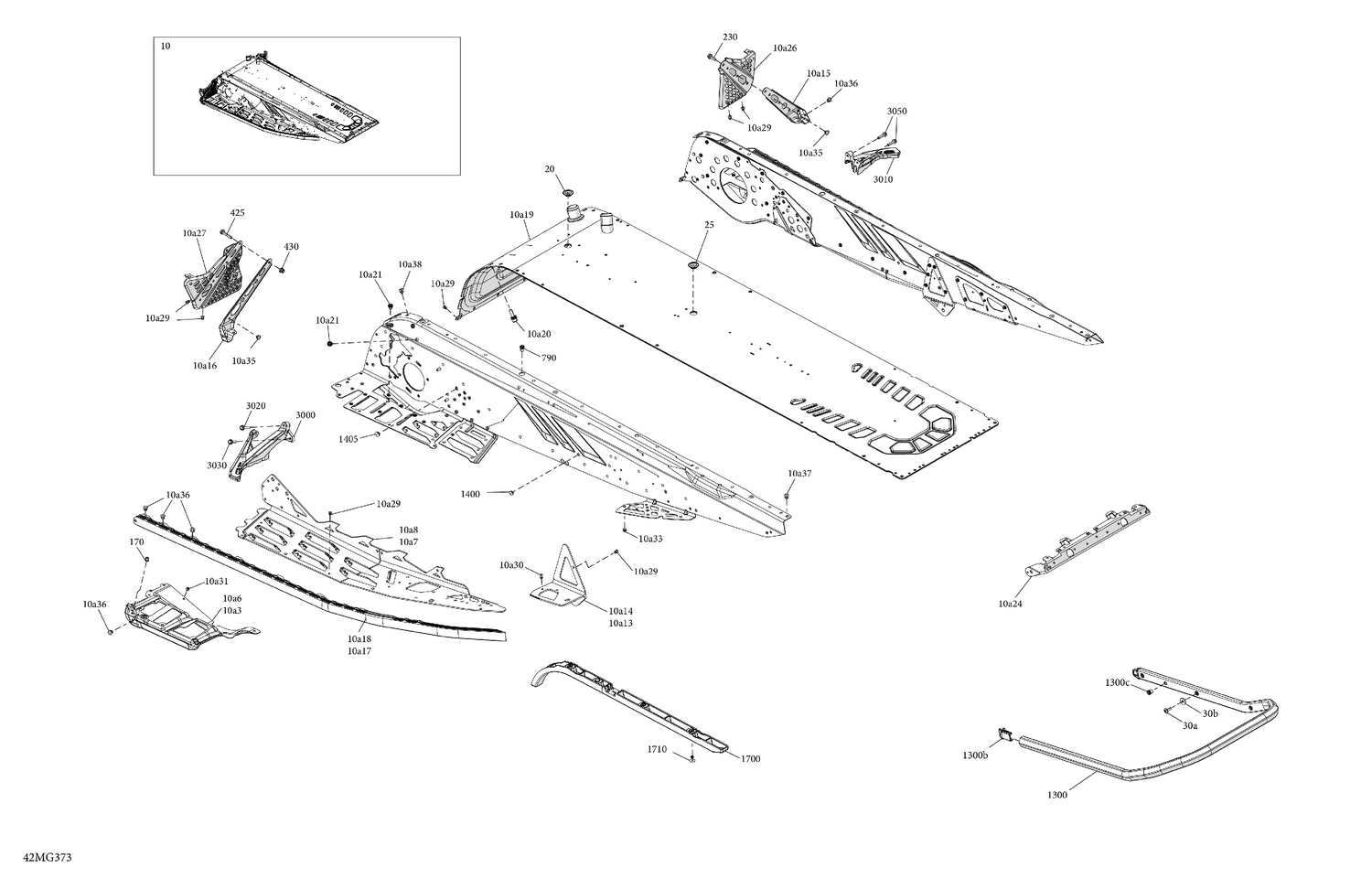

| Ref | Part Number | Description |
|---|
| 10 |
415131090 |
Deep Black, Chassis Tunnel Module 129 |
| 10a13 |
518334387 |
RH Rear Suspension Support |
| 10a14 |
518332305 |
LH Suspension Arm Anchorange |
| 10a15 |
518334507 |
Stirrup Reinforcement |
| 10a16 |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10a17 |
518329023 |
RH Roller |
| 10a18 |
518332307 |
LH Exterior Footrest Reinforcement |
| 10a19 |
518337079 |
Radiator Tunnel 129 |
| 10a20 |
250300652 |
Protruding Stud M8 x 22 |
| 10a21 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 10a24 |
518328990 |
Rear Cap |
| 10a26 |
518333006 |
RH Footrest |
| 10a27 |
518333858 |
LH Footrest |
| 10a29 |
293150312 |
Rivet Ornit 4,8 X 11,3 |
| 10a3 |
518330738 |
Deep Black, RH Footrest Reinforcement |
| 10a30 |
293150314 |
Rivet Ornit 4,8 X 14,3 |
| 10a31 |
293150313 |
Rivet Ornit 4,8 X 8,8 |
| 10a33 |
293150245 |
Henrob Rivet |
| 10a35 |
293150264 |
Rivet Ornit 6,5 X 10.5 |
| 10a36 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10a37 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 10a38 |
293150266 |
Ornit Rivet 6,5 X 14.5 |
| 10a6 |
518331523 |
Deep Black, LH Footrest Reinforcement |
| 10a7 |
518336390 |
RH Front Footrest Reinforcement |
| 10a8 |
518336389 |
LH Front Footrest Reinforcement |
| 20 |
293730052 |
Black, Plug |
| 25 |
293730052 |
Black, Plug |
| 30a |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 170 |
293450267 |
Insert M5 - 0.8 |
| 230 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 425 |
207663546 |
Hex. Flange Screw M6 x 35 |
| 430 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 790 |
293450278 |
Insert |
| 1300b |
520001612 |
Cap |
| 1300c |
293450275 |
Insert |
| 1400 |
293730047 |
Black, Dart 8 mm |
| 1405 |
293730060 |
Black, Dart 10 mm |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 3000 |
518334924 |
LH Front Stirup |
| 3010 |
518329134 |
Toe Hold |
| 3020 |
250001211 |
Hex. Flange Screw M6 X 30 |
| 3030 |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
| 3050 |
250001124 |
Hex Screw Forming M6 x 25 |
