518332305
LH Suspension Arm Anchorange

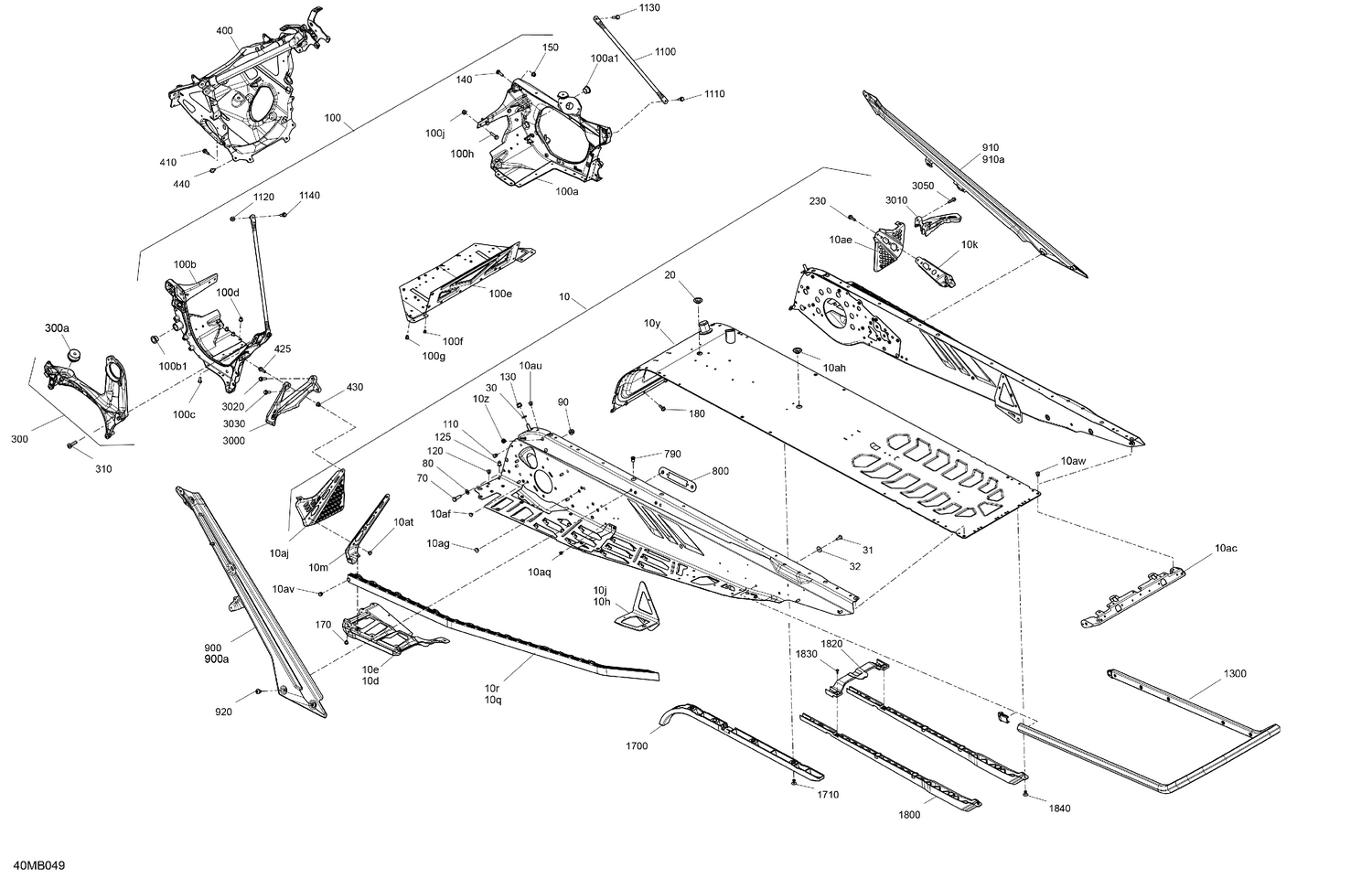

Схема сборки, где используется деталь
Used in (38 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| SKI_DOO_EN_US | 06- Frame - System | Ski-Doo / 2022 / 006 - SKI-DOO - North America - MXZ Series / 002 - MXZ 600R E-T | 10j |
| SKI_DOO_EN_US | 06- Frame - System | Ski-Doo / 2022 / 006 - SKI-DOO - North America - MXZ Series / 003 - MXZ 600R E-T | 10j |
| SKI_DOO_EN_US | 06- Frame - System | Ski-Doo / 2022 / 006 - SKI-DOO - North America - MXZ Series / 004 - MXZ 600R E-T | 10j |
| SKI_DOO_EN_US | 06- Frame - System | Ski-Doo / 2022 / 006 - SKI-DOO - North America - MXZ Series / 008 - MXZ 850 E-TE | 10j |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2023 / 014 - SKI-DOO - Europe - MXZ Series / 002 - MXZ 600R E-TEC - XR | 10q |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2023 / 014 - SKI-DOO - Europe - MXZ Series / 002 - MXZ 600R E-TEC - XR | 10r |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2023 / 014 - SKI-DOO - Europe - MXZ Series / 003 - MXZ 850 E-TEC - XRS | 10q |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2023 / 014 - SKI-DOO - Europe - MXZ Series / 003 - MXZ 850 E-TEC - XRS | 10r |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2026 / 005 - North America - MXZ Series / North America - MXZ 600R E-T | 10a9 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2026 / 005 - North America - MXZ Series / North America - MXZ 600R E-T | 10a9 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2026 / 005 - North America - MXZ Series / North America - MXZ 600R E-T | 10a9 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2026 / 005 - North America - MXZ Series / North America - MXZ 600R E-T | 10a9 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2026 / 005 - North America - MXZ Series / North America - MXZ 600R E-T | 10a9 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2026 / 005 - North America - MXZ Series / North America - MXZ 600R E-T | 10a9 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2026 / 005 - North America - MXZ Series / North America - MXZ 600R E-T | 10a14 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2026 / 005 - North America - MXZ Series / North America - MXZ 600R E-T | 10a14 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2026 / 005 - North America - MXZ Series / North America - MXZ 600R E-T | 10a14 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2026 / 005 - North America - MXZ Series / North America - MXZ 600R E-T | 10a14 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2026 / 005 - North America - MXZ Series / North America - MXZ 600R E-T | 10a14 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2026 / 005 - North America - MXZ Series / North America - MXZ 600R E-T | 10a14 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2026 / 005 - North America - MXZ Series / North America - MXZ 850 E-TE | 10a14 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2026 / 005 - North America - MXZ Series / North America - MXZ 850 E-TE | 10a14 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2026 / 014 - Europe - MXZ Series / Europe - MXZ 600R E-TEC - X-RS / Eu | 10a14 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2027 / 005 - North America - MXZ Series / North America - MXZ 600RR E- | 10a9 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2027 / 005 - North America - MXZ Series / North America - MXZ 600RR E- | 10a9 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2027 / 005 - North America - MXZ Series / North America - MXZ 600RR E- | 10a9 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2027 / 005 - North America - MXZ Series / North America - MXZ 600RR E- | 10a9 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2027 / 005 - North America - MXZ Series / North America - MXZ 600RR E- | 10a9 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2027 / 005 - North America - MXZ Series / North America - MXZ 600RR E- | 10a9 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2027 / 005 - North America - MXZ Series / North America - MXZ 600RR E- | 10a14 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2027 / 005 - North America - MXZ Series / North America - MXZ 600RR E- | 10a14 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2027 / 005 - North America - MXZ Series / North America - MXZ 600RR E- | 10a14 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2027 / 005 - North America - MXZ Series / North America - MXZ 600RR E- | 10a14 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2027 / 005 - North America - MXZ Series / North America - MXZ 600RR E- | 10a14 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2027 / 005 - North America - MXZ Series / North America - MXZ 600RR E- | 10a14 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2027 / 005 - North America - MXZ Series / North America - MXZ 850 E-TE | 10a14 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2027 / 005 - North America - MXZ Series / North America - MXZ 850 E-TE | 10a14 |
| SKI_DOO_EN_US | 06- Frame - System - Rear Section | Ski-Doo / 2027 / 014 - Europe - MXZ Series / Europe - MXZ 600RR E-TEC - X-RS / E | 10a14 |
