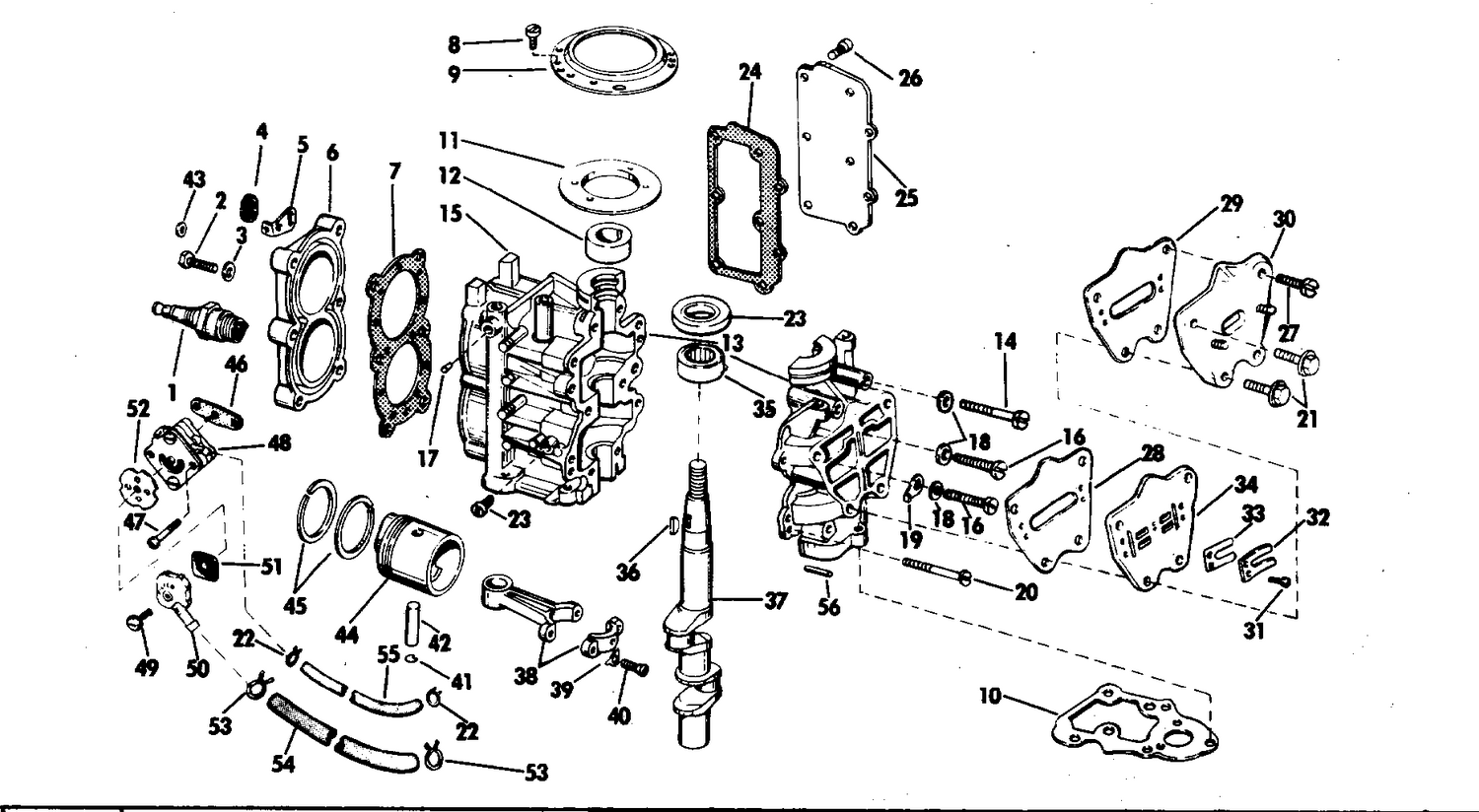

| Ref | Part Number | Description |
|---|
| 1 |
0378101 |
SPARK PLUB, Champion j4j |
| 1 |
0378320 |
SPARK PLUG, AC - M42K |
| 2 |
0306418 |
VIS, ancrage |
| 3 |
0329241 |
RONDELLE This part replaces 0306482. |
| 4 |
0300454 |
GROMMER, Ignition lead |
| 5 |
0300455 |
ANCHOR, Ign lead |
| 6 |
0319336 |
CYLINDER HEAD This part replaces 0314779. |
| 7 |
0203130 |
GASKET, Cylinder head |
| 8 |
0332070 |
SCREW, Retaining plate This part replaces 0304442. |
| 9 |
0303278 |
SUPORT, Armature plate |
| 10 |
0314850 |
GASKET |
| 11 |
0303277 |
RETAINING RING |
| 12 |
0510167 |
CAM, Magneto |
| 13 |
0384761 |
CYLINDER & CRANKCASE ASSEMBLY |
| 14 |
0328699 |
LEVER, Spark control This part replaces 0132942. |
| 16 |
0302431 |
SCREW, Center |
| 18 |
0300399 |
WASHER |
| 19 |
0316707 |
DEFLECTOR |
| 20 |
0306408 |
SCREW |
| 21 |
0314610 |
SCREW |
| 22 |
0302647 |
CLAMP |
| 23 |
0315256 |
SEAL, Crankshaaft |
| 24 |
0203171 |
GASKET, Cover plate |
| 25 |
0323263 |
PLATE, EXH COVER This part replaces 0203172. |
| 27 |
0314951 |
SCREEN, Mfld. to c'case |
| 28 |
0314918 |
GASKET |
| 29 |
0314919 |
GASKET |
| 30 |
0388941 |
MANIFOLD, Intake This part replaces 0383436. |
| 32 |
0315000 |
PLATE, Leaf back-up |
| 34 |
0314920 |
PLATE, Leaf |
| 35 |
0397586 |
BEARING ASSY., Needle This part replaces 0383278. |
| 36 |
0120395 |
KEY |
| 37 |
0314796 |
CRANKSHAFT |
| 38 |
0383459 |
CONNECTING ROD ASSY |
| 39 |
0307578 |
LOCK PLATE |
| 40 |
0307582 |
SCREW |
| 42 |
0203151 |
WRIST PIN |
| 44 |
0383236 |
PISTON ASSEMBLY |
| 44 |
0384311 |
PISTON ASSEMBLY LESS RINGS, .030 o.s. |
| 45 |
0383920 |
RING SET, |
| 45 |
0384312 |
RING SET , .030 o. S |
| 46 |
0303615 |
GASKET |
| 47 |
0309654 |
SCREW |
| 48 |
0388684 |
FUEL PUMP ASSY. This part replaces 0381815. |
| 54 |
0552215 |
HOSE, Conn.to pump |
| 55 |
0302657 |
HOSE, Pump to carb |
| 0383466 |
0383466 |
LEAF PLATE ASSEMBLY |
