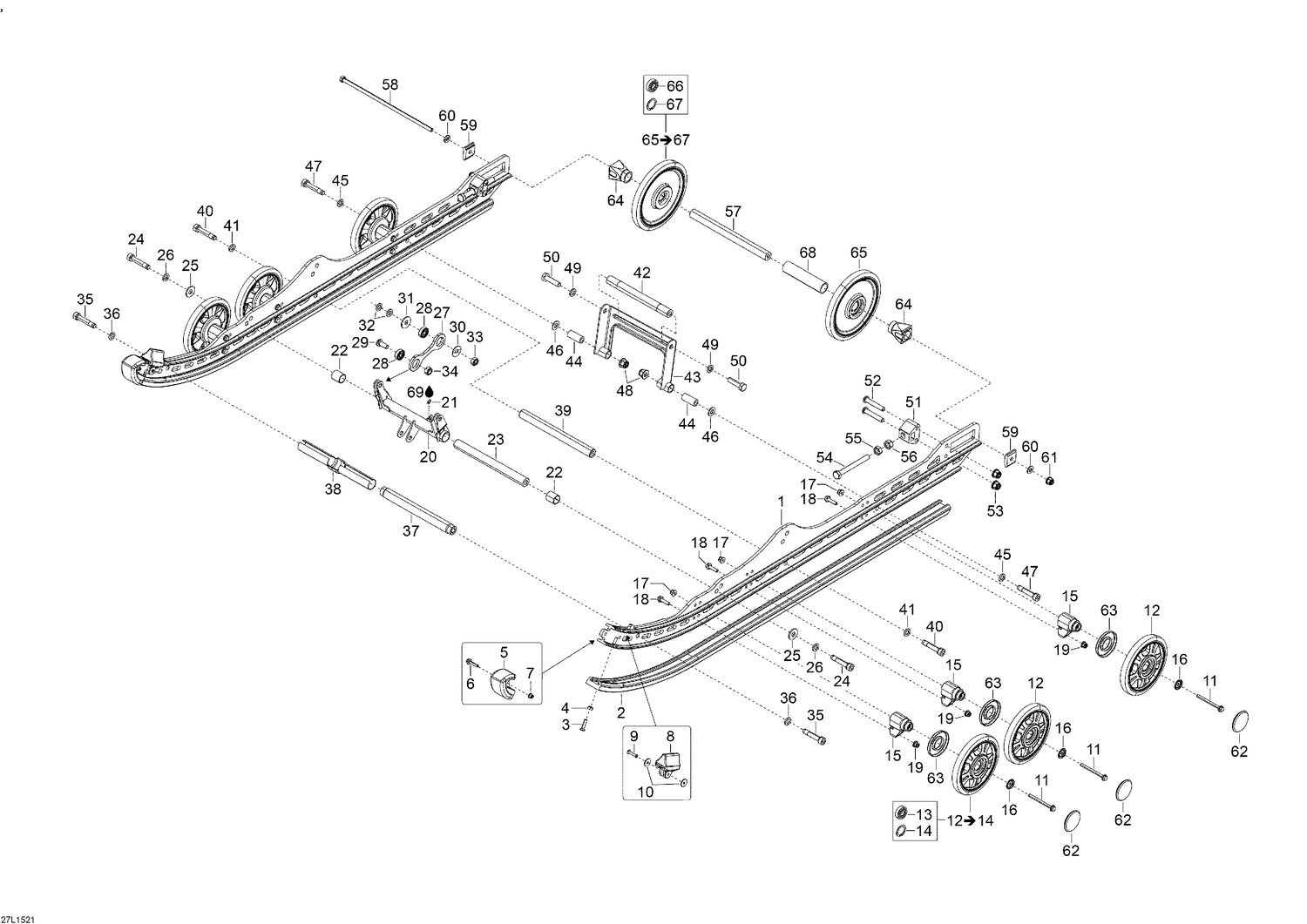

08- Rear Suspension
Parts (66)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503192792 | Runner |
| 2 | 503192618 | Slider Shoe |
| 3 | 208562531 | Phillips Screw M6 X 25 |
| 4 | 232561434 | Elastic Stop Nut M6 |
| 5 | 503192299 | Runner Protector |
| 6 | 207652544 | Hex. Flange Screw M5 X 25 |
| 7 | 233251434 | Flanged Elastic Nut M5 |
| 8 | 503192106 | Rubber Stopper |
| 9 | 293150142 | Pop Rivet 3/16 |
| 10 | 503191273 | Washer |
| 11 | 207667056 | Hex. Flange Screw M6 x 70 |
| 13 | 503190396 | Ball Bearing |
| 14 | Not | Available As Spare Part - Circlip |
| 15 | 503193894 | Casted Support |
| 16 | 503191820 | Wheel Cup M6 |
| 17 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 18 | 207662556 | Hex. Flange Screw M6 X 25 |
| 19 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 20 | 503192518 | Swing Weld |
| 21 | 408200700 | Grease Fitting |
| 22 | 31024 | Cushion |
| 23 | 605355800 | Shaft |
| 24 | 205505587 | Socket HD Screw M10 x 55 |
| 25 | 512056700 | Lock Washer |
| 26 | 20068 | Lock Washer |
| 27 | 605254159 | Connecting Rod |
| 28 | 605631003 | Ball Bearing |
| 29 | 205402546 | Socket Screw BN.HD.ISO.7380 |
| 30 | 25004 | Cup Spring |
| 31 | 234002600 | Flat Washer 10 mm, Stainless |
| 32 | 234001410 | Flat Washer 10 mm |
| 33 | 233401414 | Lock Spring Nut M10 |
| 34 | 232500416 | Elastic Stop Nut M10 |
| 35 | 205505044 | Socket Head Screw M10 x 50 |
| 36 | 234001410 | Flat Washer 10 mm |
| 37 | 605353958 | Shaft |
| 38 | 605355096 | Limiter Strap Retainer |
| 39 | 5343471 | Shaft |
| 40 | 205505044 | Socket Head Screw M10 x 50 |
| 41 | 234001410 | Flat Washer 10 mm |
| 42 | 605355118 | Shaft |
| 43 | 503192571 | Rear Swing |
| 44 | 503192341 | Shaft |
| 45 | 234001410 | Flat Washer 10 mm |
| 46 | 234001410 | Flat Washer 10 mm |
| 47 | 205006044 | Socket HD Screw M10 x 60 |
| 48 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 49 | 234001410 | Flat Washer 10 mm |
| 50 | 207204044 | Hex Cap Screw Din.931 S.grip |
| 51 | 5341633 | Tensioner Housing |
| 52 | 205484546 | Socket Head Screw M8 x 45 |
| 53 | 233281414 | Hex. Flange Elastic Nut M8 |
| 54 | 230100044 | HEX. SCREW M10 X 100 - Call your local BRP dealership |
| 55 | 232006414 | Nut M10 |
| 56 | 232500416 | Elastic Stop Nut M10 |
| 57 | 503194105 | Axle |
| 58 | 503194069 | Bolt M8 |
| 59 | 503194412 | Axle Slider This part replaces 503194067. |
| 60 | 250200159 | Conical Spring Washer |
| 61 | 233281466 | Elastic Flang Nut M8 |
| 62 | 503192771 | Black, Wheel Cap |
| 63 | 503190434 | Labyrinth Seal |
| 64 | 503190428 | Rear Wheel Spacer |
| 66 | 503190396 | Ball Bearing |
| 67 | 415129371 | Retaining Ring |
