205505587
Screw M10 x 55

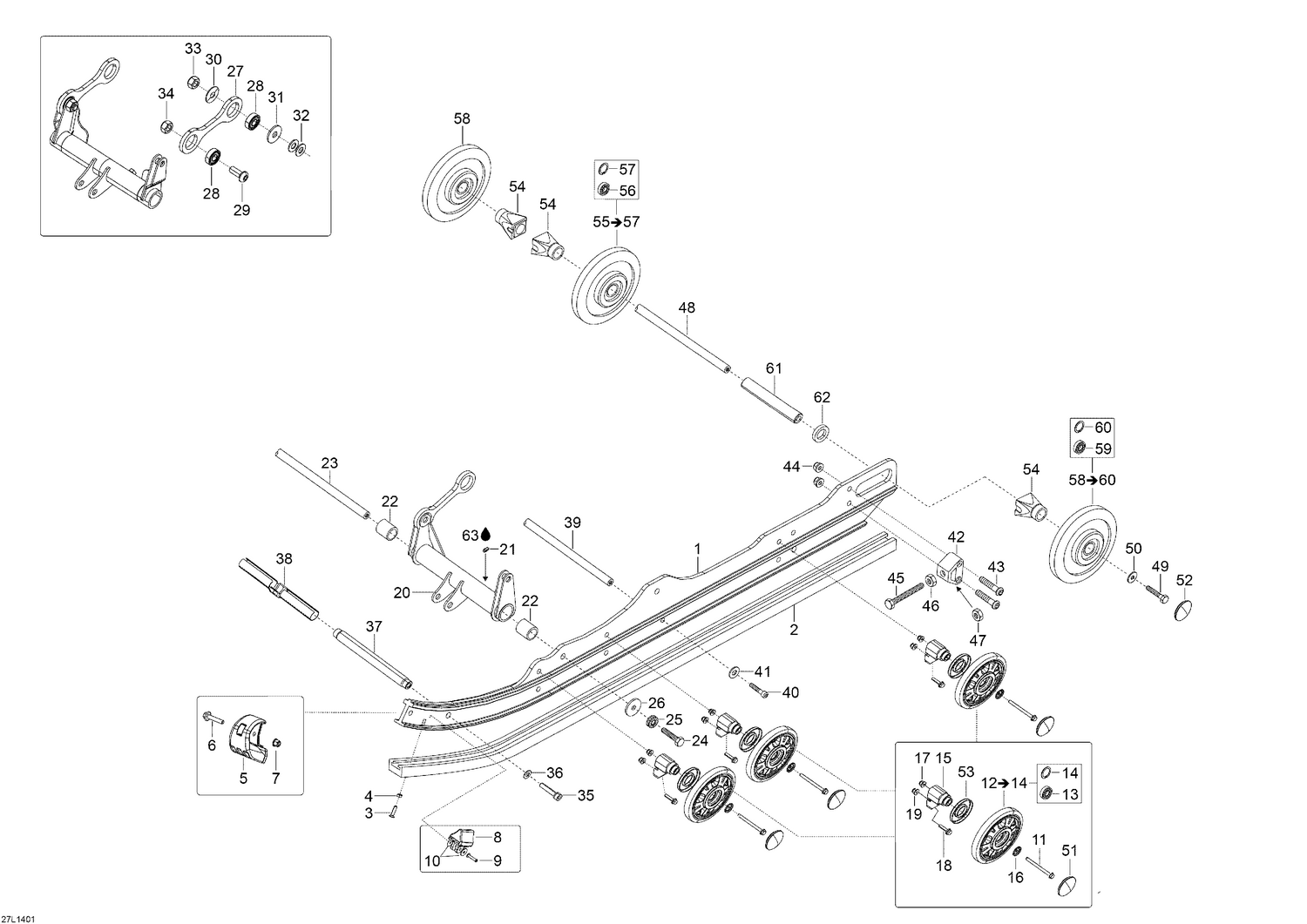

Схема сборки, где используется деталь
Used in (15 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| LNX_EN_US | 08- Rear Suspension | Lynx / 2014 / Adventure / Adventure LX 600 ACE, 2014 000LREA00 / 08- Rear Suspen | 24 |
| LNX_EN_US | 08- Rear Suspension | Lynx / 2014 / BoonDocker / BoonDocker 600 E-TEC, 2014 000SDEB00 000SDEC00 000SDE | 27 |
| LNX_EN_US | 08- Rear Suspension (3700) | Lynx / 2014 / BoonDocker / BoonDocker 800R E-TEC, 2014 000SEEA00 000SEEC00 000SE | 27 |
| LNX_EN_US | 08- Rear Suspension (3900) | Lynx / 2014 / BoonDocker / BoonDocker 800R E-TEC, 2014 000SEEA00 000SEEC00 000SE | 27 |
| LNX_EN_US | 08- Rear Suspension | Lynx / 2014 / Ranger / 49 Ranger 600 ACE, 2014 000FDEA00 / 08- Rear Suspension | 33 |
| LNX_EN_US | 08- Rear Suspension | Lynx / 2014 / Ranger / 49 Ranger 600 E-TEC, 2014 000FCEA00 / 08- Rear Suspension | 33 |
| LNX_EN_US | 08- Rear Suspension | Lynx / 2014 / Rave / Rave 550, 2014 000STEB00 / 08- Rear Suspension | 24 |
| LNX_EN_US | 08- Rear Suspension | Lynx / 2014 / Rave / Rave 600 ACE, 2014 000LRED00 / 08- Rear Suspension | 24 |
| LNX_EN_US | 08- Rear Suspension | Lynx / 2014 / Rave / Rave RE 600 E-TEC, 2014 000SCEA00 000SCEB00 000SCEC00 000SC | 24 |
| LNX_EN_US | 08- Rear Suspension | Lynx / 2014 / Rave / Rave RS 600, 2014 000SFEB00 / 08- Rear Suspension | 63 |
| LNX_EN_US | 08- Rear Suspension | Lynx / 2014 / Rave / Rave RS 600, 2014 000SFEB00 / 08- Rear Suspension | 18 |
| LNX_EN_US | 08- Rear Suspension | Lynx / 2015 / BoonDocker / BoonDocker 600 E-TEC, 2015 000SDFB00 000SDFC00 000SDF | 27 |
| LNX_EN_US | 08- Rear Suspension | Lynx / 2015 / Rave / Rave 600 ACE, 2015 000LRFD00 / 08- Rear Suspension | 24 |
| LNX_EN_US | 08- Rear Suspension | Lynx / 2015 / Rave / Rave 600 E-TEC, 2015 000LRFC00 / 08- Rear Suspension | 24 |
| LNX_EN_US | 08- Rear Suspension | Lynx / 2015 / Xtrim / Xtrim 600 ACE, 2015 000LRFB00 / 08- Rear Suspension | 27 |
