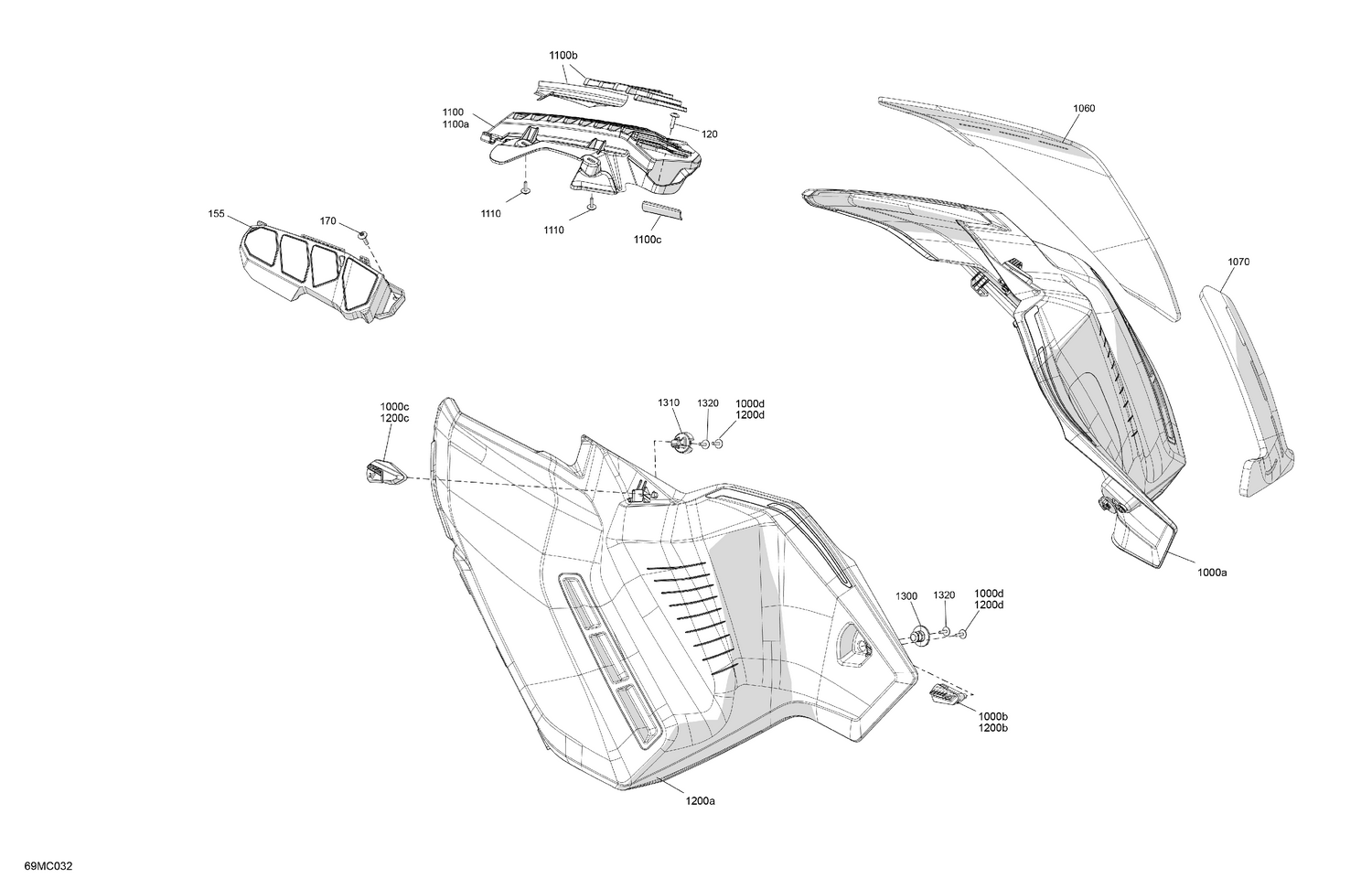

07- Body - Side Panels
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 120 | 250000528 | Torx Screw M5 X 20 |
| 155 | 517306690 | LH Hood Trim This part replaces 517308953. |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 1000a | 517306748 | Deep Black, RH Panel |
| 1000b | 517305773 | RH Rear Latch |
| 1000c | 517305979 | RH Front Latch |
| 1000d | 250000725 | Screw M4 X 16 |
| 1060 | 517306843 | RH Front Panel Foam |
| 1070 | 517306845 | RH Rear Panel Foam |
| 1100a | XXX | Not Available As Spare Parts |
| 1100b | 517308274 | Foil Kit |
| 1100c | 517307700 | Rubber Sheet |
| 1110 | 250000725 | Screw M4 X 16 |
| 1200a | 861805591 | Deep Black, LH Panel This part replaces 517306750. |
| 1200b | 517305774 | LH Rear Latch |
| 1200c | 517305980 | LH Front Latch |
| 1200d | 250000725 | Screw M4 X 16 |
| 1300 | 517305985 | Rear Stud |
| 1310 | 517305988 | Front Stud |
