Home / BRP / Part 517308274

517308274

Foil Kit

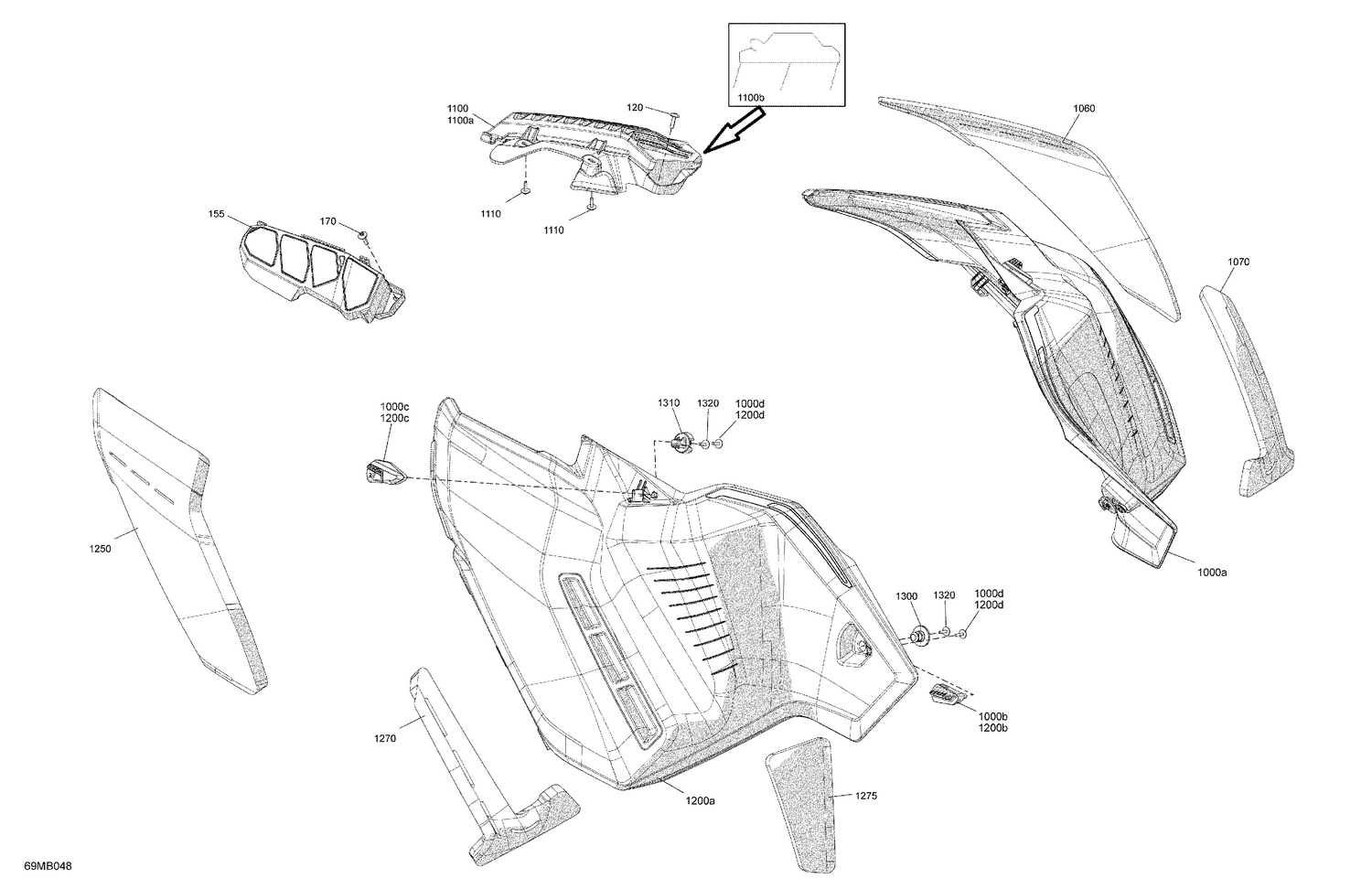

Assembly diagram
Схема сборки, где используется деталь

Used in (6 assemblies)

BrandAssemblyPathRef
SKI_DOO_EN_US 07- Body - Side Panels Ski-Doo / 2022 / 002 - SKI-DOO - North America - EXPEDITION Series / 001 - EXPED 1100b
SKI_DOO_EN_US 07- Body - Side Panels Ski-Doo / 2022 / 008 - SKI-DOO - North America - SKANDIC Series / 001 - SKANDIC 1100b
SKI_DOO_EN_US 07- Body - Side Panels Ski-Doo / 2022 / 008 - SKI-DOO - North America - SKANDIC Series / 002 - SKANDIC 1100b
SKI_DOO_EN_US 07- Body - Side Panels Ski-Doo / 2023 / 002 - SKI-DOO - North America - EXPEDITION Series / 001 - EXPED 1100b
SKI_DOO_EN_US 07- Body - Side Panels Ski-Doo / 2023 / 007 - SKI-DOO - North America - SKANDIC Series / 001 - SKANDIC 1100b
SKI_DOO_EN_US 07- Body - Side Panels Ski-Doo / 2023 / 007 - SKI-DOO - North America - SKANDIC Series / 003 - SKANDIC 1100b
