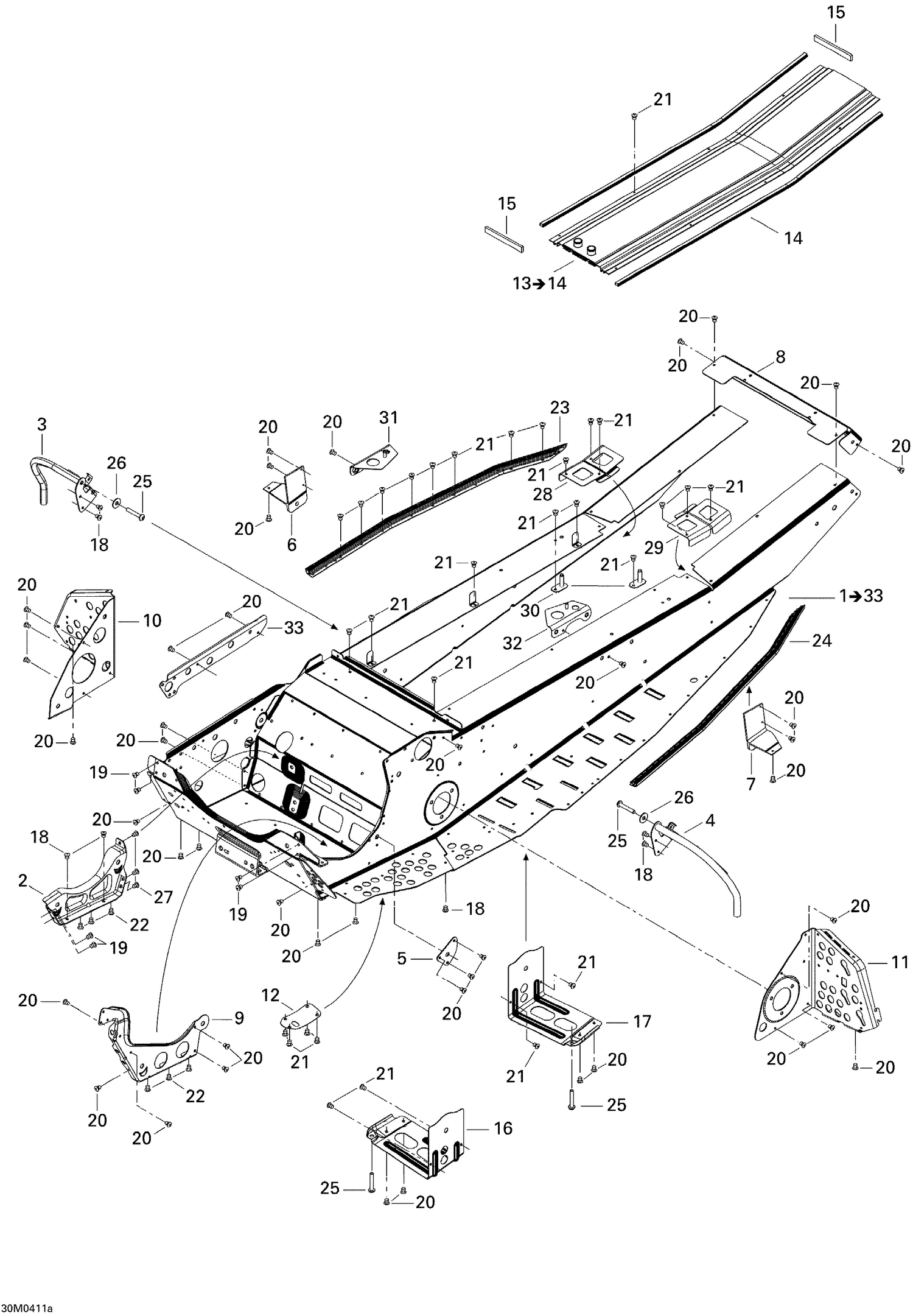

09- Frame (Adrenaline_X)
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 518323346 | ENGINE SUPPORT, BLACK - Call your local BRP dealership |
| 3 | 518324162 | RH TOE HOLD SUPPORT - Call your local BRP dealership |
| 4 | 518324163 | LH TOE HOLD SUPPORT - Call your local BRP dealership |
| 5 | 518323507 | OUTER REINFORCEMENT - Call your local BRP dealership |
| 6 | 518323572 | RH Slide Bracket |
| 7 | 518323573 | LH SLIDE BRACKET - Call your local BRP dealership |
| 8 | 518323835 | Rear Cap |
| 9 | 518323241 | INNER REINFORCEMENT, BLACK - Call your local BRP dealership |
| 10 | 518323805 | RH Footrest Reinforcement |
| 11 | 518323765 | LH Footrest Reinforcement |
| 12 | 518324169 | PLATE - Call your local BRP dealership |
| 14 | 415012300 | RADIATOR PROTECTOR - Call your local BRP dealership |
| 15 | 219704364 | Neoprene Seal (1PAC=3M) |
| 16 | 518323753 | RH Reinforcement, Black |
| 17 | 518323754 | LH Reinforcement, Black |
| 18 | 390909200 | Avex Rivet |
| 19 | 390909100 | Avex Rivet |
| 20 | 390402200 | Pop Rivet 3/16" |
| 21 | 390402400 | Pop Rivet 3/16" |
| 22 | 390910300 | HENROB RIVET - Call your local BRP dealership |
| 23 | 518323551 | RH Roller |
| 24 | 518323552 | LH Roller |
| 25 | Not | Available As Spare Part - Socket head screw M8 x 20 (Scotch grip) |
| 26 | 234082410 | Flat Washer 8 mm |
| 27 | 293150096 | Hemlock Rivet, 6.5 mm |
| 28 | 518323919 | RH Frame Reinforcement |
| 29 | 518323920 | LH Frame Reinforcement |
| 30 | 518322791 | Tank Bracket |
| 31 | 518323336 | RH Frame Reinforcement, Black |
| 32 | 518323337 | LH Frame Reinforcement, Black |
