518323765
LH Footrest Reinforcement

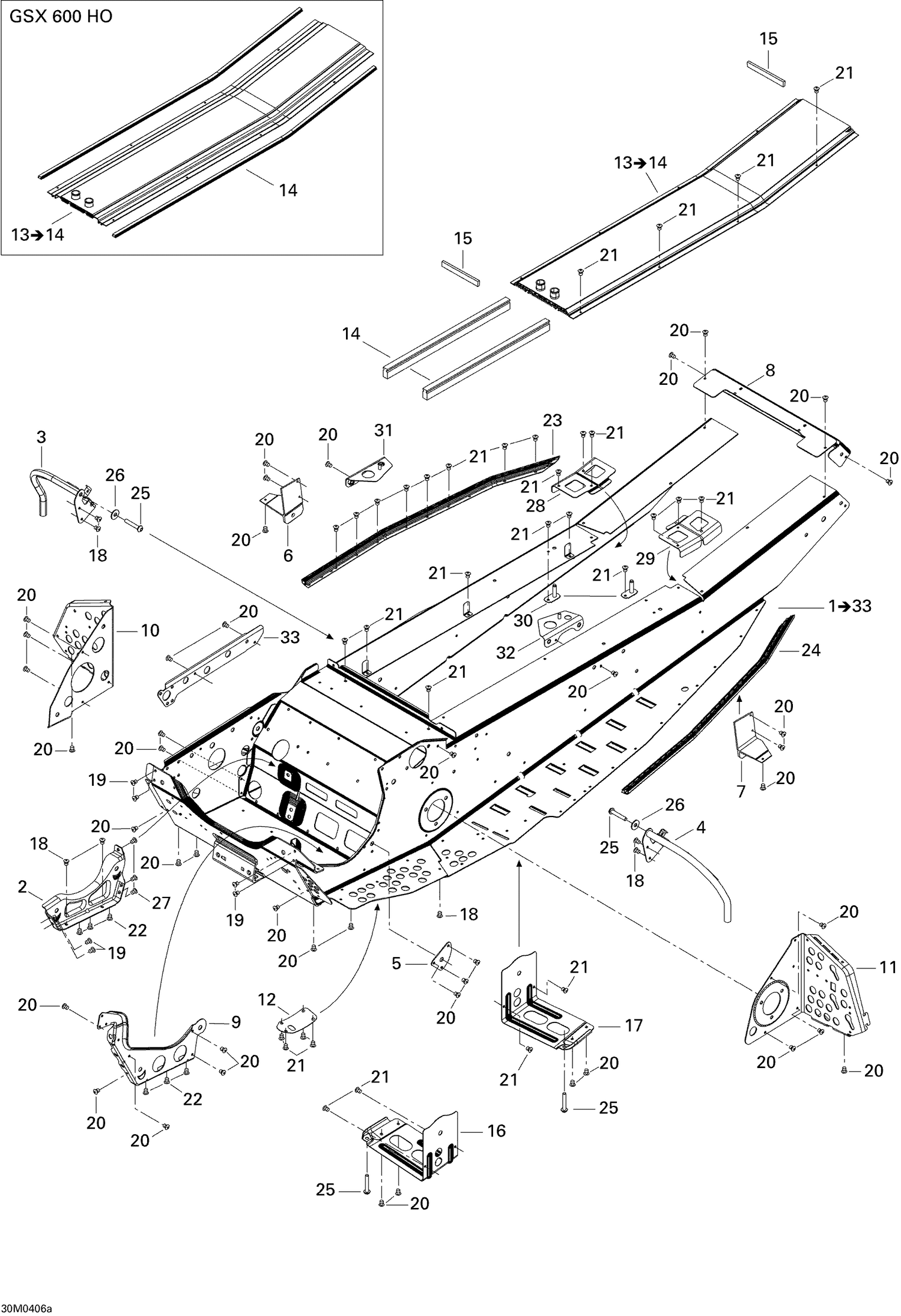

Схема сборки, где используется деталь
Used in (8 assemblies)
| Brand | Assembly | Path | Ref |
|---|---|---|---|
| SKI_DOO_EN_US | 09- Frame | Ski-Doo / 2004 / GSX / GSX 500SS, 2004 / 09- Frame | 11 |
| SKI_DOO_EN_US | 09- Frame | Ski-Doo / 2004 / GSX / GSX 600 HO SDI, 2004 / 09- Frame | 11 |
| SKI_DOO_EN_US | 09- Frame | Ski-Doo / 2004 / MX Z / MX Z 500SS Trail/Adrenaline, 2004 / 09- Frame | 11 |
| SKI_DOO_EN_US | 09- Frame | Ski-Doo / 2004 / MX Z / MX Z 600 HO Renegade/Renegade X, 2004 / 09- Frame | 11 |
| SKI_DOO_EN_US | 09- Frame (Adrenaline_X) | Ski-Doo / 2004 / MX Z / MX Z 600 HO SDI, 2004 / 09- Frame (Adrenaline_X) | 11 |
| SKI_DOO_EN_US | 09- Frame (Renegade X) | Ski-Doo / 2004 / MX Z / MX Z 600 HO SDI, 2004 / 09- Frame (Renegade X) | 11 |
| SKI_DOO_EN_US | 09- Frame | Ski-Doo / 2004 / MX Z / MX Z X 440 Racing, 2004 / 09- Frame | 12 |
| SKI_DOO_EN_US | 09- Frame | Ski-Doo / 2005 / MX Z / MX Z 600 HO SDI Renegade, Early Intro, 2005 / 09- Frame | 11 |
