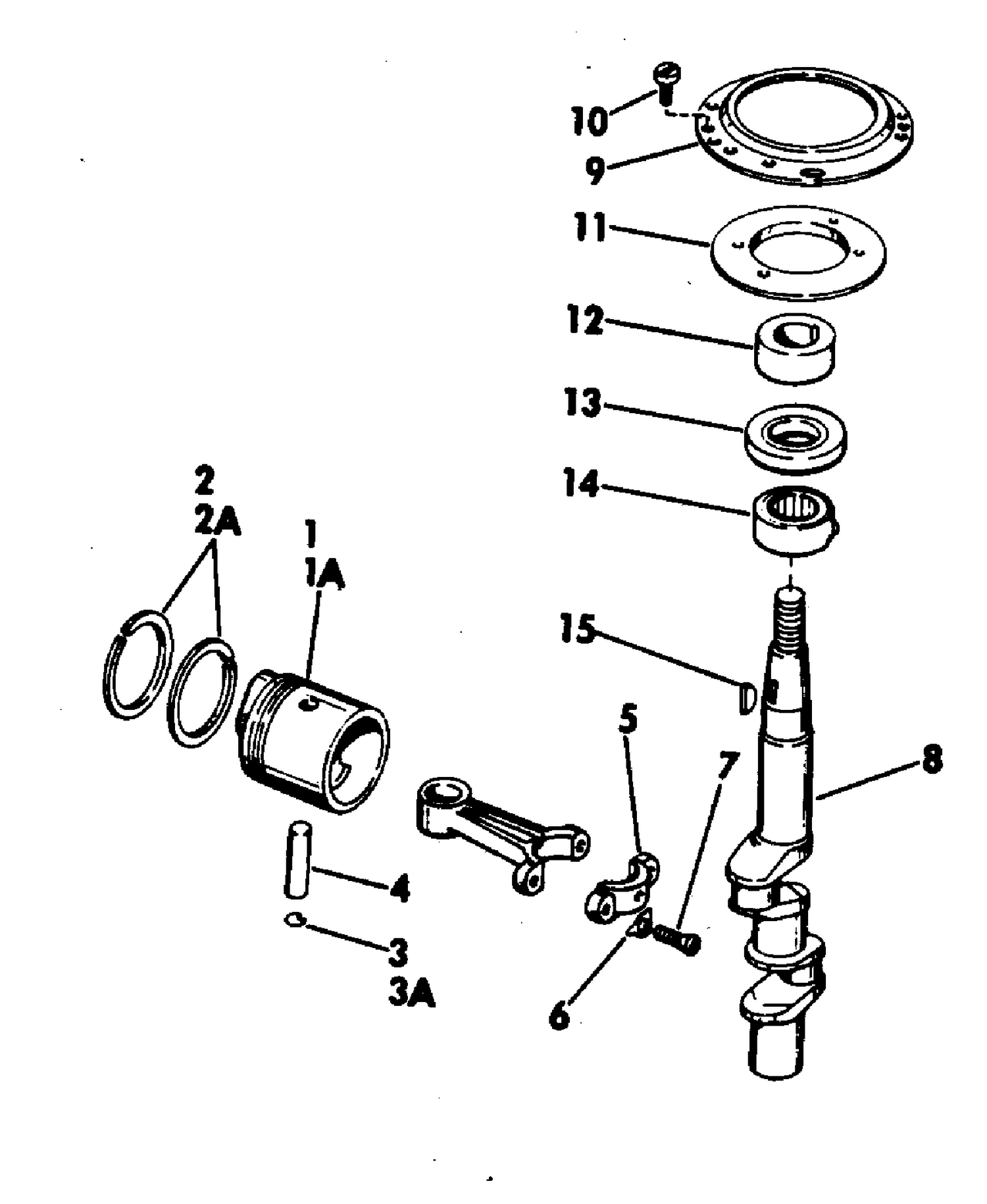

CRANKSHAFT & PISTON
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0384651 | PISTON ASSY., Std |
| 1A | 0384666 | PISOTN ASSY., 030 O.S. |
| 2 | 0383920 | RING SET, |
| 2A | 0384312 | RING SET , .030 o. S |
| 4 | 0203151 | WRIST PIN |
| 5 | 0383459 | CONNECTING ROD ASSY |
| 6 | 0307578 | LOCK PLATE |
| 7 | 0307582 | SCREW |
| 8 | 0314796 | CRANKSHAFT |
| 9 | 0303278 | SUPORT, Armature plate |
| 10 | 0332070 | SCREW, Retaining plate This part replaces 0304442. |
| 11 | 0303277 | RETAINING RING |
| 12 | 0510167 | CAM, Magneto |
| 13 | 0315256 | SEAL, Crankshaaft |
| 14 | 0397586 | BEARING ASSY., Needle This part replaces 0383278. |
