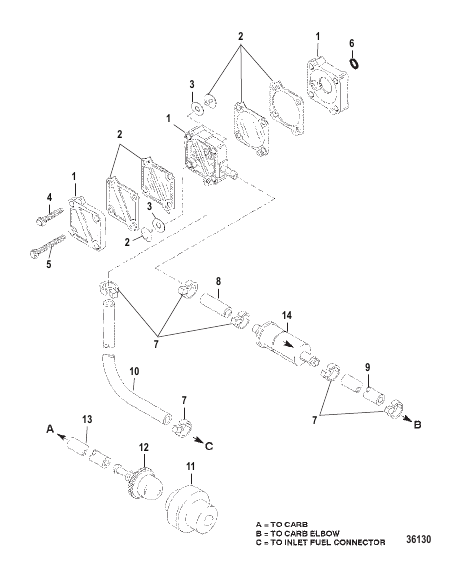

FUEL SYSTEM
Parts (16)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 809516A1 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка GASKET SET Powerhead |
1 | discontinued |
| - | 819240A3 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | superseded |
| 1 | 8192131 |
НАСОС В СБОРЕ Топливо PUMP ASSEMBLY Fuel |
1 | discontinued |
| 10 | 819398T |
РУКАВ (18.00 IN. BULK) (CUT 10.500 IN.) HOSE (18.00 IN. BULK) (CUT 10.500 IN.) |
1 | |
| 11 | 851934 |
КРЫШКА Подкачивающая груша COVER Primer Bulb |
1 | discontinued |
| 12 | F681046 |
ЛАМПА Устройство для заливки топлива BULB Primer |
1 | |
| 13 | 819398T |
РУКАВ (18.00 IN. BULK) (CUT 11.500 IN.) HOSE (18.00 IN. BULK) (CUT 11.500 IN.) |
1 | |
| 14 | 816296 |
ФИЛЬТР Топливо FILTER Fuel |
1 | superseded |
| 2 | 820748A1 |
КОМПЛЕКТ ПРОКЛАДОК/ДИАФРАГМ GASKET/DIAPHRAGM KIT |
1 | discontinued |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Washer NOT SOLD SEPARATE Washer |
2 | |
| 4 | 820749 |
ВИНТ (#10-24 X 1.250) SCREW (#10-24 X 1.250) |
2 | discontinued |
| 5 | 819499 |
ВИНТ (#10-24 X 1.625) SCREW (#10-24 X 1.625) |
2 | discontinued |
| 6 | 38933 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 7 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
AR | |
| 8 | 819398T |
РУКАВ (18.00 IN. BULK) (CUT 1.625 IN.) HOSE (18.00 IN. BULK) (CUT 1.625 IN.) |
1 | |
| 9 | 819398T |
РУКАВ (18.00 IN. BULK) (CUT 3.125 IN.) HOSE (18.00 IN. BULK) (CUT 3.125 IN.) |
1 |
