| # | Part Number | Description | Qty | Status |
|---|
| - |
FK10352 |
GASKET SET Carburetor
|
1 |
|
| - |
809449A1 |
REPAIR KIT Carburetor
|
1 |
|
| - |
809516A1 |
GASKET SET Powerhead
|
1 |
disc.
|
| - |
819240A3 |
POWERHEAD ASSEMBLY
|
1 |
superseded
|
| 1 |
852551T1 |

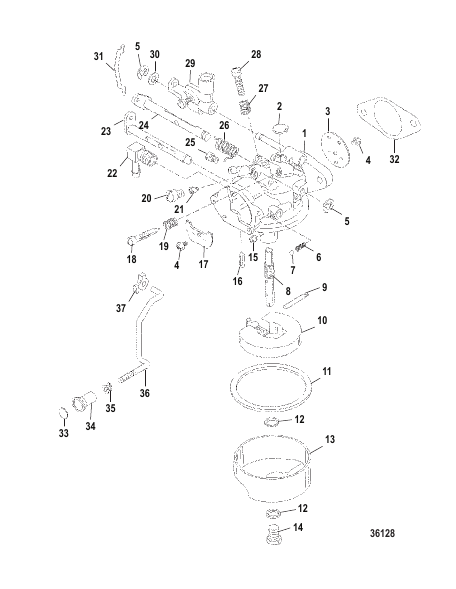

CARBURETOR (FO-3D)
|
1 |
disc.
|
| 10 |
F10346 |
FLOAT Fuel Bowl
|
1 |
superseded
|
| 11 |
FO15623 |
GASKET
|
1 |
|
| 12 |
FO2510 |
GASKET Fuel Bowl
|
2 |
|
| 13 |
FO15366 |
BOWL Fuel
|
1 |
|
| 14 |
5128 |
SCREW
|
1 |
disc.
|
| 15 |
809448 |
JET Main (.058) (0 - 2500 FT.)
|
1 |
disc.
|
| 15 |
5213 |
JET Main (.056) (2500 - 5000 FT.)
|
OPT |
|
| 15 |
5225 |
JET Main (.054) (5000 - 7500 FT.)
|
OPT |
|
| 15 |
6359 |
JET (.052) (7500 - 10000 FT.)
|
OPT |
|
| 16 |
F10265 |
NEEDLE Inlet (NOTE: DO NOT REMOVE INLET SEAT)
|
1 |
|
| 17 |
F10344 |
SHUTTER Choke
|
1 |
disc.
|
| 18 |
F10268 |
SCREW
|
1 |
|
| 19 |
27160 |
SPRING
|
1 |
|
| 2 |
FO16128 |
PLUG
|
1 |
|
| 20 |
F10275 |
SCREW
|
1 |
|
| 21 |
809625 |
JET (.046)-THROTTLE
|
1 |
disc.
|
| 22 |
854005 |
ELBOW Fuel
|
1 |
disc.
|
| 23 |
809440 |
SHAFT AND LEVER Choke
|
1 |
disc.
|
| 24 |
809439 |
SHAFT AND LEVER Throttle
|
1 |
disc.
|
| 25 |
5225 |
JET Main (.054) IDLE AIR BLEED
|
1 |
|
| 26 |
F10350 |
SPRING Throttle Shaft
|
1 |
|
| 27 |
809445 |
SPRING Idle Speed
|
1 |
disc.
|
| 28 |
809444 |
SCREW Idle Speed
|
1 |
disc.
|
| 29 |
F10290 |
LINKAGE Throttle
|
1 |
disc.
|
| 3 |
809442 |
SHUTTER Throttle
|
1 |
disc.
|
| 30 |
F10242 |
WASHER
|
1 |
disc.
|
| 31 |
809443 |
WIRE Throttle Shaft
|
1 |
disc.
|
| 32 |
F715906 |
GASKET Carburetor Mount
|
1 |
|
| 33 |
F681677 |
INSERT Choke Rod
|
1 |
disc.
|
| 34 |
F286547 |
KNOB Choke
|
1 |
disc.
|
| 35 |
F197319 |
BUSHING
|
1 |
disc.
|
| 36 |
819154 |
ROD Choke
|
1 |
disc.
|
| 37 |
830569 |
RETAINER Choke Rod
|
1 |
disc.
|
| 4 |
809441 |
SCREW Shutters
|
2 |
|
| 5 |
809446 |
E-RING Throttle Linkage
|
2 |
disc.
|
| 6 |
FO8805 |
SPRING Choke Friction
|
1 |
disc.
|
| 7 |
FO4784 |
BALL
|
1 |
disc.
|
| 8 |
809624 |
NOZZLE Main
|
1 |
disc.
|
| 9 |
FO13944 |
PIN
|
1 |
|
