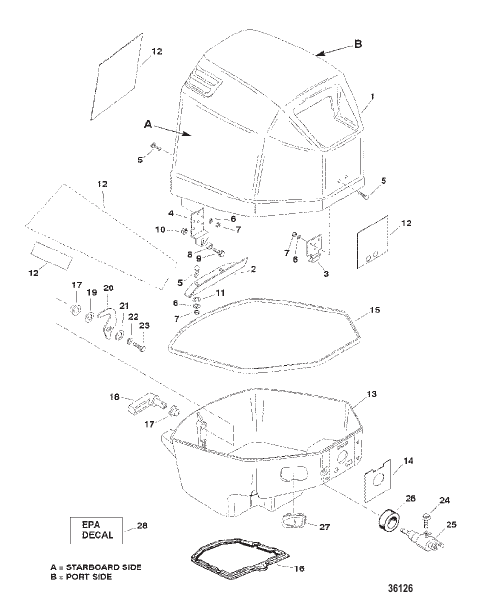

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
819135A5 |
TOP COWL ASSEMBLY (WITHOUT DECALS) (MERCURY)
|
1 |
disc.
|
| 1 |
819135A6 |
TOP COWL ASSEMBLY (WITHOUT DECALS) (MARINER)
|
1 |
disc.
|
| 10 |
814101 |
NUT (.250-20) Stainless Steel
|
1 |
superseded
|
| 11 |
F8155 |
WASHER
|
2 |
disc.
|
| 12 |
854206A1 |
DECAL SET Top Cowl (MERCURY) (SHIFT-FRONT-REAR-PORT-STBD)
|
1 |
disc.
|
| 12 |
854207A1 |
DECAL SET Top Cowl (MARINER) (SHIFT-FRONT-REAR-PORT-STBD)
|
1 |
disc.
|
| 13 |
835495A4 |
BOTTOM COWL ASSEMBLY (MERCURY)
|
1 |
disc.
|
| 13 |
835495A5 |
BOTTOM COWL ASSEMBLY (MARINER)
|
1 |
disc.
|
| 14 |
8192814 |
PLATE Front
|
1 |
disc.
|
| 15 |
F392756 |
SEAL Top Of Bottom Cowl (4.075 FT. BULK) (CUT 3.783 FT.)
|
1 |
disc.
|
| 16 |
827895 |
SEAL Bottom Cowl
|
1 |
disc.
|
| 17 |
812707 |
BUSHING
|
2 |
|
| 18 |
854004A1 |
HANDLE ASSEMBLY Cowl Latch (MERCURY)
|
1 |
disc.
|
| 18 |
854004A2 |
HANDLE ASSEMBLY Cowl Latch (MARINER)
|
1 |
disc.
|
| 19 |
F2047 |
WASHER Wave
|
1 |
|
| 2 |
819447 |
BAFFLE
|
1 |
disc.
|
| 20 |
F481777 |
CAM Latch Shaft
|
1 |
superseded
|
| 21 |
71055 |
WASHER
|
1 |
|
| 22 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
1 |
|
| 23 |
28635 |
SCREW (.250-20 x .620) Stainless Steel
|
1 |
|
| 24 |
40011128 |
SCREW (M6 x 20) Stainless Steel
|
1 |
superseded
|
| 25 |
15781A5 |
CONNECTOR Fuel - Brass
|
1 |
superseded
|
| 26 |
18202 |
GROMMET
|
1 |
|
| 27 |
935271 |
GROMMET Control Cable
|
1 |
superseded
|
| 28 |
85557717 |
DECAL EPA Label Information (APPLIED TO THE TOP INSIDE OF THE TOP COWL)
|
1 |
superseded
|
| 3 |
819130 |
BRACKET Front
|
1 |
disc.
|
| 4 |
819371 |
RETAINER Rear Cowl
|
1 |
disc.
|
| 5 |
835499 |
SCREW (#8-32 X .440)
|
7 |
disc.
|
| 6 |
26995 |
LOCKWASHER (#8) Stainless Steel
|
7 |
|
| 7 |
850042 |
NUT (#8-32)
|
7 |
disc.
|
| 8 |
F681759 |
ROLLER Latch
|
1 |
disc.
|
| 9 |
F681026 |
SCREW (SPECIAL)-LATCH ROLLER
|
1 |
disc.
|
