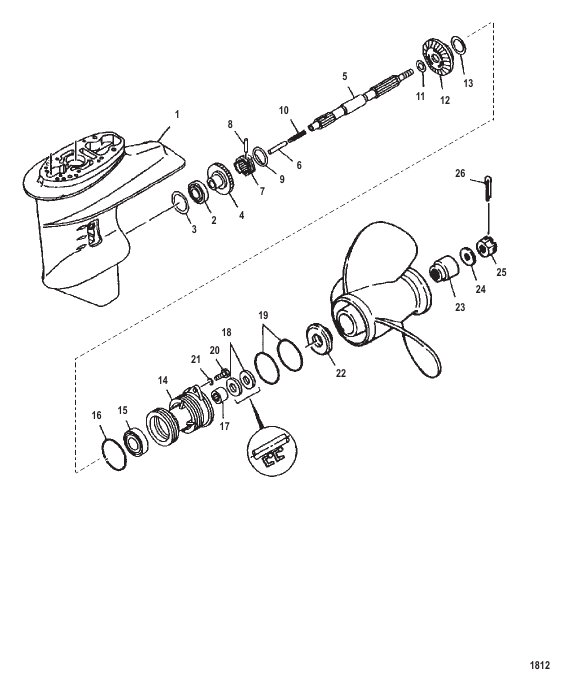

| # | Part Number | Description | Qty | Status |
|---|
| - |
826993A10 |
GEAR HOUSING ASSEMBLY
|
1 |
disc.
|
| - |
NS |
NOT SHOWN (SEE PROP CHART)
|
1 |
|
| - |
827109A02 |
GASKET SET Lower Unit
|
1 |
disc.
|
| 1 |
8269942 |
GEAR HOUSING (BASIC)
|
1 |
disc.
|
| 10 |
82078M |
SPRING
|
1 |
disc.
|
| 11 |
81831M |
WASHER
|
1 |
disc.
|
| 12 |
827065T |
GEAR
|
1 |
disc.
|
| 13 |
827066M |
SHIM (1.0MM)
|
AR |
disc.
|
| 13 |
827067M |
SHIM (1.1MM)
|
AR |
disc.
|
| 13 |
827068M |
SHIM (1.2MM)
|
AR |
disc.
|
| 13 |
827069M |
SHIM (1.3MM)
|
AR |
disc.
|
| 14 |
827070M |
CARRIER Bearing
|
1 |
disc.
|
| 15 |
82295T |
BEARING Ball
|
1 |
disc.
|
| 16 |
827071M |
O-RING
|
1 |
disc.
|
| 17 |
82315M |
BEARING
|
1 |
disc.
|
| 18 |
84813M |
SEAL Oil
|
2 |
disc.
|
| 19 |
11759M |
O-RING
|
2 |
disc.
|
| 2 |
82321T |
BEARING
|
1 |
disc.
|
| 20 |
84058M |
BOLT (M6 x 20)
|
2 |
|
| 21 |
881379 |
WASHER
|
2 |
superseded
|
| 22 |
827082M |
SPACER
|
1 |
disc.
|
| 23 |
859895 |
THRUST HUB
|
1 |
disc.
|
| 24 |
859905 |
WASHER
|
1 |
disc.
|
| 25 |
81774M |
NUT
|
1 |
disc.
|
| 26 |
82132M |
COTTER PIN
|
1 |
disc.
|
| 3 |
827059M |
SHIM (1.0MM)
|
AR |
disc.
|
| 3 |
827060M |
SHIM (1.1MM)
|
AR |
disc.
|
| 3 |
827061M |
SHIM (1.2MM)
|
AR |
disc.
|
| 3 |
827062M |
SHIM (1.4MM)
|
AR |
disc.
|
| 4 |
827063T |
GEAR
|
1 |
disc.
|
| 5 |
827064M |
PROPELLER SHAFT
|
1 |
disc.
|
| 6 |
80680M |
PLUNGER
|
1 |
disc.
|
| 7 |
81644T |
CLUTCH
|
1 |
|
| 8 |
81899M |
PIN Cross
|
1 |
disc.
|
| 9 |
80678M |
RING
|
1 |
disc.
|
