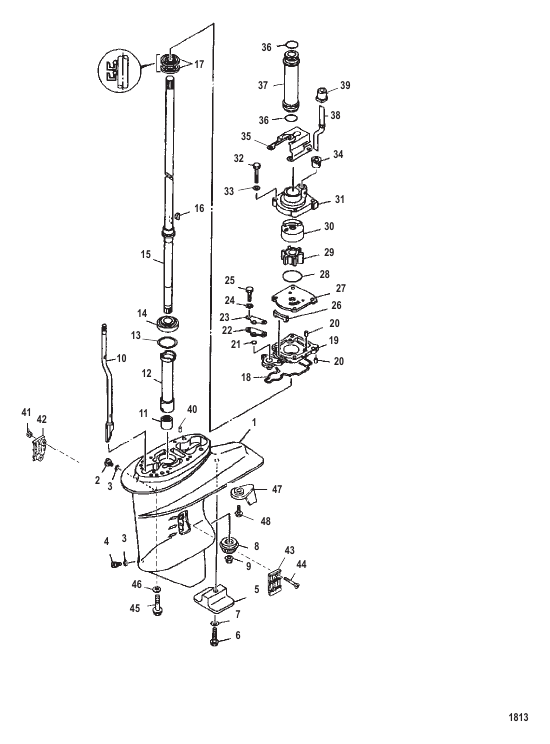

GEAR HOUSING (DRIVESHAFT)
Parts (58)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 826993A10 |
КАРТЕР РЕДУКТОРА В СБОРЕ GEAR HOUSING ASSEMBLY |
1 | discontinued |
| - | 827110A02 |
РЕМОНТНЫЙ КОМПЛЕКТ Водяной насос REPAIR KIT Water Pump |
1 | discontinued |
| - | 827109A02 |
КОМПЛЕКТ ПРОКЛАДОК Нижний блок GASKET SET Lower Unit |
1 | discontinued |
| 1 | 8269942 |
КАРТЕР РЕДУКТОРА GEAR HOUSING |
1 | discontinued |
| 10 | 827073M |
ЭКСЦЕНТРИК ПЕРЕКЛЮЧАТЕЛЯ ПЕРЕДАЧ SHIFT CAM |
1 | discontinued |
| 11 | 827036M |
ПОДШИПНИК BEARING |
1 | discontinued |
| 12 | 827035M |
РУКАВ SLEEVE |
1 | discontinued |
| 13 | 826996M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.7) SHIM (0.7) |
AR | discontinued |
| 13 | 826997M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (1.0) SHIM (1.0) |
AR | discontinued |
| 13 | 826998M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (1.1) SHIM (1.1) |
AR | discontinued |
| 13 | 826999M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (1.2) SHIM (1.2) |
AR | discontinued |
| 13 | 827031M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (1.3) SHIM (1.3) |
AR | discontinued |
| 13 | 827032M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (1.4) SHIM (1.4) |
AR | discontinued |
| 13 | 827033M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (1.5) SHIM (1.5) |
AR | discontinued |
| 13 | 827034M |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (1.6) SHIM (1.6) |
AR | discontinued |
| 14 | 826995M |
ПОДШИПНИК BEARING |
1 | discontinued |
| 15 | 827056M |
КАРДАННЫЙ ВАЛ В СБОРЕ DRIVESHAFT ASSEMBLY |
1 | discontinued |
| 16 | 97089M |
КЛЮЧ KEY |
1 | discontinued |
| 17 | 854017 |
УПЛОТНЕНИЕ Масло SEAL Oil |
2 | |
| 18 | 827052M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 19 | 827050M |
КОРПУС HOUSING |
1 | discontinued |
| 2 | 81924M |
ПРОБКА PLUG |
1 | discontinued |
| 20 | 41275M |
ШТИФТ Штифт PIN Dowel |
3 | |
| 21 | 827049M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 22 | 827048M |
ПЛАСТИНА PLATE |
1 | discontinued |
| 23 | 827047M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 24 | 881379 |
ШАЙБА WASHER |
2 | superseded |
| 25 | 82405M |
БОЛТ BOLT |
2 | discontinued |
| 26 | 827051M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 27 | 827045M |
ПЛАСТИНА Наружная часть (CHROME) PLATE Outer (CHROME) |
1 | discontinued |
| 28 | 82278M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 29 | 827044M |
КРЫЛЬЧАТКА IMPELLER |
1 | discontinued |
| 3 | 81987 |
ПРОКЛАДКА GASKET |
2 | |
| 30 | 827042040 |
ВСТАВКА (CHROME) INSERT (CHROME) |
1 | discontinued |
| 31 | 827040001 |
КОРПУС Водяной насос HOUSING Water Pump |
1 | discontinued |
| 32 | 827043M |
БОЛТ BOLT |
4 | discontinued |
| 33 | 881379 |
ШАЙБА WASHER |
4 | superseded |
| 34 | 827041M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 35 | 827046 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 36 | 84821M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | |
| 37 | 827038M |
ТРУБА Вода TUBE Water |
1 | discontinued |
| 38 | 827075M |
ТРУБА Вода TUBE Water |
1 | discontinued |
| 39 | 84818M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 4 | 95632010 |
ПРОБКА Слив PLUG Drain |
1 | discontinued |
| 40 | 82364001 |
ШТИФТ Штифт PIN Dowel |
2 | discontinued |
| 41 | 8528165 |
ГАЙКА NUT |
2 | discontinued |
| 42 | 827080M |
КРЫШКА COVER |
1 | discontinued |
| 43 | 827079M |
КРЫШКА COVER |
1 | discontinued |
| 44 | 827081M |
ВИНТ SCREW |
2 | discontinued |
| 45 | 94720M |
БОЛТ BOLT |
4 | discontinued |
| 46 | 82220M |
ШАЙБА WASHER |
4 | discontinued |
| 47 | 827076M |
ТРАНЦЕВАЯ ПЛИТА TRIM TAB |
1 | discontinued |
| 48 | 827077001 |
БОЛТ BOLT |
1 | discontinued |
| 5 | 827053M |
АНОД ANODE |
1 | discontinued |
| 6 | 91788M |
БОЛТ BOLT |
1 | discontinued |
| 7 | 827055M |
ШАЙБА WASHER |
1 | discontinued |
| 8 | 827057M |
ПЕРЕДАЧА Шестерня GEAR Pinion |
1 | discontinued |
| 9 | 827058M |
ГАЙКА NUT |
1 | discontinued |
