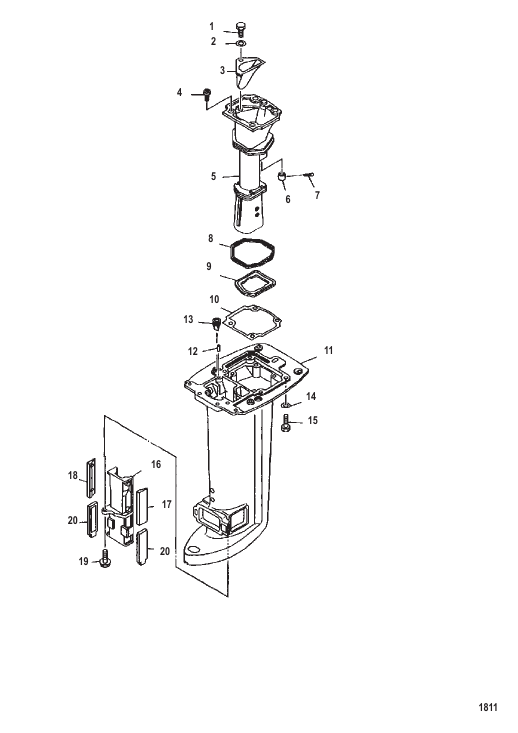

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 827109A02 | GASKET SET Lower Unit | 1 | disc. |
| 1 | 95206M | BOLT | 1 | disc. |
| 10 | 826991001 | GASKET | 1 | disc. |
| 11 | 827111A10 | HOUSING ASSEMBLY Driveshaft | 1 | disc. |
| 12 | 82364M | PIN Dowel | 2 | disc. |
| 13 | 889483 | GROMMET (RUBBER) | 2 | disc. |
| 14 | 82217M | WASHER | 6 | disc. |
| 15 | 95416M | BOLT | 6 | disc. |
| 16 | 889484 | GUIDE PLATE | 1 | disc. |
| 17 | 889485 | SEAL | 1 | disc. |
| 18 | 889486 | SEAL | 1 | disc. |
| 19 | 889487 | BOLT | 1 | disc. |
| 2 | 82217M | WASHER | 1 | disc. |
| 20 | 889488 | DAMPER | 2 | disc. |
| 3 | 84778001 | GUIDE Exhaust | 1 | disc. |
| 4 | 83870M | SCREW | 4 | disc. |
| 5 | 811170001 | MANIFOLD | 1 | disc. |
| 6 | 97635M | SEAL | 1 | disc. |
| 7 | 82132M | COTTER PIN | 1 | disc. |
| 8 | 84780001 | SEAL | 1 | disc. |
| 9 | 84781001 | SEAL | 1 | disc. |
