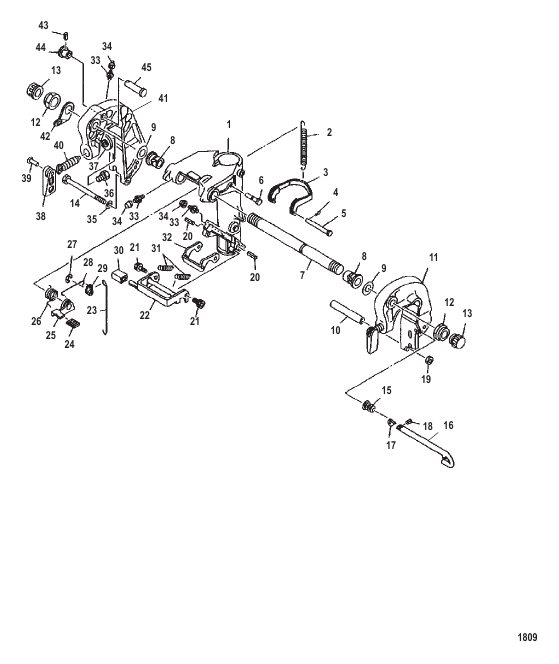

SWIVEL/CLAMP BRACKET
Parts (45)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9792M |
ПОВОРОТНЫЙ КРОНШТЕЙН SWIVEL BRACKET |
1 | discontinued |
| 10 | 19108M |
ПРОСТАВКА SPACER |
1 | discontinued |
| 11 | 9797M |
КРОНШТЕЙН (PORT) BRACKET (PORT) |
1 | discontinued |
| 12 | 81787M |
ГАЙКА NUT |
2 | superseded |
| 13 | 811914M |
ПРОБКА CAP |
2 | discontinued |
| 14 | 82924M |
БОЛТ BOLT |
1 | discontinued |
| 15 | 815007M |
ПРУЖИНА SPRING |
1 | discontinued |
| 16 | 94569M |
ПАЛЕЦ В СБОРЕ Штифт запирания наклона PIN ASSEMBLY Tilt Lock |
1 | |
| 17 | 82857M |
ПЛАСТИНА Стопор PLATE Stopper |
1 | discontinued |
| 18 | 82144M |
ШТИФТ PIN |
1 | discontinued |
| 19 | 82382M |
ГАЙКА NUT |
1 | discontinued |
| 2 | 19110M |
ПРУЖИНА SPRING |
1 | discontinued |
| 20 | 95552M |
ШТИФТ PIN |
2 | discontinued |
| 21 | 95554M |
БОЛТ BOLT |
2 | discontinued |
| 22 | 95551M |
РЫЧАГ LEVER |
1 | discontinued |
| 23 | 80645M |
ШТОК ROD |
1 | discontinued |
| 24 | 91641M |
КРЫШКА COVER |
1 | discontinued |
| 25 | 91640M |
РЫЧАГ LEVER |
1 | discontinued |
| 26 | 91642M |
ПРУЖИНА SPRING |
1 | discontinued |
| 27 | 82330M |
КОЛЬЦО Защелка RING Snap |
1 | discontinued |
| 28 | 91643M |
СОЕДИНИТЕЛЬ LINK |
1 | discontinued |
| 29 | 80648M |
КУЛАЧОК CAM |
1 | discontinued |
| 3 | 84837M |
КРЮК HOOK |
1 | discontinued |
| 30 | 11932M |
КРЫШКА COVER |
1 | discontinued |
| 31 | 95553M |
ПРУЖИНА SPRING |
2 | discontinued |
| 32 | 80643M |
КРЮК HOOK |
1 | discontinued |
| 33 | 82369M |
ФИТИНГ FITTING |
4 | |
| 34 | 81439M |
ПРОБКА CAP |
4 | discontinued |
| 35 | 82217M |
ШАЙБА WASHER |
1 | discontinued |
| 36 | 43097M |
БОЛТ BOLT |
2 | discontinued |
| 37 | 43099M |
ШАЙБА WASHER |
2 | discontinued |
| 38 | 11868M |
РУКОЯТКА HANDLE |
2 | discontinued |
| 39 | 81889M |
ШТИФТ PIN |
2 | discontinued |
| 4 | 82125M |
ШПЛИНТ COTTER PIN |
1 | discontinued |
| 40 | 43098M |
ВИНТ SCREW |
2 | discontinued |
| 41 | 9798M |
КРОНШТЕЙН (STARBOARD) BRACKET (STARBOARD) |
1 | discontinued |
| 42 | 19111M |
ПЛАСТИНА PLATE |
1 | discontinued |
| 43 | 82148M |
ШТИФТ PIN |
1 | discontinued |
| 44 | 95650M |
РУЧКА KNOB |
1 | discontinued |
| 45 | 84835M |
ВАЛ SHAFT |
1 | discontinued |
| 5 | 81883M |
ШТИФТ PIN |
1 | discontinued |
| 6 | 19109M |
ШТИФТ PIN |
1 | discontinued |
| 7 | 18974M |
БОЛТ BOLT |
1 | discontinued |
| 8 | 19112M |
ВТУЛКА BUSHING |
2 | discontinued |
| 9 | 81836M |
ШАЙБА WASHER |
2 | discontinued |
