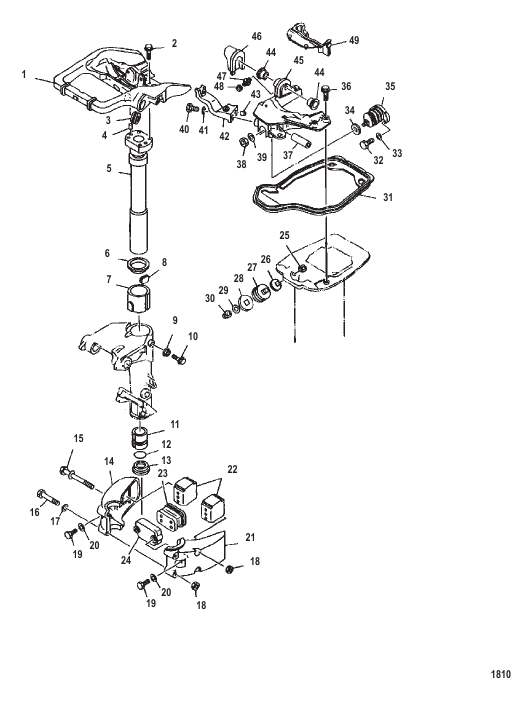

STEERING ARM
Parts (49)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 19113001 |
КРОНШТЕЙН Рулевой механизм BRACKET Steering |
1 | discontinued |
| 10 | 96382M |
ВИНТ SCREW |
1 | discontinued |
| 11 | 81961M |
ВТУЛКА BUSHING |
1 | discontinued |
| 12 | 82274M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 13 | 81959M |
ВТУЛКА BUSHING |
1 | discontinued |
| 14 | 84843M |
КОРПУС HOUSING |
1 | discontinued |
| 15 | 41893M |
БОЛТ BOLT |
2 | discontinued |
| 16 | 84844M |
БОЛТ BOLT |
2 | discontinued |
| 17 | 8217M |
ШАЙБА WASHER |
2 | discontinued |
| 18 | 82382M |
ГАЙКА NUT |
4 | discontinued |
| 19 | 43106M |
БОЛТ BOLT |
2 | discontinued |
| 2 | 84830M |
БОЛТ BOLT |
4 | discontinued |
| 20 | 82217M |
ШАЙБА WASHER |
2 | discontinued |
| 21 | 84842M |
КОРПУС HOUSING |
1 | discontinued |
| 22 | 84848M |
КРЕПЛЕНИЕ MOUNT |
2 | discontinued |
| 23 | 84846M |
КРЕПЛЕНИЕ MOUNT |
1 | discontinued |
| 24 | 84847M |
КРЫШКА COVER |
1 | discontinued |
| 25 | 82395001 |
ГАЙКА NUT |
2 | discontinued |
| 26 | 80662M |
ПРОКЛАДКА GASKET |
2 | discontinued |
| 27 | 82557M |
КРЕПЛЕНИЕ MOUNT |
2 | superseded |
| 28 | 81612M |
ПРОКЛАДКА GASKET |
2 | discontinued |
| 29 | 82219M |
ШАЙБА WASHER |
2 | discontinued |
| 3 | 82070M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 30 | 82396M |
ГАЙКА NUT |
2 | discontinued |
| 31 | 84838001 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 32 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | |
| 33 | 881379 |
ШАЙБА WASHER |
2 | superseded |
| 34 | 80662M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 35 | 84841M |
КРЕПЛЕНИЕ MOUNT |
1 | |
| 36 | 84839M |
БОЛТ BOLT |
4 | discontinued |
| 37 | 97142M |
ВТУЛКА COLLAR |
1 | discontinued |
| 38 | 82395001 |
ГАЙКА NUT |
1 | discontinued |
| 39 | 82219M |
ШАЙБА WASHER |
1 | discontinued |
| 4 | 82368M |
ШТИФТ PIN |
2 | discontinued |
| 40 | 852776 |
БОЛТ BOLT |
1 | discontinued |
| 41 | 881379 |
ШАЙБА WASHER |
1 | superseded |
| 42 | 80657M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 43 | 82364M |
ШТИФТ Штифт PIN Dowel |
1 | discontinued |
| 44 | 826982M |
ВТУЛКА BUSHING |
2 | discontinued |
| 45 | 811165002 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 46 | 84840M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 47 | 82369M |
ФИТИНГ FITTING |
1 | |
| 48 | 81439M |
ПРОБКА CAP |
1 | discontinued |
| 49 | 889482 |
УПЛОТНЕНИЕ (RUBBER) SEAL (RUBBER) |
1 | discontinued |
| 5 | 84833M |
ВАЛ SHAFT |
1 | discontinued |
| 6 | 81873M |
ШАЙБА WASHER |
1 | discontinued |
| 7 | 81964M |
ВТУЛКА BUSHING |
1 | discontinued |
| 8 | 80633M |
ПЛАСТИНА PLATE |
1 | discontinued |
| 9 | 91637M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
