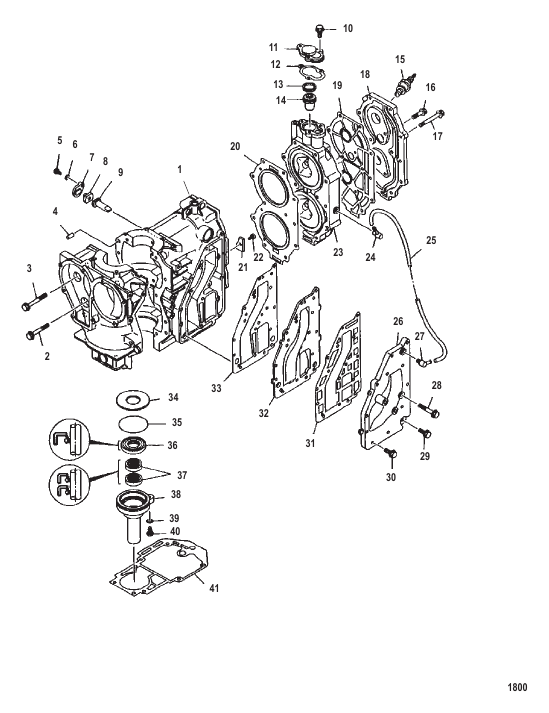

CYLINDER BLOCK
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|
| - |
826886A02 |
POWERHEAD ASSEMBLY
|
1 |
disc.
|
| - |
827107A02 |
GASKET SET Powerhead
|
1 |
disc.
|
| - |
827109A02 |
GASKET SET Lower Unit
|
1 |
disc.
|
| 1 |
808750A02 |
CRANKCASE ASSEMBLY
|
1 |
disc.
|
| 10 |
881428 |
BOLT (M6 x 16)
|
3 |
disc.
|
| 11 |
81030M |
COVER
|
1 |
disc.
|
| 12 |
81031 |
GASKET
|
1 |
|
| 13 |
81835M |
WASHER
|
1 |
|
| 14 |
814554M |
THERMOSTAT
|
1 |
superseded
|
| 15 |
41263M |
SPARK PLUG
|
2 |
superseded
|
| 16 |
881428 |
BOLT (M6 x 16)
|
2 |
disc.
|
| 17 |
826894001 |
BOLT
|
11 |
disc.
|
| 18 |
826892001 |
COVER
|
1 |
disc.
|
| 19 |
826893001 |
GASKET
|
1 |
disc.
|
| 2 |
887800 |
BOLT
|
2 |
disc.
|
| 20 |
826891M |
GASKET
|
1 |
superseded
|
| 21 |
84732M |
ANODE
|
1 |
disc.
|
| 22 |
95209001 |
SCREW
|
1 |
disc.
|
| 23 |
826890M |
CYLINDER HEAD
|
1 |
disc.
|
| 24 |
83326M |
FITTING
|
1 |
disc.
|
| 25 |
82012M |
HOSE
|
1 |
disc.
|
| 26 |
826897001 |
COVER Exhaust
|
1 |
disc.
|
| 27 |
83326M |
FITTING
|
1 |
disc.
|
| 28 |
826899M |
BOLT
|
3 |
disc.
|
| 29 |
888318 |
BOLT
|
1 |
disc.
|
| 3 |
888350002 |
BOLT
|
8 |
disc.
|
| 30 |
881427 |
BOLT (M6 x 30)
|
11 |
disc.
|
| 31 |
826898M |
GASKET
|
1 |
disc.
|
| 32 |
826895001 |
COVER Exhaust
|
1 |
disc.
|
| 33 |
826896M |
GASKET
|
1 |
disc.
|
| 34 |
81842M |
SPACER
|
1 |
disc.
|
| 35 |
84089001 |
O-RING
|
1 |
disc.
|
| 36 |
84752001 |
SEAL Oil
|
1 |
disc.
|
| 37 |
83347001 |
SEAL Oil
|
2 |
disc.
|
| 38 |
18973M |
HOUSING
|
1 |
superseded
|
| 39 |
881379 |
WASHER
|
1 |
superseded
|
| 4 |
82364M |
PIN Dowel
|
2 |
disc.
|
| 40 |
887828001 |
BOLT
|
1 |
disc.
|
| 41 |
84775 |
GASKET
|
1 |
|
| 5 |
826957M |
BOLT
|
1 |
disc.
|
| 6 |
881349 |
WASHER
|
1 |
disc.
|
| 7 |
826888M |
COVER
|
1 |
disc.
|
| 8 |
826889M |
GROMMET
|
1 |
disc.
|
| 9 |
826887M |
ANODE
|
1 |
|
