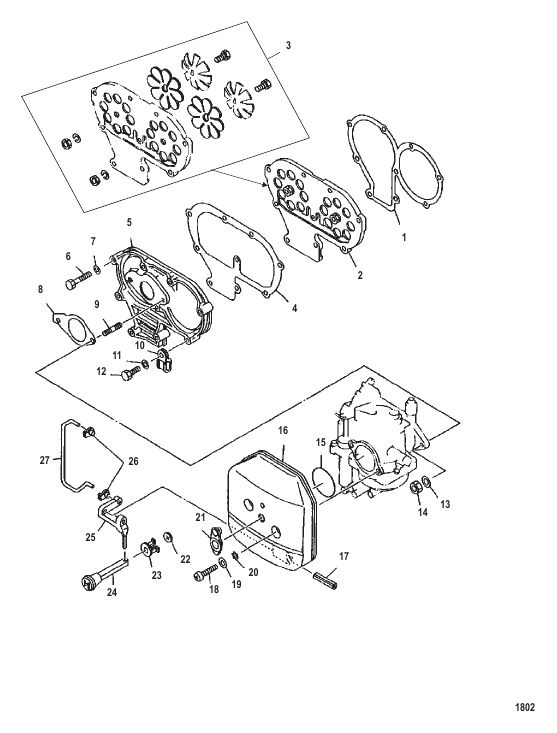

REED BLOCK
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|
| - |
827108A02 |
REPAIR KIT Carburetor
|
1 |
disc.
|
| - |
827107A02 |
GASKET SET Powerhead
|
1 |
disc.
|
| 1 |
80569M |
GASKET
|
1 |
disc.
|
| 10 |
96348M |
CLAMP
|
1 |
disc.
|
| 11 |
881349 |
WASHER
|
2 |
disc.
|
| 12 |
887881 |
BOLT
|
2 |
disc.
|
| 13 |
881379 |
WASHER
|
2 |
superseded
|
| 14 |
82389M |
NUT
|
2 |
disc.
|
| 15 |
8269181 |
O-RING
|
1 |
disc.
|
| 16 |
826947M |
COVER Outer
|
1 |
disc.
|
| 17 |
82159M |
PIN
|
1 |
disc.
|
| 18 |
82522M |
SCREW
|
2 |
disc.
|
| 19 |
82211M |
WASHER
|
2 |
disc.
|
| 2 |
826916M |
REED BLOCK ASSEMBLY
|
1 |
disc.
|
| 20 |
8528031 |
WASHER
|
2 |
disc.
|
| 21 |
826919M |
GROMMET
|
1 |
disc.
|
| 22 |
826920M |
GROMMET
|
1 |
disc.
|
| 23 |
84760M |
GROMMET
|
1 |
disc.
|
| 24 |
83960M |
KNOB
|
1 |
disc.
|
| 25 |
826921M |
LEVER Choke
|
1 |
disc.
|
| 26 |
16333 |
ROD Snap
|
2 |
|
| 27 |
826922M |
ROD Choke
|
1 |
disc.
|
| 3 |
94639M |
REED SET
|
1 |
disc.
|
| 4 |
826917M |
GASKET
|
1 |
disc.
|
| 5 |
80570002 |
MANIFOLD Intake
|
1 |
disc.
|
| 6 |
83285M |
BOLT
|
7 |
disc.
|
| 7 |
881349 |
WASHER
|
7 |
disc.
|
| 8 |
80572 |
GASKET
|
1 |
disc.
|
| 9 |
91735M |
STUD
|
2 |
disc.
|
