Parts Catalog

Replacements

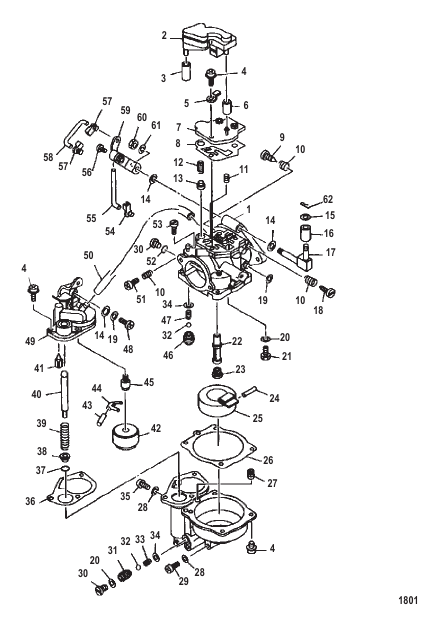

CARBURETOR

Parts (64)

#Part NumberDescriptionQtyStatus
- 827108A02 REPAIR KIT Carburetor 1 disc.
- 827107A02 GASKET SET Powerhead 1 disc.
1 826923A00 CARBURETOR 1 disc.
10 8095791   SPRING 3 disc.
11 826944M   JET Pilot 1 disc.
12 81100M   SPRING 1 disc.
13 826932M   PLUNGER 1 disc.
14 826927001   COLLAR 3 disc.
15 8095801   WASHER 1 disc.
16 826926001   COLLAR 1 disc.
17 826929001   SHAFT 1 disc.
18 826946M   SCREW 1 disc.
19 826943M   WASHER 2 disc.
2 95586M   DAMPER 1 disc.
20 80261M   WASHER 2 disc.
21 80593M   VALVE/SEAT KIT Inlet 1
22 826925M   MAIN NOZZLE 1 disc.
23 8269241   MAIN JET (#155) 1 disc.
24 11794M   PIN 1 disc.
25 80591M   FLOAT 1 disc.
26 97573M   GASKET 1 disc.
27 826933M   JET Starting 1 disc.
28 80737M   GASKET 2 superseded
29 91738M   SCREW 1 disc.
3 82012M   HOSE 1 disc.
30 97602M   VALVE 2 disc.
31 97603M   SEAT 1 disc.
32 95574M   BALL 2 disc.
33 97578M   SPRING 1 disc.
34 95560M   SEAT 2 disc.
35 811248M   SCREW (M4 x 5) 1 disc.
36 826934M   GASKET 1 disc.
37 94695M   O-RING 1 disc.
38 95584M   CHECK VALVE 1 disc.
39 95582M   SPRING 1 disc.
4 81758M   SCREW (M4 x 12) 10
40 826942001   PLUNGER 1 disc.
41 826935M   VALVE 1 disc.
42 94696M   FLOAT 1 disc.
43 811249M   PIN Float 1 disc.
44 811018M   FLOAT ARM 1 disc.
45 8269361   JET Pilot (#48) 1 disc.
46 97576M   SEAT 1 disc.
47 95559M   SPRING 1 disc.
48 826941M   SCREW 1 disc.
49 826937M   COVER 1 disc.
5 95585M   PLATE 1 disc.
50 889479   HOSE 1 disc.
51 826931M   SCREW 1 disc.
52 94699M   O-RING 1 disc.
53 826945M   SCREW 1 disc.
54 16333   ROD Snap 1
55 826938M   ROD Starter 1 disc.
56 826939M   SCREW 1 disc.
57 11829M   RETAINER 2
58 826940M   ROD Starter 1 disc.
59 826930001   ARM ASSEMBLY 1 disc.
6 82012M   HOSE 1 disc.
60 83763M   NUT 1 disc.
61 82186M   WASHER 1 disc.
62 82125M COTTER PIN 1 disc.
7 95575M   PLATE 1 disc.
8 95576M   GASKET 1 disc.
9 80573M   SCREW 1 disc.
