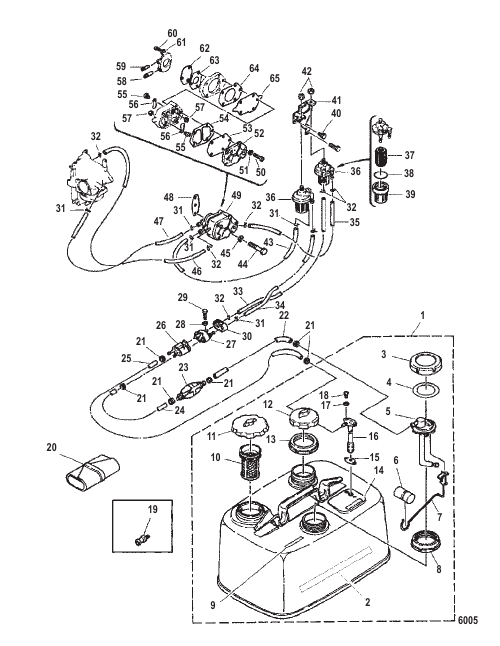

FUEL SYSTEM
Parts (66)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 827107A02 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка GASKET SET Powerhead |
1 | discontinued |
| 1 | 826961M |
БАК В СБОРЕ Топливо TANK ASSEMBLY Fuel |
1 | discontinued |
| 10 | 95568M |
СЕТЧАТЫЙ ФИЛЬТР STRAINER |
1 | discontinued |
| 11 | 814497M |
ПРОБКА CAP |
1 | discontinued |
| 12 | 814498M |
ПРОБКА CAP |
1 | discontinued |
| 13 | 97620M |
ГАЙКА NUT |
1 | discontinued |
| 14 | 94704M |
НАКЛЕЙКА DECAL |
1 | discontinued |
| 15 | 16720M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 16 | 99954M |
КОРПУС Соединитель HOUSING Connector |
1 | discontinued |
| 17 | 95501M |
УПЛОТНЕНИЕ SEAL |
2 | discontinued |
| 18 | 95502M |
ВИНТ SCREW |
2 | discontinued |
| 19 | 95633M |
ПРОБКА PLUG |
1 | superseded |
| 2 | 14617M |
НАКЛЕЙКА DECAL |
1 | discontinued |
| 20 | 81669M |
КОМПЛЕКТ ИНСТРУМЕНТОВ TOOL KIT |
1 | superseded |
| 21 | 16725M |
ЗАЖИМ CLAMP |
6 | discontinued |
| 22 | 94727M |
РУКАВ HOSE |
1 | discontinued |
| 23 | 89396Q38 |
ГРУША ПОДКАЧКИ ТОПЛИВА PRIMER BULB |
1 | superseded |
| 24 | 94727M |
РУКАВ HOSE |
1 | discontinued |
| 25 | 16571M |
РУКАВ HOSE |
1 | discontinued |
| 26 | 95569M |
СОЕДИНИТЕЛЬ Топливо CONNECTOR Fuel |
1 | discontinued |
| 27 | 95604M |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | discontinued |
| 28 | 881379 |
ШАЙБА WASHER |
1 | superseded |
| 29 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
1 | |
| 3 | 97624M |
ОПОРА SUPPORT |
1 | discontinued |
| 30 | 97607M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 31 | 82047M |
ЗАЖИМ CLAMP |
6 | discontinued |
| 32 | 98974M |
ЗАЖИМ CLIP |
6 | discontinued |
| 33 | 82012M |
РУКАВ HOSE |
1 | discontinued |
| 34 | 82012M |
РУКАВ HOSE |
1 | discontinued |
| 35 | 95564M |
РУКАВ HOSE |
1 | discontinued |
| 36 | 826964T |
ФИЛЬТР Топливо FILTER Fuel |
2 | |
| 37 | 826965M |
ФИЛЬТР FILTER |
2 | superseded |
| 38 | 826966M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | superseded |
| 39 | 826967M |
КОЛПАЧОК CUP |
2 | discontinued |
| 4 | 97623M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 40 | 91772M |
БОЛТ BOLT |
1 | discontinued |
| 41 | 826968M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 42 | 82382M |
ГАЙКА NUT |
2 | discontinued |
| 43 | 81112M |
РУКАВ HOSE |
1 | discontinued |
| 44 | 84931M |
БОЛТ BOLT |
2 | discontinued |
| 45 | 881379 |
ШАЙБА WASHER |
2 | superseded |
| 46 | 826969M |
РУКАВ HOSE |
1 | discontinued |
| 47 | 82012M |
РУКАВ HOSE |
1 | discontinued |
| 48 | 80757 |
ПРОКЛАДКА GASKET |
1 | |
| 49 | 826970M |
НАСОС В СБОРЕ Топливо PUMP ASSEMBLY Fuel |
1 | discontinued |
| 5 | 95616M |
ИЗМЕРИТЕЛЬНЫЙ ПРИБОР Топливо METER Fuel |
1 | discontinued |
| 50 | 804362 |
ВИНТ SCREW |
3 | superseded |
| 51 | 82186M |
ШАЙБА WASHER |
3 | discontinued |
| 52 | 804361 |
КОРПУС HOUSING |
1 | superseded |
| 53 | 84141M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 54 | 80614 |
ПРОКЛАДКА GASKET |
1 | |
| 55 | 41889M |
ВИНТ (M3 x 5) SCREW (M3 x 5) |
2 | discontinued |
| 56 | 41888M |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
2 | |
| 57 | 82537M |
ГАЙКА NUT |
2 | discontinued |
| 58 | 94716M |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | discontinued |
| 59 | 826971M |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | discontinued |
| 6 | 81319M |
ПОПЛАВОК FLOAT |
1 | discontinued |
| 60 | 94724M |
ВИНТ SCREW |
3 | discontinued |
| 61 | 94725M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
3 | discontinued |
| 62 | 94717M |
ДИАФРАГМА DIAPHRAGM |
1 | discontinued |
| 63 | 94718M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 64 | 80613 |
ПРОКЛАДКА GASKET |
1 | |
| 65 | 835014M |
ДИАФРАГМА DIAPHRAGM |
1 | discontinued |
| 7 | 14274M |
ИНДИКАТОР INDICTOR |
1 | discontinued |
| 8 | 97622M |
ГАЙКА NUT |
1 | discontinued |
| 9 | 826963M |
НАКЛЕЙКА DECAL |
1 | discontinued |
