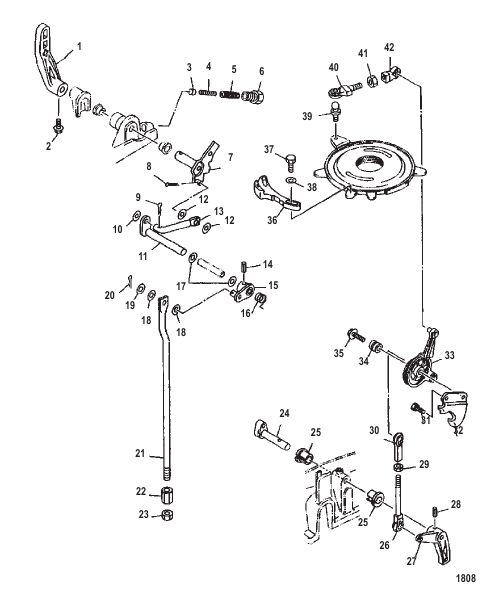

THROTTLE LINKAGE
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|
| 1 |
84865M |
HANDLE
|
1 |
|
| 10 |
82211M |
WASHER
|
1 |
disc.
|
| 11 |
97139M |
LEVER
|
1 |
disc.
|
| 12 |
81843M |
WASHER
|
2 |
disc.
|
| 13 |
81595M |
LINK ROD
|
1 |
disc.
|
| 14 |
82155M |
PIN
|
1 |
disc.
|
| 15 |
84867M |
LEVER
|
1 |
disc.
|
| 16 |
97140M |
SPRING
|
1 |
disc.
|
| 17 |
81846M |
WASHER
|
2 |
disc.
|
| 18 |
81843M |
WASHER
|
2 |
disc.
|
| 19 |
82211M |
WASHER
|
1 |
disc.
|
| 2 |
84830M |
BOLT
|
1 |
disc.
|
| 20 |
82127M |
COTTER PIN
|
1 |
disc.
|
| 21 |
826989M |
SHIFT SHAFT
|
1 |
disc.
|
| 22 |
804379 |
NUT
|
1 |
disc.
|
| 23 |
82389M |
NUT
|
1 |
disc.
|
| 24 |
81134M |
SHAFT
|
1 |
disc.
|
| 25 |
81946M |
BUSHING
|
2 |
disc.
|
| 26 |
14238M |
JOINT
|
1 |
disc.
|
| 27 |
84863M |
LEVER Throttle Control
|
1 |
disc.
|
| 28 |
82156M |
PIN
|
1 |
disc.
|
| 29 |
82388M |
NUT (M5)
|
1 |
|
| 3 |
84460M |
PLUNGER
|
1 |
disc.
|
| 30 |
16715M |
JOINT
|
1 |
|
| 31 |
91772M |
BOLT
|
1 |
disc.
|
| 32 |
84859M |
RETAINER
|
1 |
disc.
|
| 33 |
826987M |
LEVER
|
1 |
disc.
|
| 34 |
83310M |
COLLAR
|
1 |
disc.
|
| 35 |
881435 |
BOLT (M6 x 20)
|
1 |
disc.
|
| 36 |
889481 |
CAM
|
1 |
disc.
|
| 37 |
827162M |
BOLT
|
2 |
disc.
|
| 38 |
82211M |
WASHER
|
2 |
disc.
|
| 39 |
84305M |
JOINT
|
1 |
disc.
|
| 4 |
84462M |
SPRING
|
1 |
disc.
|
| 40 |
83921M |
ROD
|
1 |
disc.
|
| 41 |
83763M |
NUT
|
1 |
disc.
|
| 42 |
16715M |
JOINT
|
1 |
|
| 5 |
84461M |
SPRING
|
1 |
disc.
|
| 6 |
84459M |
RETAINER
|
1 |
disc.
|
| 7 |
84653M |
CAM
|
1 |
disc.
|
| 8 |
82125M |
COTTER PIN
|
1 |
disc.
|
| 9 |
826988M |
COTTER PIN
|
1 |
disc.
|
