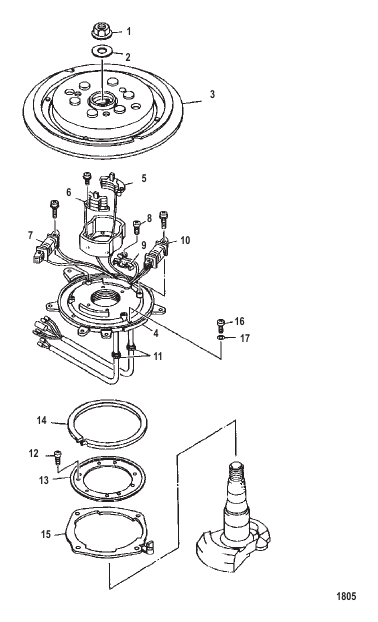

FLYWHEEL
Parts (17)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 96650M |
ГАЙКА (M16) NUT (M16) |
1 | discontinued |
| 10 | 827086009 |
КАТУШКА Зажигание COIL Ignition |
1 | discontinued |
| 11 | 814545M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 | discontinued |
| 12 | 96671M |
ВИНТ SCREW |
4 | discontinued |
| 13 | 19139M |
ФИКСАТОР RETAINER |
1 | discontinued |
| 14 | 83566M |
ФИКСАТОР RETAINER |
1 | discontinued |
| 15 | 83569M |
ПЛАСТИНА PLATE |
1 | discontinued |
| 16 | 14232M |
ВИНТ SCREW |
4 | discontinued |
| 17 | 82211M |
ШАЙБА WASHER |
4 | discontinued |
| 2 | 96651M |
ШАЙБА WASHER |
1 | discontinued |
| 3 | 8270841 |
МАХОВИК В СБОРЕ FLYWHEEL ASSEMBLY |
1 | discontinued |
| 4 | 827085A02 |
БАЗА В СБОРЕ BASE ASSEMBLY |
1 | discontinued |
| 5 | 827088M |
КАТУШКА Импульсный генератор COIL Pulser |
1 | discontinued |
| 6 | 827089M |
КАТУШКА Импульсный генератор COIL Pulser |
1 | discontinued |
| 7 | 827087M |
КАТУШКА Зарядка COIL Lighting |
1 | discontinued |
| 8 | 82499M |
ВИНТ SCREW |
1 | discontinued |
| 9 | 814546M |
ЗАЖИМ CLAMP |
1 | discontinued |
