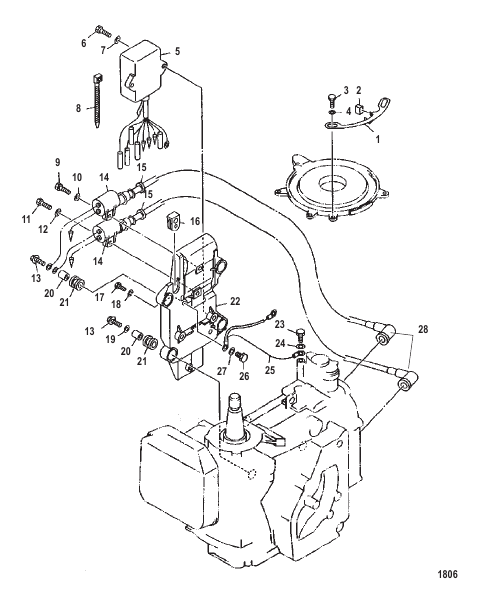

ELECTRICAL
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|
| 1 |
827090M |
STOP
|
1 |
disc.
|
| 10 |
881379 |
WASHER
|
1 |
superseded
|
| 11 |
84058M |
BOLT (M6 x 20)
|
1 |
|
| 12 |
881379 |
WASHER
|
1 |
superseded
|
| 13 |
827093M |
BOLT
|
4 |
disc.
|
| 14 |
827097M |
COIL Ignition
|
2 |
disc.
|
| 15 |
82069M |
GROMMET
|
2 |
disc.
|
| 16 |
827096M |
GROMMET
|
1 |
disc.
|
| 17 |
91772M |
BOLT
|
1 |
disc.
|
| 18 |
82212M |
LOCKWASHER
|
1 |
disc.
|
| 19 |
92564M |
WASHER
|
2 |
disc.
|
| 2 |
99952M |
CLAMP
|
1 |
disc.
|
| 20 |
82851M |
BUSHING
|
4 |
superseded
|
| 21 |
827092M |
GROMMET
|
4 |
disc.
|
| 22 |
827091M |
BRACKET
|
1 |
disc.
|
| 23 |
91772M |
BOLT
|
1 |
disc.
|
| 24 |
82212M |
LOCKWASHER
|
1 |
disc.
|
| 25 |
827094M |
WIRE ASSEMBLY Lead
|
1 |
disc.
|
| 26 |
91772M |
BOLT
|
1 |
disc.
|
| 27 |
82212M |
LOCKWASHER
|
1 |
disc.
|
| 28 |
63709A1 |
BOOT/TERMINAL KIT
|
2 |
|
| 3 |
84088M |
SCREW (M6 x 10)
|
2 |
disc.
|
| 4 |
881379 |
WASHER
|
2 |
superseded
|
| 5 |
82709511 |
CDI UNIT ASSEMBLY
|
1 |
disc.
|
| 6 |
84058M |
BOLT (M6 x 20)
|
2 |
|
| 7 |
881379 |
WASHER
|
2 |
superseded
|
| 8 |
56762 |
TIE STRAP (4.00 Inches)
|
1 |
|
| 9 |
84058M |
BOLT (M6 x 20)
|
1 |
|
