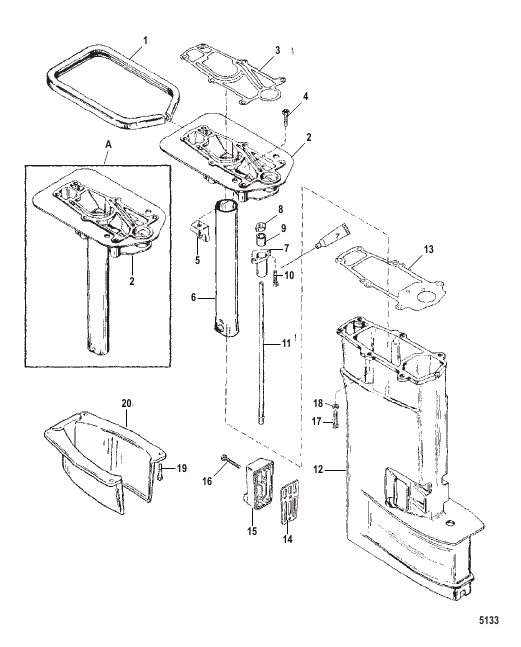

Driveshaft Housing Assembly
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 41499A88 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| - | 804946T02 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | |
| 1 | 158664 |
УПЛОТНЕНИЕ Переходная пластина SEAL Adaptor Plate |
1 | discontinued |
| 10 | 40011107 |
ВИНТ (M5 x 16), нержавеющая сталь SCREW (M5 x 16) Stainless Steel |
2 | |
| 11 | 85116 |
ТРУБА Вода (Short Shaft) TUBE Water (Short Shaft) |
1 | discontinued |
| 11 | 86292 |
ТРУБА Вода (Long Shaft) TUBE Water (Long Shaft) |
1 | discontinued |
| 11 | 862921 |
ТРУБА Вода (Long Shaft)(Heavy Duty) TUBE Water (Long Shaft)(Heavy Duty) |
1 | discontinued |
| 12 | 9097T5 |
КОРПУС В СБОРЕ Карданный вал (Black-Short Shaft) HOUSING ASSEMBLY Driveshaft (Black-Short Shaft) |
1 | discontinued |
| 12 | 9098T5 |
КОРПУС В СБОРЕ Карданный вал (Black-Long Shaft) HOUSING ASSEMBLY Driveshaft (Black-Long Shaft) |
1 | discontinued |
| 13 | 433374 |
ПРОКЛАДКА Корпус ведущего вала GASKET Drive Shaft Housing |
1 | |
| 14 | 14621 |
ПРОКЛАДКА GASKET |
1 | |
| 15 | 14534 |
КРЫШКА COVER |
1 | |
| 16 | 14742 |
ВИНТ (0.250-20 x 1.25) SCREW (.250-20 x 1.25) |
1 | |
| 17 | 1993870 |
ВИНТ (M8 x 70) SCREW (M8 x 70) |
6 | |
| 18 | 4002317 |
ШАЙБА (8,90 x 17,0 x 1,9 нерж. сталь) WASHER (8.90 X 17.0 X 1.9SS) |
6 | |
| 19 | 40011128 |
ВИНТ (M6 x 20), нержавеющая сталь SCREW (M6 x 20) Stainless Steel |
4 | superseded |
| 2 | 99702A7 |
ПЛАСТИНА ПЕРЕХОДНИКА В СБОРЕ ADAPTER PLATE ASSEMBLY |
1 | discontinued |
| 20 | 17258T |
КРЫШКА ДИФФЕРЕНТА (Black) TRIM COVER (Black) |
1 | discontinued |
| 3 | 41670006 |
ПРОКЛАДКА Переходная пластина GASKET Adaptor Plate |
1 | |
| 4 | 40011128 |
ВИНТ (M6 x 20), нержавеющая сталь SCREW (M6 x 20) Stainless Steel |
2 | superseded |
| 5 | 41211 |
КРОНШТЕЙН BRACKET |
2 | |
| 6 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Exhaust Tube NOT SOLD SEPARATE Exhaust Tube |
1 | |
| 7 | 96248A1 |
КОРПУС В СБОРЕ HOUSING ASSEMBLY |
1 | discontinued |
| 8 | 889715 |
ПРОСТАВКА Водяная труба SPACER Water Tube |
1 | discontinued |
| 9 | 25329 |
УПЛОТНЕНИЕ SEAL |
1 |
