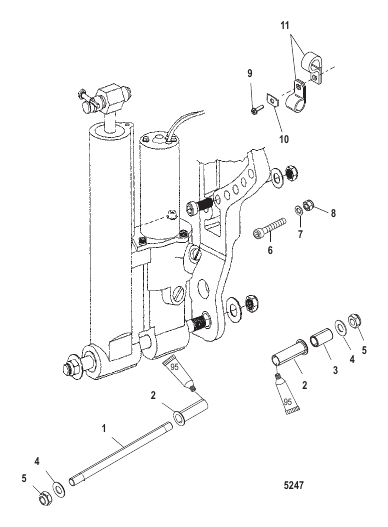

Power Trim Mounting
Parts (11)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 822481001 |
ШТИФТ (14 мм) PIN (14 mm) |
1 | |
| 10 | 69205 |
C-ШАЙБА C WASHER |
1 | superseded |
| 11 | 22740 |
ЗАЖИМ CLIP |
2 | |
| 2 | 822482 |
ВТУЛКА BUSHING |
2 | |
| 3 | 822484 |
ВТУЛКА BUSHING |
2 | |
| 4 | 825190 |
ШАЙБА WASHER |
2 | |
| 5 | 826712 |
ГАЙКА NUT |
2 | |
| 6 | 4009040 |
ВИНТ (M10 x 40), нержавеющая сталь SCREW (M10 x 40) Stainless Steel |
2 | |
| 7 | 4002319 |
ШАЙБА WASHER |
2 | |
| 8 | 40140 |
ГАЙКА (M10) NUT (M10) |
2 | |
| 9 | 878609 |
ВИНТ (№10-16 x 0.600) SCREW (#10-16 x .600) |
1 |
