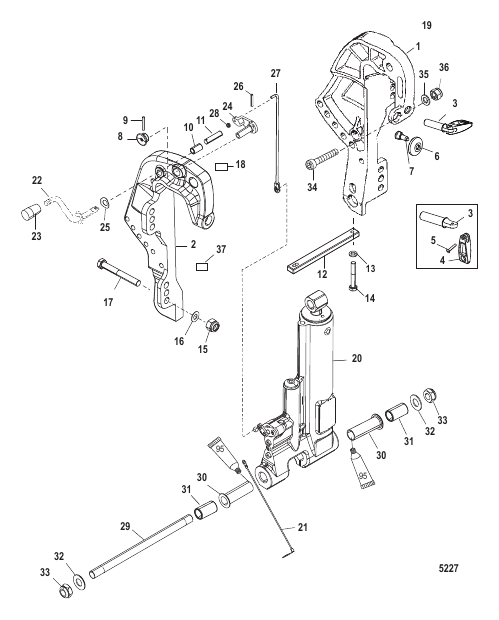

Clamp Bracket (Gas Assist Trim)
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 821773T1 |
КРОНШТЕЙН ФИКСАТОРА (Port) CLAMP BRACKET (Port) |
1 | |
| 10 | 86637 |
ПОДШИПНИК BEARING |
1 | |
| 11 | 8224002 |
ШТИФТ Tilt Stop PIN Tilt Stop |
1 | |
| 12 | 8252711 |
АНОД ANODE |
1 | |
| 13 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
2 | superseded |
| 14 | 4000330 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
2 | superseded |
| 15 | 82671117 |
ГАЙКА (.500-20) NUT (.500-20) |
2 | |
| 16 | 28421 |
ШАЙБА (1.5 × 3.05 × 0.13), нержавеющая сталь WASHER (1.5 x 3.05 x 0.13) Stainless Steel |
2 | superseded |
| 17 | 814259 |
ВИНТ (0.500-20 x 4.00) SCREW (.500-20 x 4.00) |
2 | |
| 18 | 830253 |
НАКЛЕЙКА Штифт запирания наклона DECAL Tilt Lock |
1 | |
| 19 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal-Warning NOT SOLD SEPARATE Decal-Warning |
1 | |
| 2 | 821774T8 |
КРОНШТЕЙН ФИКСАТОРА (Storboard) CLAMP BRACKET (Storboard) |
1 | |
| 20 | 828533T1 |
ДИФФЕРЕНТ Hydraulic Assist (Gas Assist Trim) TRIM Hydraulic Assist (Gas Assist Trim) |
1 | |
| 21 | 88238A11 |
КАБЕЛЬ В СБОРЕ (Gas Assist Trim) CABLE ASSEMBLY (Gas Assist Trim) |
1 | |
| 22 | 828924 |
РЫЧАГ Наклон (Gas Assist Trim) LEVER Tilt (Gas Assist Trim) |
1 | |
| 23 | 19621 |
РУЧКА НАКЛОНА (Gas Assist Trim) TILT KNOB (Gas Assist Trim) |
1 | superseded |
| 24 | 828930 |
ARM Рычаг (Gas Assist Trim) ARM Lever (Gas Assist Trim) |
1 | |
| 25 | 31030 |
ВОЛНИСТАЯ ШАЙБА (Gas Assist Trim) WAVE WASHER (Gas Assist Trim) |
1 | |
| 26 | 25319 |
ШТИФТ (0.125 x 0.75") (Gas Assist Trim) PIN (.125 x 0.75 Inches) (Gas Assist Trim) |
1 | |
| 27 | 8289961 |
СОЕДИНИТЕЛЬ (Gas Assist Trim) LINK (Gas Assist Trim) |
1 | |
| 28 | 826709106 |
ГАЙКА (№10-32), нержавеющая сталь (Gas Assist Trim) NUT (#10-32) Stainless Steel (Gas Assist Trim) |
1 | superseded |
| 29 | 822481001 |
ШТИФТ (14 мм) (Gas Assist/Power Trim) PIN (14 mm) (Gas Assist/Power Trim) |
1 | |
| 3 | 818883A1 |
ВИНТ С НАКАТАННОЙ ГОЛОВКОЙ В СБОРЕ (Manual) THUMB SCREW ASSEMBLY (Manual) |
2 | |
| 30 | 822482 |
ВТУЛКА (Gas Assist/Power Trim) BUSHING (Gas Assist/Power Trim) |
2 | |
| 31 | 822484 |
ВТУЛКА (Gas Assist/Power Trim) BUSHING (Gas Assist/Power Trim) |
2 | |
| 32 | 825190 |
ШАЙБА (Gas Assist/Power Trim) WASHER (Gas Assist/Power Trim) |
2 | |
| 33 | 826712 |
ГАЙКА (Gas Assist/Power Trim) NUT (Gas Assist/Power Trim) |
2 | |
| 34 | 4009040 |
ВИНТ (M10 x 40), нержавеющая сталь (Gas Assist/Power Trim) SCREW (M10 x 40) Stainless Steel (Gas Assist/Power Trim) |
2 | |
| 35 | 4002319 |
ШАЙБА (Gas Assist/Power Trim) WASHER (Gas Assist/Power Trim) |
2 | |
| 36 | 40140 |
ГАЙКА (M10) (Gas Assist/Power Trim) NUT (M10) (Gas Assist/Power Trim) |
2 | |
| 37 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal-Shallow Water Drive NOT SOLD SEPARATE Decal-Shallow Water Drive |
1 | |
| 4 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Handle-Manual NOT SOLD SEPARATE Handle-Manual |
2 | |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Rivet-Manual NOT SOLD SEPARATE Rivet-Manual |
2 | |
| 6 | 818884 |
ШАЙБА (Manual) WASHER (Manual) |
2 | |
| 7 | 768042 |
ВИНТ С БУРТИКОМ Шестигранный (Manual) SHOULDER SCREW Hex (Manual) |
2 | |
| 8 | 8224011 |
ПРОБКА CAP |
1 | |
| 9 | 25810 |
ШТИФТ PIN |
1 |
