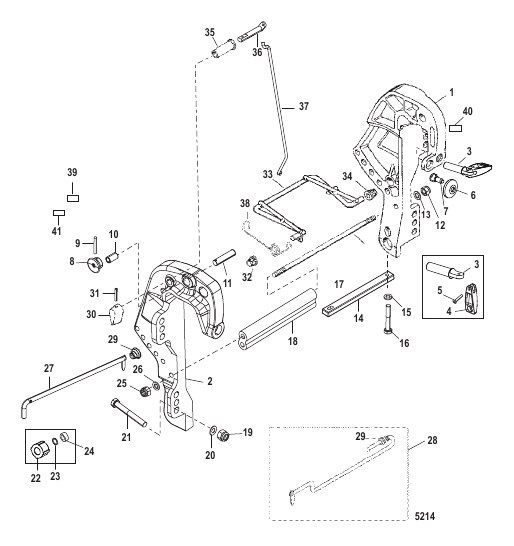

Clamp Bracket
Parts (49)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 821773A3 |
КРОНШТЕЙН ФИКСАТОРА (Port Short)(1 Lower Mounting Hole) CLAMP BRACKET (Port Short)(1 Lower Mounting Hole) |
1 | discontinued |
| 1 | 821773T1 |
КРОНШТЕЙН ФИКСАТОРА (Port Long)(3 Lower Mounting Holes) CLAMP BRACKET (Port Long)(3 Lower Mounting Holes) |
1 | |
| 10 | 86637 |
ПОДШИПНИК BEARING |
1 | |
| 11 | 8224002 |
ШТИФТ PIN |
1 | |
| 12 | 40140 |
ГАЙКА (M10) NUT (M10) |
1 | |
| 13 | 4002319 |
ШАЙБА WASHER |
1 | |
| 14 | 8252711 |
АНОД ANODE |
1 | |
| 15 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
2 | superseded |
| 16 | 4000330 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
2 | superseded |
| 17 | 823656 |
ШПИЛЬКА (M10 x 277) STUD (M10 x 277) |
1 | superseded |
| 18 | 824952 |
ПРОСТАВКА SPACER |
1 | |
| 19 | 82671117 |
(Long) NUT (.500-20) (Long) |
4 | |
| 19 | 82671117 |
(Short-Top) NUT (.500-20) (Short-Top) |
2 | |
| 19 | 4013710 |
ГАЙКА (M10) (M10 x 1.5) (Short-Bottom) NUT (M10) (M10 x 1.5) (Short-Bottom) |
2 | |
| 2 | 821774T6 |
КРОНШТЕЙН ФИКСАТОРА (Starboard Short) CLAMP BRACKET (Starboard Short) |
1 | discontinued |
| 2 | 821774T8 |
КРОНШТЕЙН ФИКСАТОРА (Starboard Long) CLAMP BRACKET (Starboard Long) |
1 | |
| 20 | 28421 |
ШАЙБА (1.5 × 3.05 × 0.13), нержавеющая сталь (Long) WASHER (1.5 x 3.05 x 0.13) Stainless Steel (Long) |
4 | superseded |
| 20 | 28421 |
ШАЙБА (1.5 × 3.05 × 0.13), нержавеющая сталь (Short-Top) WASHER (1.5 x 3.05 x 0.13) Stainless Steel (Short-Top) |
2 | superseded |
| 20 | 4002319 |
ШАЙБА (Short-Bottom) WASHER (Short-Bottom) |
2 | |
| 21 | 814259 |
ВИНТ (0.500-20 x 4.00) (Long) SCREW (.500-20 x 4.00) (Long) |
4 | |
| 21 | 814259 |
ВИНТ (0.500-20 x 4.00) (Short-Top) SCREW (.500-20 x 4.00) (Short-Top) |
2 | |
| 21 | 826110 |
ВИНТ (Short-Bottom) SCREW (Short-Bottom) |
2 | |
| 22 | 19624A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| 23 | 29619 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.583 x 0.103) O-RING (.583 x .103) |
1 | |
| 24 | 78861 |
ПРОСТАВКА SPACER |
1 | |
| 25 | 40140 |
ГАЙКА (M10) NUT (M10) |
1 | |
| 26 | 4002319 |
ШАЙБА WASHER |
1 | |
| 27 | 821457A1 |
ПАЛЕЦ В СБОРЕ Штифт запирания наклона (Work) PIN ASSEMBLY Tilt Lock (Work) |
1 | superseded |
| 28 | 853923A1 |
ШТИФТ (Manual Trim) PIN (Manual Trim) |
1 | discontinued |
| 29 | 821461 |
ПРУЖИНА SPRING |
1 | |
| 3 | 818883A1 |
ВИНТ С НАКАТАННОЙ ГОЛОВКОЙ В СБОРЕ (Manual) THUMB SCREW ASSEMBLY (Manual) |
2 | |
| 30 | 822409 |
РЫЧАГ Shallow Water Drive LEVER Shallow Water Drive |
1 | |
| 31 | 25319 |
ШТИФТ (0.125 x 0.75") PIN (.125 x 0.75 Inches) |
1 | |
| 32 | 824858 |
ВТУЛКА PLASTIC BUSHING PLASTIC |
1 | |
| 33 | 878580 |
ШТОК Пластик Shallow Water Drive ROD Plastic Shallow Water Drive |
1 | |
| 34 | 824858 |
ВТУЛКА Plastic BUSHING Plastic |
1 | |
| 35 | 823812 |
ВТУЛКА BUSHING |
1 | |
| 36 | 822411 |
ARM ARM |
1 | |
| 37 | 878563 |
СТЕРЖЕНЬ ТЯГИ LINK ROD |
1 | |
| 38 | 832085A1 |
ПРУЖИНА SPRING |
1 | |
| 39 | 830253 |
НАКЛЕЙКА Штифт запирания наклона DECAL Tilt Lock |
1 | |
| 4 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Handle-Manual NOT SOLD SEPARATE Handle-Manual |
2 | |
| 40 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Warning Decal NOT SOLD SEPARATE Warning Decal |
1 | |
| 41 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Shallow Water Drive Decal NOT SOLD SEPARATE Shallow Water Drive Decal |
1 | |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Rivet-Manual NOT SOLD SEPARATE Rivet-Manual |
2 | |
| 6 | 818884 |
ШАЙБА (Manual) WASHER (Manual) |
2 | |
| 7 | 768042 |
ВИНТ С БУРТИКОМ Шестигранный (Manual) SHOULDER SCREW Hex (Manual) |
2 | |
| 8 | 8224011 |
ПРОБКА CAP |
1 | |
| 9 | 25810 |
ШТИФТ PIN |
1 |
