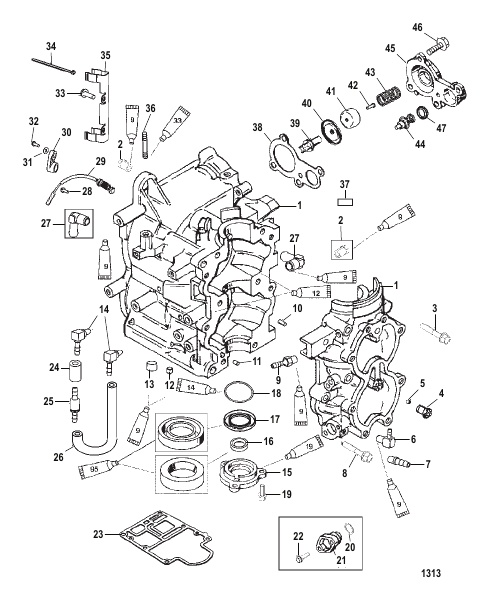

Cylinder Block
Parts (53)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 822420A94 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| - | 808569T02 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ 30 HP POWERHEAD ASSEMBLY 30 HP |
1 | |
| - | 8M0063311 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ 40 HP POWERHEAD ASSEMBLY 40 HP |
1 | |
| 1 | 821358T5 |
БЛОК ЦИЛИНДРА CYLINDER BLOCK |
1 | |
| 10 | 8128701 |
ШТИФТ Center Main PIN Center Main |
2 | superseded |
| 11 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) PIN Dowel - Without Hole (.375 x .625) |
1 | |
| 12 | 390721 |
ПРОБКА Труба (0.125-27), латунь PLUG Pipe (.125-27) Brass |
1 | |
| 13 | 185981 |
ПРОБКА Труба (0.375-18) PLUG Pipe (.375-18) |
1 | |
| 14 | 15133 |
ФИТИНГ FITTING |
2 | |
| 15 | 9812A8 |
ТОРЦЕВАЯ КРЫШКА В СБОРЕ END CAP ASSEMBLY |
1 | |
| 16 | 828932 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 17 | 41953 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 18 | 90011 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (2.175 x 0.175) O-RING (2.175 x .175) |
1 | superseded |
| 19 | 81742720 |
ВИНТ (M8 x 20) SCREW (M8 x 20) |
3 | |
| 2 | 328022 |
ПРОБКА Труба (0.125-27), латунь PLUG Pipe (.125-27) Brass |
2 | |
| 20 | 48462 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.614 x 0.070) Included With Reference 1 (Manual) O-RING (.614 x .070) Included With Reference 1 (Manual) |
1 | |
| 21 | 8129962 |
КРЫШКА (Manual) COVER (Manual) |
1 | discontinued |
| 22 | 40011108 |
ВИНТ (M5 x 20), нержавеющая сталь (Manual) SCREW (M5 x 20) Stainless Steel (Manual) |
2 | |
| 23 | 828553 |
ПРОКЛАДКА Included With Reference 1 GASKET Included With Reference 1 |
1 | superseded |
| 24 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) (Cut to 1.50 Inch Length) TUBING (20.00 Feet Bulk) (Cut to 1.50 Inch Length) |
1 | superseded |
| 25 | 149126 |
ОБРАТНЫЙ КЛАПАН Double End CHECK VALVE Double End |
1 | |
| 26 | 892024122 |
ТРУБОПРОВОД (Общая длина 240.00") (Cut to 5.50 Inch Length) TUBING (240.00 Inches Bulk) (Cut to 5.50 Inch Length) |
1 | |
| 27 | 996642 |
ФИТИНГ Коленчатый патрубок, 90 градусов (0.125-27 x 0.250), нейлон (.125 Male) FITTING Elbow 90 Degree (.125-27 x .250) Nylon (.125 Male) |
1 | |
| 28 | 878609 |
ВИНТ (№10-16 x 0.600) SCREW (#10-16 x .600) |
1 | |
| 29 | 787994 |
ДАТЧИК SENDER |
1 | |
| 3 | 81742780 |
ВИНТ (M8 x 80) SCREW (M8 x 80) |
6 | |
| 30 | 889733 |
ФИКСАТОР RETAINER |
1 | |
| 31 | 56681 |
ШАЙБА (0.203 x 0.500 x 0.032) WASHER (.203 x .500 x .032) |
1 | superseded |
| 32 | 878609 |
ВИНТ (№10-16 x 0.600) SCREW (#10-16 x .600) |
1 | |
| 33 | 878609 |
ВИНТ (№10-16 x 0.600) (Quantity of 3 on Electric) SCREW (#10-16 x .600) (Quantity of 3 on Electric) |
1 | |
| 34 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") (Electric) TIE STRAP (8.00 Inches) (Electric) |
1 | |
| 35 | 8261151 |
ЗАЖИМ Соединитель (Electric) CLAMP Connector (Electric) |
1 | |
| 36 | 8161949 |
ШПИЛЬКА (M6 x 44) STUD (M6 x 44) |
2 | |
| 37 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal-Sterialization NOT SOLD SEPARATE Decal-Sterialization |
1 | |
| 38 | 8128672 |
ПРОКЛАДКА Included With Reference 1 GASKET Included With Reference 1 |
1 | |
| 39 | 8128821 |
ТАРЕЛЬЧАТЫЙ КЛАПАН POPPET |
1 | |
| 4 | 812888A2 |
СТАКАН В СБОРЕ CARRIER ASSEMBLY |
1 | |
| 40 | 812887002 |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 41 | 94182 |
ШАЙБА WASHER |
1 | |
| 42 | 69570 |
ВИНТ (№10-16 x 0.750) SCREW (#10-16 x .750) |
1 | |
| 43 | 47968 |
ПРУЖИНА SPRING |
1 | |
| 44 | F97068-2 |
ТЕРМОСТАТ 54°C (130°F) THERMOSTAT 54°C (130°F) |
1 | superseded |
| 44 | 895338 |
ТЕРМОСТАТ 62°C (143°F) THERMOSTAT 62°C (143°F) |
1 | |
| 45 | 190741 |
КРЫШКА COVER |
1 | superseded |
| 45 | 190742 |
КРЫШКА (Greenland) COVER (Greenland) |
1 | discontinued |
| 46 | 40011149 |
ВИНТ (M8 x 25), нержавеющая сталь Included With Reference #1 SCREW (M8 x 25) Stainless Steel Included With Reference #1 |
4 | |
| 47 | 62386001 |
ПРОКЛАДКА Thermostat (Included With Reference #1) GASKET Thermostat (Included With Reference #1) |
1 | superseded |
| 5 | 42657A3 |
ОБРАТНЫЙ КЛАПАН [1B859739] & Below CHECK VALVE [1B859739] & Below |
1 | |
| 5 | 42657A4 |
ОБРАТНЫЙ КЛАПАН [1B859740] & Up CHECK VALVE [1B859740] & Up |
1 | |
| 6 | 8282182 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | |
| 7 | 56759 |
ФИТИНГ Зазубренный Barbed (Electric) FITTING Barbed Barbed (Electric) |
1 | |
| 8 | 81742740 |
ВИНТ (M8 x 40) SCREW (M8 x 40) |
4 | |
| 9 | 85439001 |
СОЕДИНИТЕЛЬ Вилка CONNECTOR Male |
1 |
