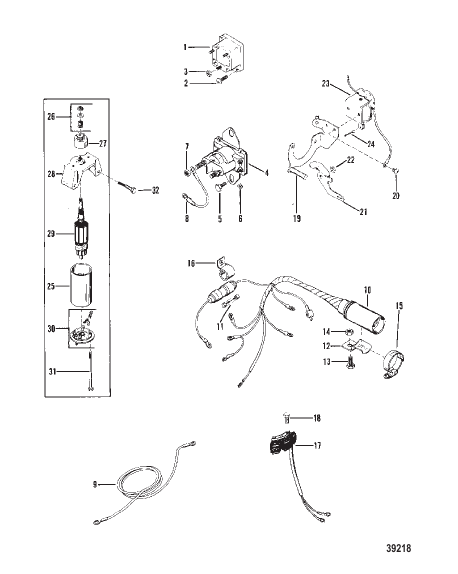

ELECTRIC COMPONENTS (ELECTRIC)
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 62351A2 |
ВЫПРЯМИТЕЛЬ В СБОРЕ RECTIFIER ASSEMBLY |
1 | superseded |
| 10 | 92436A3 |
ЖГУТ ПРОВОДОВ В СБОРЕ ENGINE HARNESS ASSEMBLY ENGINE |
1 | superseded |
| 11 | 95085 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ FUSE |
1 | discontinued |
| 12 | 92439 |
КРОНШТЕЙН WIRING HARNESS BRACKET WIRING HARNESS |
1 | |
| 13 | 4000327 |
ВИНТ (M6 x 14) BRACKET SCREW (M6 x 14) BRACKET |
1 | |
| 14 | 400212 |
ГАЙКА (M6), нержавеющая сталь BRACKET SCREW NUT (M6) Stainless Steel BRACKET SCREW |
1 | |
| 15 | 32779 |
ЗАЖИМ WIRING HARNESS CLAMP WIRING HARNESS |
1 | superseded |
| 16 | 55098 |
J-ЗАЖИМ WIRING HARNESS J CLIP WIRING HARNESS |
1 | superseded |
| 17 | 86704A2 |
СТАТОР В СБОРЕ AUXILIARY STATOR ASSEMBLY AUXILIARY |
1 | superseded |
| 18 | 4000123 |
ВИНТ (M5 x 30) STATOR ATTACHING SCREW (M5 x 30) STATOR ATTACHING |
3 | |
| 19 | 94301A1 |
ПЛАСТИНА В СБОРЕ CHOKE KNOB PLATE ASSEMBLY CHOKE KNOB |
1 | discontinued |
| 2 | 48409 |
ВИНТ (№10-16 x 0.625), нержавеющая сталь RECTIFIER TO CYLINDER BLOCK SCREW (#10-16 x .625) Stainless Steel RECTIFIER TO CYLINDER BLOCK |
2 | |
| 20 | 95088 |
ВИНТ PLATE TO SOLENOID SCREW PLATE TO SOLENOID |
2 | discontinued |
| 21 | 95020 |
РЫЧАГ CHOKE LEVER CHOKE |
1 | discontinued |
| 22 | 95019 |
КОЛЬЦО Стопор CHOKE LEVER TO PLATE RING Retaining CHOKE LEVER TO PLATE |
1 | |
| 23 | 94973A3 |
ЭЛЕКТРОМАГНИТНЫЙ КЛАПАН В СБОРЕ SOLENOID ASSEMBLY |
1 | discontinued |
| 24 | 21071 |
ШПЛИНТ CHOKE LEVER TO SOLENOID COTTER PIN CHOKE LEVER TO SOLENOID |
1 | superseded |
| 25 | 90983A1 |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | superseded |
| 26 | 96561 |
КОМПЛЕКТ ПРИВОДА DRIVE KIT |
1 | discontinued |
| 27 | 96562 |
ПРИВОД DRIVE |
1 | |
| 28 | 96563 |
КОЛПАЧОК END CAP |
1 | superseded |
| 29 | 96565 |
ЯКОРЬ ARMATURE |
1 | discontinued |
| 3 | 45076 |
ГАЙКА (№10-32), латунь RECTIFIER TERMINALS NUT (#10-32) Brass RECTIFIER TERMINALS |
3 | |
| 30 | 96564 |
КОЛПАЧОК COMMUTATOR W/SPRINGS AND BRUSHES END CAP COMMUTATOR W/SPRINGS AND BRUSHES |
1 | superseded |
| 31 | 96566 |
СКВОЗНОЙ БОЛТ THRU BOLT |
1 | discontinued |
| 32 | 40001149 |
ВИНТ (M8 x 50) STARTER MOTOR ATTACHING SCREW (M8 x 50) STARTER MOTOR ATTACHING |
2 | superseded |
| 4 | 91975 |
ЭЛЕКТРОМАГНИТ Стартер SOLENOID Starter |
1 | superseded |
| 5 | 4000168 |
ВИНТ (M6 x 14) SCREW (M6 x 14) |
2 | superseded |
| 6 | 26419 |
ГАЙКА (№8-32), латунь STARTER SOLENOID TERMINAL (10-32) NUT (#8-32) Brass STARTER SOLENOID TERMINAL (10-32) |
2 | |
| 7 | 64015 |
ГАЙКА (0.250-20) STARTER SOLENOID TERMINAL (1/4-20) NUT (.250-20) STARTER SOLENOID TERMINAL (1/4-20) |
2 | |
| 8 | 88809A5 |
ПРОВОД В СБОРЕ YELLOW WIRE ASSEMBLY YELLOW |
1 | |
| 9 | 88439A8 |
КАБЕЛЬ В СБОРЕ Аккумулятор RED CABLE ASSEMBLY Battery RED |
1 | superseded |
| 9 | 88439A6 |
КАБЕЛЬ В СБОРЕ Аккумулятор BLACK CABLE ASSEMBLY Battery BLACK |
1 | superseded |
