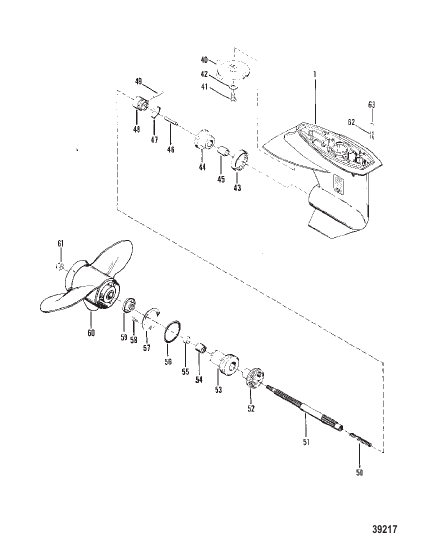

GEAR HOUSING (PROPELLER SHAFT)
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8157A7 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE SHORT SHAFT GEAR HOUSING ASSEMBLY COMPLETE SHORT SHAFT |
1 | superseded |
| - | 8157A8 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE LONG SHAFT GEAR HOUSING ASSEMBLY COMPLETE LONG SHAFT |
1 | superseded |
| - | 85168A80 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| - | 85090A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ Водяной насос SEAL KIT Water Pump |
1 | discontinued |
| 1 | 8157A6 |
КАРТЕР РЕДУКТОРА В СБОРЕ BASIC GEAR HOUSING ASSEMBLY BASIC |
1 | discontinued |
| 40 | 94286 |
ТРАНЦЕВАЯ ПЛИТА TRIM TAB |
1 | superseded |
| 41 | 4000352 |
ВИНТ (M8 x 20) TRIM TAB SCREW (M8 x 20) TRIM TAB |
1 | |
| 42 | 85169 |
ЛЕПЕСТКОВАЯ ШАЙБА TRIM TAB SCREW TAB WASHER TRIM TAB SCREW |
1 | discontinued |
| 43 | 85555A1 |
БЛОК ПОДШИПНИКА Ролик TAPERED BEARING ASSEMBLY Roller TAPERED |
1 | discontinued |
| 44 | 85135A2 |
РЕДУКТОР В СБОРЕ Передняя GEAR ASSEMBLY Forward |
1 | discontinued |
| 45 | 85557 |
ВТУЛКА FORWARD GEAR BUSHING FORWARD GEAR |
1 | |
| 46 | 85094 |
ТОЛКАТЕЛЬ Кулачок FOLLOWER Cam |
1 | |
| 47 | 38114 |
ПРУЖИНА RETAINING - CROSS PIN SPRING RETAINING - CROSS PIN |
1 | |
| 48 | 85133 |
МУФТА СЦЕПЛЕНИЯ SLIDING CLUTCH SLIDING |
1 | discontinued |
| 49 | 85093 |
ШТИФТ CLUTCH TO PROPELLER SHAFT PIN CLUTCH TO PROPELLER SHAFT |
1 | superseded |
| 50 | 88680 |
ПРУЖИНА COMPRESSION - PROPELLER SHAFT SPRING COMPRESSION - PROPELLER SHAFT |
1 | discontinued |
| 51 | 85134 |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | superseded |
| 52 | 85131 |
ПЕРЕДАЧА Задняя GEAR Reverse |
1 | superseded |
| 53 | 85136A1 |
СТАКАН В СБОРЕ Подшипник CARRIER ASSEMBLY Bearing |
1 | superseded |
| 54 | 21739 |
ПОДШИПНИК Ролик BEARING Roller |
1 | |
| 55 | 98283 |
УПЛОТНЕНИЕ Масло BEARING CARRIER SEAL Oil BEARING CARRIER |
1 | discontinued |
| 56 | 85549 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО BEARING CARRIER O-RING BEARING CARRIER |
1 | |
| 57 | 87293 |
ПЛАСТИНА GEAR HOUSING PLATE GEAR HOUSING |
1 | |
| 58 | 91909 |
ВИНТ COVER TO GEAR HOUSING (16MM) SCREW COVER TO GEAR HOUSING (16MM) |
3 | superseded |
| 59 | 85128A1 |
УПОРНАЯ ВТУЛКА В СБОРЕ PROPELLER THRUST HUB ASSEMBLY PROPELLER |
1 | superseded |
| 60 | 86848A4 |
ГРЕБНОЙ ВИНТ В СБОРЕ PROPELLER ASSEMBLY |
1 | superseded |
| 61 | 88228 |
ГАЙКА ГРЕБНОГО ВИНТА PROP NUT |
1 | |
| 62 | 4000353 |
ВИНТ (M8 x 25) GEAR HOUSING SCREW (M8 x 25) GEAR HOUSING |
4 | |
| 63 | 4002317 |
ШАЙБА (8,90 x 17,0 x 1,9 нерж. сталь) GEAR HOUSING SCREW WASHER (8.90 X 17.0 X 1.9SS) GEAR HOUSING SCREW |
4 |
