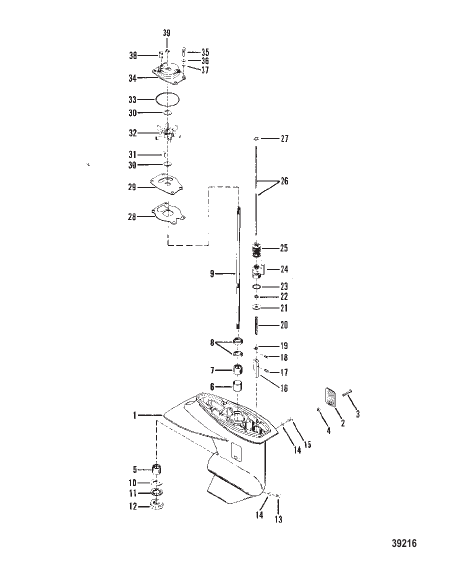

GEAR HOUSING (DRIVESHAFT)
Parts (48)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8157A7 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (SHORT SHAFT) GEAR HOUSING ASSEMBLY COMPLETE (SHORT SHAFT) |
1 | superseded |
| - | 8157A8 |
КАРТЕР РЕДУКТОРА В СБОРЕ COMPLETE (LONG SHAFT) GEAR HOUSING ASSEMBLY COMPLETE (LONG SHAFT) |
1 | superseded |
| - | 85168A80 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| - | 99157A2 |
РЕМОНТНЫЙ КОМПЛЕКТ Водяной насос REPAIR KIT Water Pump |
1 | superseded |
| - | 85090A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ Водяной насос SEAL KIT Water Pump |
1 | discontinued |
| 1 | 8157A6 |
КАРТЕР РЕДУКТОРА В СБОРЕ BASIC GEAR HOUSING ASSEMBLY BASIC |
1 | discontinued |
| 10 | 94056 |
ШАЙБА THRUST - DRIVESHAFT (.080 THICK) WASHER THRUST - DRIVESHAFT (.080 THICK) |
AR | discontinued |
| 10 | 96524 |
ШАЙБА THRUST - DRIVESHAFT - SEE NOTE (.234 THICK) WASHER THRUST - DRIVESHAFT - SEE NOTE (.234 THICK) |
AR | superseded |
| 11 | 85560 |
ПОДШИПНИК Упор DRIVESHAFT (SEE NOTE) BEARING Thrust DRIVESHAFT (SEE NOTE) |
1 | |
| 12 | 85132 |
ПЕРЕДАЧА Шестерня GEAR Pinion |
1 | discontinued |
| 13 | 67892 |
ВИНТ Магнитный DRAIN SCREW Magnetic DRAIN |
1 | superseded |
| 14 | 20260 |
ШАЙБА DRAIN AND FILLER SCREW WASHER DRAIN AND FILLER SCREW |
2 | superseded |
| 15 | 79953 |
ВИНТ (0.375-16 x 0.250) GREASE FILLER SCREW (.375-16 x .250) GREASE FILLER |
1 | superseded |
| 16 | 85562A1 |
КУЛАЧОК В СБОРЕ SHIFT CAM ASSEMBLY SHIFT |
1 | discontinued |
| 17 | 85096 |
ШТИФТ Привод SHIFT CAM PIN Drive SHIFT CAM |
1 | |
| 18 | 85593 |
ШТИФТ (0.078 x 0.437) SHIFT SHAFT PIN (.078 x .437) SHIFT SHAFT |
1 | |
| 19 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь SHIFT SHAFT WASHER (.281 x .500 x .060) Stainless Steel SHIFT SHAFT |
1 | superseded |
| 2 | 98488 |
ЭКРАН WATER INLET STARBOARD SCREEN WATER INLET STARBOARD |
1 | discontinued |
| 2 | 98487 |
ЭКРАН WATER INLET PORT SCREEN WATER INLET PORT |
1 | discontinued |
| 20 | 93007 |
ПРУЖИНА SHIFT SHAFT SPRING SHIFT SHAFT |
1 | |
| 21 | 85091 |
ШАЙБА SHIFT SHAFT WASHER SHIFT SHAFT |
1 | |
| 22 | 85594 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.239 x 0.174) SHIFT SHAFT O-RING (.239 x .174) SHIFT SHAFT |
1 | |
| 23 | 20365 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО SHIFT SHAFT RETAINER O-RING SHIFT SHAFT RETAINER |
1 | superseded |
| 24 | 93878 |
ФИКСАТОР SHIFT SHAFT RETAINER SHIFT SHAFT |
1 | discontinued |
| 25 | 85552 |
ЧЕХОЛ SHIFT SHAFT BOOT SHIFT SHAFT |
1 | superseded |
| 26 | 85126 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ SHORT SHAFT SHIFT SHAFT SHORT SHAFT |
1 | discontinued |
| 26 | 86293 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ LONG SHAFT SHIFT SHAFT LONG SHAFT |
1 | discontinued |
| 27 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь SHIFT SHAFT - UPPER WASHER (.281 x .500 x .060) Stainless Steel SHIFT SHAFT - UPPER |
1 | superseded |
| 28 | 85087 |
ПРОКЛАДКА WATER PUMP GASKET WATER PUMP |
1 | superseded |
| 29 | 85083 |
ЦИФЕРБЛАТ FACE PLATE |
1 | |
| 3 | 40031112 |
ВИНТ (M5 x 40) SCREEN TO GEAR HOUSING SCREW (M5 x 40) SCREEN TO GEAR HOUSING |
1 | |
| 30 | 86645 |
ШАЙБА IMPELLER WASHER IMPELLER |
2 | superseded |
| 31 | 85119 |
КЛЮЧ IMPELLER DRIVE KEY IMPELLER DRIVE |
1 | superseded |
| 32 | 85089 |
КРЫЛЬЧАТКА IMPELLER |
1 | superseded |
| 33 | 69202 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО WATER PUMP O-RING WATER PUMP |
1 | |
| 34 | 99157A2 |
РЕМОНТНЫЙ КОМПЛЕКТ Водяной насос REPAIR KIT Water Pump |
1 | superseded |
| 35 | 400035 |
ВИНТ (M5 x 16) WATER PUMP TO GEAR HOUSING SCREW (M5 x 16) WATER PUMP TO GEAR HOUSING |
4 | discontinued |
| 36 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) WATER PUMP SCREW WASHER (.203 x .406 x .040) WATER PUMP SCREW |
4 | |
| 37 | 85095 |
ВТУЛКА WATER PUMP SCREW BUSHING WATER PUMP SCREW |
4 | superseded |
| 38 | 85090 |
УПЛОТНЕНИЕ WATER TUBE SEAL WATER TUBE |
1 | superseded |
| 39 | 86203 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО DRIVE SHAFT - RUBBER O-RING DRIVE SHAFT - RUBBER |
1 | |
| 4 | 400263 |
ГАЙКА (M5) SCREEN SCREW NUT (M5) SCREEN SCREW |
1 | discontinued |
| 5 | 85559 |
ПОДШИПНИК Ролик LOWER (SEE NOTE) BEARING Roller LOWER (SEE NOTE) |
1 | discontinued |
| 6 | 85092 |
РУКАВ UPPER ROLLING BEARING SLEEVE UPPER ROLLING BEARING |
1 | discontinued |
| 7 | 85558 |
ПОДШИПНИК Ролик UPPER BEARING Roller UPPER |
1 | discontinued |
| 8 | 33467 |
УПЛОТНЕНИЕ Масло GEAR HOUSING SEAL Oil GEAR HOUSING |
2 | superseded |
| 9 | 98084 |
ВЕДУЩИЙ ВАЛ SHORT SHAFT DRIVESHAFT SHORT SHAFT |
1 | discontinued |
| 9 | 98085 |
ВЕДУЩИЙ ВАЛ LONG SHAFT DRIVESHAFT LONG SHAFT |
1 | discontinued |
