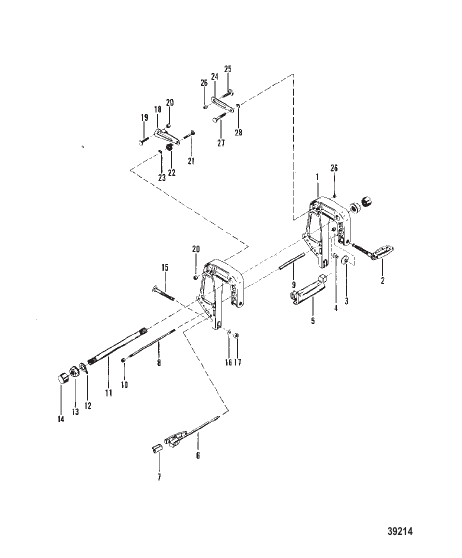

CLAMP BRACKET ASSEMBLY
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8466A2 |
КРОНШТЕЙН ФИКСАТОРА В СБОРЕ CLAMP BRACKET ASSEMBLY |
2 | superseded |
| 10 | 400213 |
ГАЙКА (M8), нержавеющая сталь CLAMP BRACKET STUD NUT (M8) Stainless Steel CLAMP BRACKET STUD |
2 | |
| 11 | 85151 |
ТРУБА НАКЛОНА TILT TUBE |
1 | discontinued |
| 12 | 30954 |
ЗАЖИМ SAFETY CLIP SAFETY |
1 | superseded |
| 13 | 93164 |
ГАЙКА (0.875) TILT TUBE NUT (.875) TILT TUBE |
2 | |
| 14 | 53078 |
ПРОБКА TILT TUBE CAP TILT TUBE |
2 | discontinued |
| 15 | 69064 |
БОЛТ (0.312-18 x 2.750) CLAMP BRACKET TO TRANSOM BOLT (.312-18 x 2.750) CLAMP BRACKET TO TRANSOM |
2 | discontinued |
| 16 | 67981 |
ШАЙБА CLAMP BRACKET BOLT WASHER CLAMP BRACKET BOLT |
2 | |
| 17 | 67980 |
ГАЙКА (0.312-18) CLAMP BRACKET BOLT NUT (.312-18) CLAMP BRACKET BOLT |
2 | superseded |
| 18 | 96965 |
РЫЧАГ TILT STOP - PORT SIDE LEVER TILT STOP - PORT SIDE |
1 | |
| 19 | 41433 |
ВИНТ (0.250-28 x 1.00) LEVER TO SWIVEL BRACKET SCREW (.250-28 x 1.00) LEVER TO SWIVEL BRACKET |
1 | discontinued |
| 2 | 92767A1 |
ВИНТ С НАКАТАННОЙ ГОЛОВКОЙ В СБОРЕ (14 мм) THUMB SCREW ASSEMBLY (14 mm) |
2 | |
| 20 | 35045 |
ГАЙКА (0.250-28) TILT STOP LEVER SCREW NUT (.250-28) TILT STOP LEVER SCREW |
1 | superseded |
| 21 | 41524 |
ВИНТ (0.250-28 x 1.75) LEVER TO CLAMP BRACKET SCREW (.250-28 x 1.75) LEVER TO CLAMP BRACKET |
1 | |
| 22 | 85167 |
ПРУЖИНА TILT STOP LEVER SCREW SPRING TILT STOP LEVER SCREW |
1 | superseded |
| 23 | 31030 |
ВОЛНИСТАЯ ШАЙБА TILT STOP LEVER SCREW WAVE WASHER TILT STOP LEVER SCREW |
1 | |
| 24 | 90901 |
СКОБА TILT STOP - STARBOARD SIDE STRAP TILT STOP - STARBOARD SIDE |
1 | |
| 25 | 41433 |
ВИНТ (0.250-28 x 1.00) LEVER TO SWIVEL BRACKET SCREW (.250-28 x 1.00) LEVER TO SWIVEL BRACKET |
1 | discontinued |
| 26 | 35045 |
ГАЙКА (0.250-28) TILT STOP LEVER SCREW NUT (.250-28) TILT STOP LEVER SCREW |
1 | superseded |
| 27 | 41524 |
ВИНТ (0.250-28 x 1.75) LEVER TO CLAMP BRACKET SCREW (.250-28 x 1.75) LEVER TO CLAMP BRACKET |
1 | |
| 28 | 31030 |
ВОЛНИСТАЯ ШАЙБА TILT STOP LEVER SCREW WAVE WASHER TILT STOP LEVER SCREW |
1 | |
| 3 | 73719 |
ШАЙБА THUMB SCREW WASHER THUMB SCREW |
2 | discontinued |
| 4 | 76804 |
ВИНТ WASHER ATTACHING SCREW WASHER ATTACHING |
2 | superseded |
| 5 | 85155 |
РУКОЯТКА CARRYING HANDLE CARRYING |
1 | discontinued |
| 6 | 99929A1 |
ПАЛЕЦ В СБОРЕ Наклон USE WITHOUT REF. #7 PIN ASSEMBLY Tilt USE WITHOUT REF. #7 |
1 | discontinued |
| 6 | 97296A1 |
ПАЛЕЦ В СБОРЕ Наклон USED WITH REF. #7 PIN ASSEMBLY Tilt USED WITH REF. #7 |
1 | superseded |
| 7 | 90884 |
ЗАЖИМ Пружина TILT PIN CLIP Spring TILT PIN |
1 | discontinued |
| 8 | 85099 |
ШПИЛЬКА CLAMP BRACKET STUD CLAMP BRACKET |
1 | discontinued |
| 9 | 85100 |
ПРОСТАВКА CLAMP BRACKET STUD SPACER CLAMP BRACKET STUD |
1 | discontinued |
