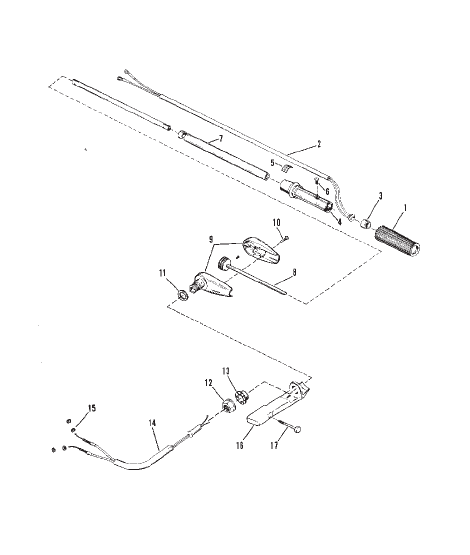

STEERING HANDLE ASSEMBLY (MANUAL)
Parts (19)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 94185A3 |
РУКОЯТКА В СБОРЕ Рулевой механизм (25 л.с., 2-тактн.) HANDLE ASSEMBLY Steering (25 Hp 2-Stroke) |
1 | superseded |
| 1 | 92770 |
РУКОЯТКА RUBBER GRIP RUBBER |
1 | superseded |
| 10 | 4005688 |
ВИНТ (M4 x 20) BRACKET CLAMPING SCREW (M4 x 20) BRACKET CLAMPING |
3 | discontinued |
| 11 | 57860 |
ШАЙБА NYLON - BRACKET WASHER NYLON - BRACKET |
1 | discontinued |
| 12 | 96787 |
ГАЙКА BRACKET NUT BRACKET |
1 | superseded |
| 13 | 85973 |
ВТУЛКА BRACKET BUSHING BRACKET |
1 | discontinued |
| 14 | 93937 |
КАБЕЛЬ THROTTLE CABLE THROTTLE |
1 | superseded |
| 15 | 400212 |
ГАЙКА (M6), нержавеющая сталь THROTTLE CABLE NUT (M6) Stainless Steel THROTTLE CABLE |
4 | |
| 16 | 96710A1 |
КРОНШТЕЙН В СБОРЕ STEERING BRACKET ASSEMBLY STEERING |
1 | superseded |
| 17 | 4000384 |
ВИНТ (M10 x 80) BRACKET TO SWIVEL TUBE SCREW (M10 x 80) BRACKET TO SWIVEL TUBE |
2 | |
| 2 | 89591A2 |
ЖГУТ ПРОВОДОВ В СБОРЕ STOP SWITCH HARNESS ASSEMBLY STOP SWITCH |
1 | superseded |
| 3 | 55741A1 |
ЧЕХОЛ В СБОРЕ STOP SWITCH BOOT ASSEMBLY STOP SWITCH |
1 | superseded |
| 4 | 96495A1 |
РУКОЯТКА В СБОРЕ THROTTLE HANDLE ASSEMBLY THROTTLE |
1 | superseded |
| 5 | 90385 |
НАКЛЕЙКА THROTTLE HANDLE DECAL THROTTLE HANDLE |
1 | superseded |
| 6 | 62568 |
ВИНТ (№10-16 x 0.375) THROTTLE HANDLE SCREW (#10-16 x .375) THROTTLE HANDLE |
1 | |
| 7 | 99333A2 |
ТРУБА В СБОРЕ STEERING TUBE ASSEMBLY STEERING |
1 | discontinued |
| 8 | 97548A1 |
ТРУБА В СБОРЕ [USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767] & Below TUBE ASSEMBLY [USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767] & Below |
1 | superseded |
| 8 | 41590A1 |
ТРУБА В СБОРЕ [USA-6055408/BEL-9340566/CAN-7186768] & Up TUBE ASSEMBLY [USA-6055408/BEL-9340566/CAN-7186768] & Up |
1 | superseded |
| 9 | 94185A4 |
КРОНШТЕЙН В СБОРЕ BRACKET ASSEMBLY |
1 | superseded |
