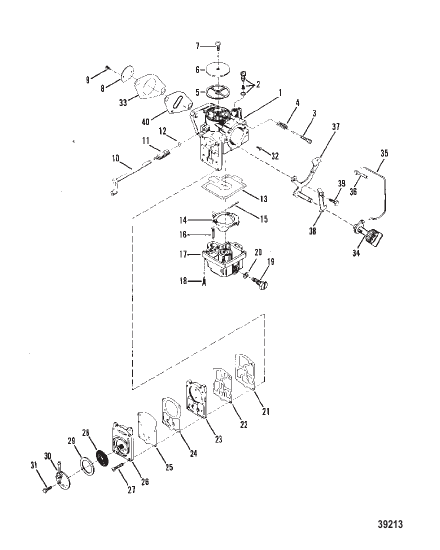

CARBURETOR ASSEMBLY
Parts (52)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8153 |
РЕМОНТНЫЙ КОМПЛЕКТ Карбюратор REPAIR KIT Carburetor |
1 | |
| - | 8154 |
КОМПЛЕКТ ПРОКЛАДОК Карбюратор GASKET KIT Carburetor |
1 | |
| - | 85168A80 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 7484 |
КАРБЮРАТОР В СБОРЕ TILLOTSON #BC1B CARBURETOR ASSEMBLY TILLOTSON #BC1B |
1 | superseded |
| 1 | 8498 |
КАРБЮРАТОР В СБОРЕ TILLOTSON #BC1C CARBURETOR ASSEMBLY TILLOTSON #BC1C |
1 | superseded |
| 10 | 8151 |
ВАЛ Дроссельная заслонка SHAFT Throttle |
1 | discontinued |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring-Return-Throttle Shaft NOT SOLD SEPARATE Spring-Return-Throttle Shaft |
1 | |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО E-Ring-Throttle Shaft NOT SOLD SEPARATE E-Ring-Throttle Shaft |
1 | |
| 13 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Fuel Bowl NOT SOLD SEPARATE Gasket-Fuel Bowl |
1 | |
| 14 | 8139 |
ПОПЛАВОК (BC1A AND BC1B) FLOAT (BC1A AND BC1B) |
1 | discontinued |
| 14 | 8655 |
ПОПЛАВОК (BC1C) FLOAT (BC1C) |
1 | discontinued |
| 15 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Float Pin NOT SOLD SEPARATE Float Pin |
1 | |
| 16 | 8143 |
ИГЛА И СЕДЛО Впуск NEEDLE AND SEAT Inlet |
1 | discontinued |
| 17 | 8140 |
КАМЕРА Топливо (BC1A AND BC1B) BOWL Fuel (BC1A AND BC1B) |
1 | discontinued |
| 17 | 8656 |
КАМЕРА Топливо (BC1C) BOWL Fuel (BC1C) |
1 | discontinued |
| 18 | 8141 |
ВИНТ FUEL BOWL SCREW FUEL BOWL |
4 | discontinued |
| 19 | 8178 |
ВОДОМЕТНЫЙ Главн. (0.067) JET Main (.067) |
1 | discontinued |
| 19 | 8176 |
ВОДОМЕТНЫЙ Главн. (0.063) JET Main (.063) |
OPT | superseded |
| 19 | 8177 |
ВОДОМЕТНЫЙ Главн. (0.065) JET Main (.065) |
OPT | superseded |
| 19 | 8319 |
ВОДОМЕТНЫЙ Главн. (0.070) JET Main (.070) |
OPT | superseded |
| 2 | 8138 |
КЛАПАН Обогащение VALVE Enrichment |
1 | discontinued |
| 20 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Main Jet NOT SOLD SEPARATE Gasket-Main Jet |
1 | |
| 21 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Fuel Pump Diaphragm NOT SOLD SEPARATE Gasket-Fuel Pump Diaphragm |
1 | |
| 22 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Diaphragm-Fuel Pump NOT SOLD SEPARATE Diaphragm-Fuel Pump |
1 | |
| 23 | 8142 |
КОРПУС FUEL PUMP BODY FUEL PUMP |
1 | discontinued |
| 24 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Fuel Pump Diaphragm NOT SOLD SEPARATE Gasket-Fuel Pump Diaphragm |
1 | |
| 25 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Diaphragm-Fuel Pump NOT SOLD SEPARATE Diaphragm-Fuel Pump |
1 | |
| 26 | 8147 |
КОРПУС STRAINER BODY STRAINER |
1 | discontinued |
| 27 | 8148 |
ВИНТ STRAINER BODY SCREW STRAINER BODY |
4 | discontinued |
| 28 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screen-Strainer NOT SOLD SEPARATE Screen-Strainer |
1 | |
| 29 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Strainer Cover NOT SOLD SEPARATE Gasket-Strainer Cover |
1 | |
| 3 | 8320 |
ВИНТ IDLE SCREW IDLE |
1 | superseded |
| 30 | 8149 |
КРЫШКА STRAINER COVER STRAINER |
1 | superseded |
| 31 | 8150 |
ВИНТ STRAINER COVER SCREW STRAINER COVER |
1 | discontinued |
| 32 | 6247 |
ВОДОМЕТНЫЙ Главн. (0.090) BACK-DRAG BC1C JET Main (.090) BACK-DRAG BC1C |
1 | |
| 32 | 6202 |
ВОДОМЕТНЫЙ, ГЛАВН. BACK-DRAG (.088) BC1C JET MAIN BACK-DRAG (.088) BC1C |
OPT | discontinued |
| 32 | 5733 |
ВОДОМЕТНЫЙ Главн. (0.092) BACK-DRAG BC1C JET Main (.092) BACK-DRAG BC1C |
OPT | |
| 33 | 88004 |
ПРОКЛАДКА Carburetor GASKET Carburetor |
1 | |
| 34 | 98183A1 |
РУКОЯТКА В СБОРЕ Обогатитель KNOB ASSEMBLY Choke |
1 | discontinued |
| 35 | 89762 |
ШТОК Обогатитель ROD Choke |
1 | discontinued |
| 36 | 89668 |
ЗАЖИМ CHOKE ROD CLIP CHOKE ROD |
1 | discontinued |
| 37 | 89402A1 |
ПЛАСТИНА В СБОРЕ CHOKE KNOB MANUAL PLATE ASSEMBLY CHOKE KNOB MANUAL |
1 | discontinued |
| 37 | 94301A1 |
ПЛАСТИНА В СБОРЕ CHOKE KNOB ELECTRIC PLATE ASSEMBLY CHOKE KNOB ELECTRIC |
1 | discontinued |
| 38 | 92333 |
СОЕДИНИТЕЛЬ CHOKE DETENT LINK CHOKE DETENT |
1 | discontinued |
| 39 | 400018 |
ВИНТ (M5 x 12) LINK AND PLATE TO CARBURETOR SCREW (M5 x 12) LINK AND PLATE TO CARBURETOR |
2 | |
| 4 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring-Idle Screw NOT SOLD SEPARATE Spring-Idle Screw |
1 | |
| 40 | 96046 |
ПЛАСТИНА CARBURETOR (ITALY ENGINES ONLY) PLATE CARBURETOR (ITALY ENGINES ONLY) |
1 | discontinued |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Metering Cover NOT SOLD SEPARATE Gasket-Metering Cover |
1 | |
| 6 | 8145 |
КРЫШКА METERING COVER METERING |
1 | discontinued |
| 7 | 8146 |
ВИНТ METERING COVER SCREW METERING COVER |
1 | discontinued |
| 8 | 8152 |
ЗАСЛОНКА Дроссельная заслонка SHUTTER Throttle |
1 | discontinued |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw-Throtttle Shutter NOT SOLD SEPARATE Screw-Throtttle Shutter |
2 |
