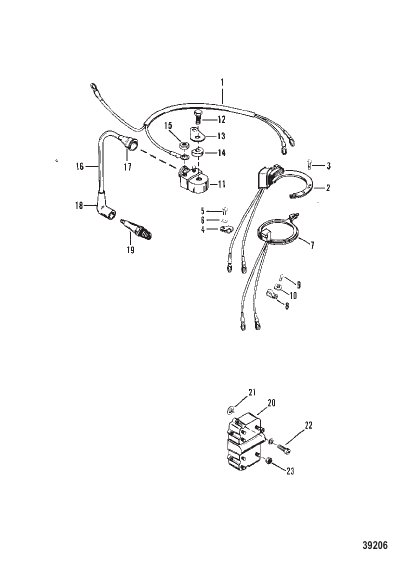

IGNITION COMPONENTS
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 88891A1 |
ЖГУТ ПРОВОДОВ В СБОРЕ PRIMARY HARNESS ASSEMBLY PRIMARY |
1 | discontinued |
| 10 | 69205 |
C-ШАЙБА CLIP SCREW C WASHER CLIP SCREW |
1 | superseded |
| 11 | 7370A6 |
КАТУШКА В СБОРЕ Зажигание COIL ASSEMBLY Ignition |
2 | superseded |
| 12 | 4000189 |
ВИНТ (M6 x 45) COIL TO CYLINDER BLOCK SCREW (M6 x 45) COIL TO CYLINDER BLOCK |
2 | discontinued |
| 13 | 88173 |
ЛЕПЕСТКОВАЯ ШАЙБА COIL SCREW TAB WASHER COIL SCREW |
2 | |
| 14 | 88171 |
ВТУЛКА COIL SCREW BUSHING COIL SCREW |
2 | |
| 15 | 45076 |
ГАЙКА (№10-32), латунь COIL TERMINAL NUT (#10-32) Brass COIL TERMINAL |
4 | |
| 16 | 90816A25 |
ПРОВОД В СБОРЕ HIGH TENSION WIRE ASSEMBLY HIGH TENSION |
2 | superseded |
| 17 | 70674 |
ЧЕХОЛ COIL BOOT COIL |
2 | superseded |
| 18 | 63709A1 |
КОМПЛЕКТ ЧЕХЛА/КЛЕММ SPARK PLUG BOOT/TERMINAL KIT SPARK PLUG |
2 | |
| 19 | 86864 |
СВЕЧА ЗАЖИГАНИЯ CHAMPION #L-77J4 SPARK PLUG CHAMPION #L-77J4 |
2 | superseded |
| 19 | 86866 |
СВЕЧА ЗАЖИГАНИЯ CHAMPION #QL-77J4 CANADA AND BELGIUM SPARK PLUG CHAMPION #QL-77J4 CANADA AND BELGIUM |
2 | superseded |
| 2 | 86617A5 |
СТАТОР В СБОРЕ STATOR ASSEMBLY |
1 | superseded |
| 20 | 7452A3 |
РАСПРЕДЕЛИТЕЛЬНАЯ КОРОБКА В СБОРЕ SWITCHBOX ASSEMBLY |
1 | discontinued |
| 21 | 69432 |
СТОПОРНАЯ ШАЙБА Внешний (№10) GROUND LOCKWASHER External (#10) GROUND |
1 | |
| 22 | 40057108 |
ВИНТ (M5 x 20) SWITCH BOX TO CYLINDER BLOCK SCREW (M5 x 20) SWITCH BOX TO CYLINDER BLOCK |
3 | superseded |
| 23 | 45076 |
ГАЙКА (№10-32), латунь SWITCH BOX TERMINALS NUT (#10-32) Brass SWITCH BOX TERMINALS |
6 | |
| 3 | 4000120 |
ВИНТ (M5 x 25) STATOR ATTACHING SCREW (M5 x 25) STATOR ATTACHING |
2 | discontinued |
| 3 | 400015 |
ВИНТ (M5 x 10) STATOR ATTACHING MANUAL SCREW (M5 x 10) STATOR ATTACHING MANUAL |
2 | discontinued |
| 4 | 23568 |
ЗАЖИМ STATOR LEADS CLIP STATOR LEADS |
1 | superseded |
| 5 | 40057108 |
ВИНТ (M5 x 20) CLIP TO SWITCH BOX SCREW (M5 x 20) CLIP TO SWITCH BOX |
1 | superseded |
| 6 | 27736 |
ШАЙБА CLIP SCREW WASHER CLIP SCREW |
1 | superseded |
| 7 | 93880A1 |
ТРИГГЕР В СБОРЕ [USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767] & Up TRIGGER ASSEMBLY [USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767] & Up |
1 | superseded |
| 7 | 98450A1 |
ТРИГГЕР В СБОРЕ [USA-6055408/BEL-9340565/CAN-7186768] & Up TRIGGER ASSEMBLY [USA-6055408/BEL-9340565/CAN-7186768] & Up |
1 | superseded |
| 8 | 24836 |
ЗАЖИМ TRIGGER LEADS CLIP TRIGGER LEADS |
1 | |
| 9 | 77137 |
ВИНТ (0.190-16 x 0.620) CLIP TO CRANKCASE SCREW (.190-16 x .620) CLIP TO CRANKCASE |
1 |
