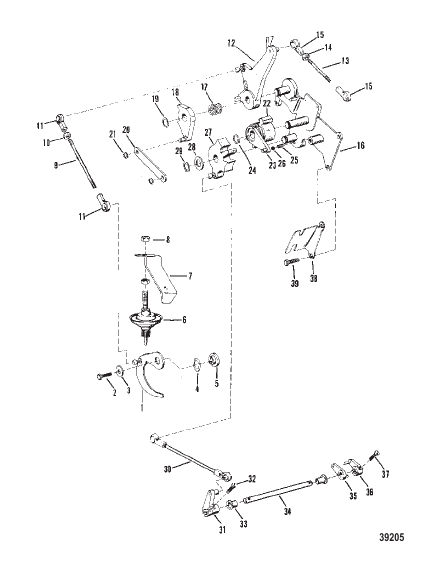

THROTTLE AND SHIFT LINKAGE (MANUAL)
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 87997A1 |
КУЛАЧОК Дроссельная заслонка (USE WITH BC1A CARBURETOR) CAM Throttle (USE WITH BC1A CARBURETOR) |
1 | discontinued |
| 1 | 96096 |
КУЛАЧОК Дроссельная заслонка (USE WITH BC1B/BC1C CARBURETORS) CAM Throttle (USE WITH BC1B/BC1C CARBURETORS) |
1 | discontinued |
| 10 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь LOCK - THROTTLE ROD NUT (#10-32) Stainless Steel LOCK - THROTTLE ROD |
1 | |
| 11 | 98465 |
ГНЕЗДО THROTTLE ROD SOCKET THROTTLE ROD |
2 | superseded |
| 12 | 92730 |
РЫЧАГ CONTROL LEVER CONTROL |
1 | discontinued |
| 13 | 98464A1 |
РАСПРЕДЕЛИТЕЛЬНЫЙ ШАТУН TIMING ROD |
1 | superseded |
| 14 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь LOCK - TIMING ROD NUT (#10-32) Stainless Steel LOCK - TIMING ROD |
1 | |
| 15 | 98465 |
ГНЕЗДО TIMING ROD SOCKET TIMING ROD |
2 | superseded |
| 16 | 93741 |
ПЛАТФОРМА CONTROL PLATFORM CONTROL |
1 | superseded |
| 17 | 89540 |
ПРУЖИНА SPARK ADVANCE SPRING SPARK ADVANCE |
1 | |
| 18 | 93779 |
РЫЧАГ ACTUATING LEVER ACTUATING |
1 | superseded |
| 19 | 46250 |
КОЛЬЦО Стопор RING Retaining |
1 | discontinued |
| 2 | 4000114 |
ВИНТ (M5 x 16) THROTTLE CAM TO CRANKCASE SCREW (M5 x 16) THROTTLE CAM TO CRANKCASE |
1 | superseded |
| 20 | 86717 |
СОЕДИНИТЕЛЬ THROTTLE/ADVANCE LINK THROTTLE/ADVANCE |
1 | superseded |
| 21 | 86731 |
СТОПОРНОЕ КОЛЬЦО THROTTLE/ADVANCE LINK RETANINING RING THROTTLE/ADVANCE LINK |
2 | discontinued |
| 22 | 94152 |
ПЕРЕДАЧА GEAR |
1 | discontinued |
| 23 | 92362 |
РЫЧАГ PRIMARY LEVER PRIMARY |
1 | superseded |
| 24 | 46250 |
КОЛЬЦО Стопор PRIMARY LEVER AND GEAR RING Retaining PRIMARY LEVER AND GEAR |
1 | discontinued |
| 25 | 93006 |
ПРУЖИНА DETENT BALL SPRING DETENT BALL |
1 | superseded |
| 26 | 93008 |
ШАРИК DETENT BALL DETENT |
1 | |
| 27 | 94085 |
ПЕРЕДАЧА SHIFT GEAR SHIFT |
1 | superseded |
| 28 | 49339 |
ШАЙБА (0.8125) SHIFT GEAR WASHER (.8125) SHIFT GEAR |
1 | |
| 29 | 46250 |
КОЛЬЦО Стопор SHIFT GEAR RING Retaining SHIFT GEAR |
1 | discontinued |
| 3 | 87791 |
ШАЙБА THROTTLE CAM SCREW WASHER THROTTLE CAM SCREW |
1 | discontinued |
| 30 | 962552 |
ШТОК ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ SHIFT ROD |
1 | superseded |
| 31 | 94084 |
РЫЧАГ SHIFT ROD LEVER SHIFT ROD |
1 | discontinued |
| 32 | 4001589 |
РЫЧАГ Шток переключения передач LEVER Shift Rod |
1 | discontinued |
| 33 | 60762 |
ВТУЛКА SHIFT SHAFT BUSHING SHIFT SHAFT |
2 | |
| 34 | 87794 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ HORIZONTAL SHIFT SHAFT HORIZONTAL |
1 | |
| 35 | 93744 |
РЫЧАГ SHIFT SHAFT LEVER SHIFT SHAFT |
1 | discontinued |
| 36 | 93928 |
РЫЧАГ ROD END LEVER ROD END |
1 | discontinued |
| 37 | 4001588 |
ВИНТ (M4 x 20) ROD END LEVER SCREW (M4 x 20) ROD END LEVER |
1 | discontinued |
| 38 | 94186 |
КРОНШТЕЙН THROTTLE CABLE BRACKET THROTTLE CABLE |
1 | discontinued |
| 39 | 4000171 |
ВИНТ (M6 x 16) BRACKET TO CYLINDER BLOCK SCREW (M6 x 16) BRACKET TO CYLINDER BLOCK |
3 | |
| 4 | 69150 |
ВОЛНИСТАЯ ШАЙБА THROTTLE CAM SCREW WAVE WASHER THROTTLE CAM SCREW |
1 | |
| 5 | 86968 |
ВТУЛКА THROTTLE CAM SCREW BUSHING THROTTLE CAM SCREW |
1 | superseded |
| 6 | 92425 |
АМОРТИЗАТОР DASHPOT |
1 | discontinued |
| 7 | 93001 |
КРОНШТЕЙН DASHPOT BRACKET DASHPOT |
1 | discontinued |
| 8 | 22053 |
ГАЙКА (0.312-24) DASHPOT TERMINAL NUT (.312-24) DASHPOT TERMINAL |
2 | |
| 9 | 98463A1 |
ШТОК В СБОРЕ Дроссельная заслонка ROD ASSEMBLY Throttle |
1 | superseded |
