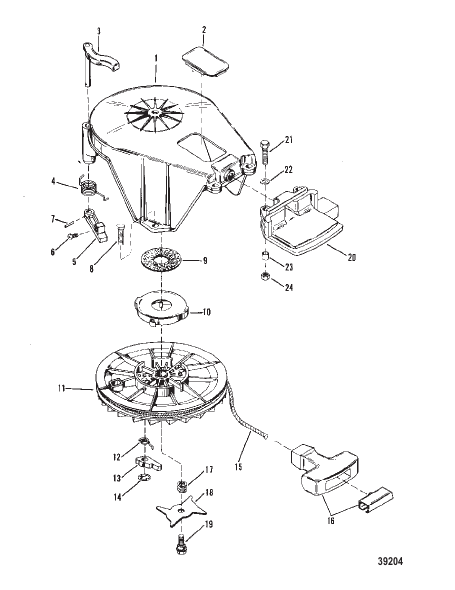

STARTER ASSEMBLY MANUAL
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 90906 |
КОРПУС STARTER HOUSING STARTER |
1 | superseded |
| 10 | 86857 |
ПРУЖИНА STARTER SPRING STARTER |
1 | superseded |
| 11 | 98443 |
РОЛИК STARTER SHEAVE STARTER |
1 | superseded |
| 12 | 86851 |
ПРУЖИНА CAM SPRING CAM |
2 | superseded |
| 13 | 86850 |
КУЛАЧОК CAM |
2 | superseded |
| 14 | 86849 |
КОЛЬЦО Стопор CAM RING Retaining CAM |
2 | superseded |
| 15 | 86855 |
ТРОС STARTER ROPE STARTER |
1 | superseded |
| 16 | 85174A1 |
РУКОЯТКА В СБОРЕ STARTER ROPE HANDLE ASSEMBLY STARTER ROPE |
1 | |
| 17 | 86852 |
ПРУЖИНА CAM SPRING CAM |
1 | superseded |
| 18 | 86853 |
КУЛАЧОК CAM |
1 | superseded |
| 19 | 97516 |
ВИНТ CAM TO STARTER SHEAVE SCREW CAM TO STARTER SHEAVE |
1 | superseded |
| 2 | 86971 |
КРЫШКА STARTER HOUSING COVER STARTER HOUSING |
1 | discontinued |
| 20 | 90902 |
ОПОРА STARTER HANDLE SUPPORT STARTER HANDLE |
1 | superseded |
| 21 | 40057111 |
ВИНТ SUPPORT TO STARTER HOUSING (35MM) SCREW SUPPORT TO STARTER HOUSING (35MM) |
2 | superseded |
| 22 | 4002213 |
ШАЙБА SUPPORT SCREW WASHER SUPPORT SCREW |
4 | superseded |
| 23 | 30977 |
ПРОСТАВКА SUPPORT SCREW SPACER SUPPORT SCREW |
4 | superseded |
| 24 | 400633 |
ГАЙКА (M5) SUPPORT SCREW NUT (M5) SUPPORT SCREW |
2 | superseded |
| 3 | 94019 |
РЫЧАГ LOCK (UPPER) LEVER LOCK (UPPER) |
1 | superseded |
| 4 | 89542 |
ПРУЖИНА UPPER LOCK LEVER SPRING UPPER LOCK LEVER |
1 | superseded |
| 5 | 93876 |
РЫЧАГ LOCK (LOWER) LEVER LOCK (LOWER) |
1 | superseded |
| 6 | 61802 |
ВИНТ LOWER LOCK LEVER SCREW LOWER LOCK LEVER |
1 | discontinued |
| 7 | 38489 |
ШТИФТ Ролик LOCK LEVER PIN Roll LOCK LEVER |
1 | |
| 8 | 4000174 |
ВИНТ (M6 x 20) STARTER HOUSING ATTACHING SCREW (M6 x 20) STARTER HOUSING ATTACHING |
2 | superseded |
| 8 | 4000183 |
ВИНТ (M6 x 35) STARTER HOUSING ATTACHING SCREW (M6 x 35) STARTER HOUSING ATTACHING |
1 | discontinued |
| 9 | 90478 |
НАКЛАДКА FELT PAD FELT |
1 | superseded |
