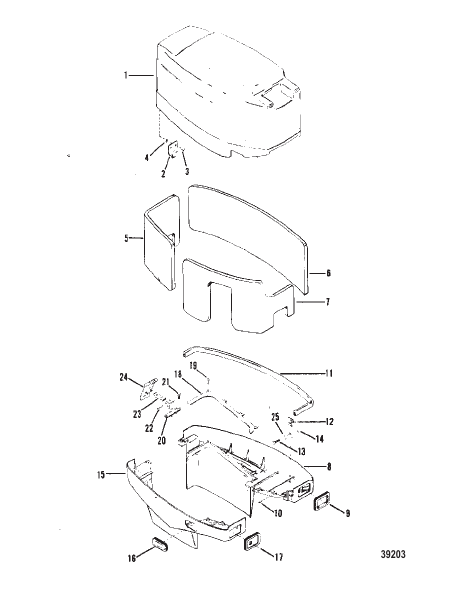

COWLS
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8531A6 |
ВЕРХНИЙ КОЖУХ В СБОРЕ TOP COWL ASSEMBLY |
1 | superseded |
| 10 | 89010 |
ШТИФТ Ролик BOTTOM COWL PIN Roll BOTTOM COWL |
AR | discontinued |
| 11 | 42274 |
УПЛОТНЕНИЕ BOTTOM COWL SEAL BOTTOM COWL |
2 | discontinued |
| 12 | 89009 |
ЗАЩЕЛКА BOTTOM COWL LATCH BOTTOM COWL |
1 | discontinued |
| 13 | 4000330 |
ВИНТ (M6 x 25) LATCH TO BOTTOM COWL SCREW (M6 x 25) LATCH TO BOTTOM COWL |
1 | superseded |
| 14 | 400264 |
ГАЙКА (M6) LATCH SCREW NUT (M6) LATCH SCREW |
1 | superseded |
| 15 | 8306A1 |
НИЖНИЙ КОЖУХ В СБОРЕ STARBOARD BOTTOM COWL ASSEMBLY STARBOARD |
1 | discontinued |
| 16 | 87819 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО BOTTOM COWL (3/4" X 2-1/4" OPENING) GROMMET BOTTOM COWL (3/4" X 2-1/4" OPENING) |
OPT | discontinued |
| 16 | 96160 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО BOTTOM COWL (1-1/8" X 3-1/8' OPENING) GROMMET BOTTOM COWL (1-1/8" X 3-1/8' OPENING) |
OPT | discontinued |
| 16 | 93527 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО BOTTOM COWL (1-1/8" X 2-1/8" OPENING) GROMMET BOTTOM COWL (1-1/8" X 2-1/8" OPENING) |
OPT | superseded |
| 17 | 89696 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО CHOKE KNOB GROMMET CHOKE KNOB |
1 | discontinued |
| 18 | 85982 |
ПЛАСТИНА BOTTOM COWL PLATE BOTTOM COWL |
2 | superseded |
| 19 | 75710 |
ВИНТ PLATE TO BOTTOM COWL (1/2") SCREW PLATE TO BOTTOM COWL (1/2") |
8 | superseded |
| 2 | 89584 |
ПЕТЛЯ COWL LATCH HINGE COWL LATCH |
1 | discontinued |
| 20 | 87308 |
КРОНШТЕЙН COWL LATCH BRACKET COWL LATCH |
1 | superseded |
| 21 | 400018 |
ВИНТ (M5 x 12) BRACKET TO BOTTOM COWL SCREW (M5 x 12) BRACKET TO BOTTOM COWL |
2 | |
| 22 | 25870 |
ШТИФТ Ролик LINK PIN Roll LINK |
2 | discontinued |
| 23 | 89583 |
СОЕДИНИТЕЛЬ COWL LATCH LINK COWL LATCH |
1 | superseded |
| 24 | 89582 |
ЗАЩЕЛКА COWL - REAR LATCH COWL - REAR |
1 | superseded |
| 25 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь LATCH SCREW WASHER (.281 x .500 x .060) Stainless Steel LATCH SCREW |
1 | superseded |
| 3 | 22028 |
ВИНТ (№10-32 x 0.50) HINGE TO TOP COWL SCREW (#10-32 x .50) HINGE TO TOP COWL |
2 | discontinued |
| 4 | 27164 |
ГАЙКА И СТОПОРНАЯ ШАЙБА (№10-32) HINGE PIN NUT AND LOCKWASHER (#10-32) HINGE PIN |
2 | |
| 5 | 91059 |
ПОКРЫТИЕ TOP COWL NOT USED ON LATER ENGINES BLANKET TOP COWL NOT USED ON LATER ENGINES |
1 | discontinued |
| 6 | 91061 |
ПОКРЫТИЕ TOP COWL NOT USED ON LATER ENGINES BLANKET TOP COWL NOT USED ON LATER ENGINES |
1 | discontinued |
| 7 | 91060 |
ПОКРЫТИЕ TOP COWL NOT USED ON LATER ENGINES BLANKET TOP COWL NOT USED ON LATER ENGINES |
1 | discontinued |
| 8 | 8301A3 |
НИЖНИЙ КОЖУХ В СБОРЕ PORT BOTTOM COWL ASSEMBLY PORT |
1 | discontinued |
| 9 | 89695 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО FUEL ADAPTOR (1-7/8" LONG) GROMMET FUEL ADAPTOR (1-7/8" LONG) |
OPT | discontinued |
| 9 | 93770 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО FUEL ADAPTOR (2-1/16" LONG) GROMMET FUEL ADAPTOR (2-1/16" LONG) |
OPT | discontinued |
