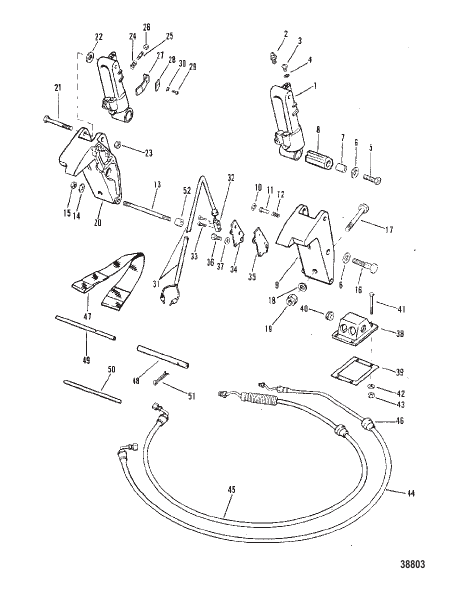

TRIM CYLINDERS AND HYDRAULIC HOSES
Parts (55)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 92194A14 |
ЦИЛИНДР СИСТЕМЫ ДИФФЕРЕНТА TRIM CYLINDER |
2 | discontinued |
| 10 | 70608 |
УПЛОТНЕНИЕ Масло PORT BRACKET SEAL Oil PORT BRACKET |
1 | discontinued |
| 11 | 89290 |
ПЛУНЖЕР LIMIT SWITCH ACTUATING PLUNGER LIMIT SWITCH ACTUATING |
1 | discontinued |
| 12 | 95881 |
ПРУЖИНА TENSION - LIMIT SWITCH PLUNGER SPRING TENSION - LIMIT SWITCH PLUNGER |
1 | discontinued |
| 13 | 62888 |
ШПИЛЬКА (0.312 x 18.880) MOUNTING BRACKET STUD (.312 x 18.880) MOUNTING BRACKET |
1 | discontinued |
| 14 | 26993 |
СТОПОРНАЯ ШАЙБА (0.312) MOUNTING BRACKET STUD LOCKWASHER (.312) MOUNTING BRACKET STUD |
2 | superseded |
| 15 | 28770 |
ГАЙКА (0.312-24), нержавеющая сталь MOUNTING BRACKET STUD NUT (.312-24) Stainless Steel MOUNTING BRACKET STUD |
2 | |
| 16 | 45263 |
ВИНТ (0.500-20 x 2.250) MOUNTING BRACKET SCREW (.500-20 x .2.250) MOUNTING BRACKET |
2 | discontinued |
| 17 | 68298 |
БОЛТ (0.375-16 x 3.250) BOLT (.375-16 x 3.250) |
6 | discontinued |
| 17 | 89673 |
ВИНТ (0.375-16 x 5.00) SCREW (.375-16 x 5.00) |
2 | discontinued |
| 18 | 68410 |
ШАЙБА MOUNTING BRACKET BOLT WASHER MOUNTING BRACKET BOLT |
6 | discontinued |
| 19 | 99405 |
ГАЙКА MOUNTING BRACKET BOLT NUT MOUNTING BRACKET BOLT |
8 | superseded |
| 2 | 74036 |
ФИТИНГ Смазка TRIM CYLINDER FITTING Grease TRIM CYLINDER |
2 | superseded |
| 20 | 89111 |
КРОНШТЕЙН TRIM CYLINDER (STARBOARD) BRACKET TRIM CYLINDER (STARBOARD) |
1 | superseded |
| 21 | 45328 |
ВИНТ (0.437-20 x 3.560) SCREW (.437-20 x 3.560) |
2 | discontinued |
| 22 | 37807 |
ШАЙБА WASHER |
1 | discontinued |
| 23 | 35053 |
ГАЙКА (0.437-20) TRIM CYLINDER SCREW NUT (.437-20) TRIM CYLINDER SCREW |
2 | superseded |
| 24 | 24390 |
ПРУЖИНА TENSION - ADJUSTING STUD SPRING TENSION - ADJUSTING STUD |
1 | discontinued |
| 25 | 21085 |
ШПИЛЬКА (№10-32 x 0.930) ADJUSTING - CUT-OUT LIMIT SWITCH STUD (#10-32 x .930) ADJUSTING - CUT-OUT LIMIT SWITCH |
1 | superseded |
| 26 | 45812 |
ГАЙКА (№10-32), нержавеющая сталь JAM - LIMIT SWITCH ADJUSTING STUD NUT (#10-32) Stainless Steel JAM - LIMIT SWITCH ADJUSTING STUD |
1 | superseded |
| 27 | 99897 |
КУЛАЧОК LIMIT SWITCH ADJUSTING STUD CAM LIMIT SWITCH ADJUSTING STUD |
1 | discontinued |
| 28 | 86967 |
ПЛАСТИНА RETAINING - LIMIT SWITCH CAM PLATE RETAINING - LIMIT SWITCH CAM |
1 | discontinued |
| 29 | 68513 |
ВИНТ (№10-32 x 0.375), нержавеющая сталь RETAINING PLATE AND CAM SCREW (#10-32 x .375) Stainless Steel RETAINING PLATE AND CAM |
1 | |
| 3 | 45265 |
ВИНТ (№10-32 x 0.3125) BLEED SCREW (#10-32 x .3125) BLEED |
4 | discontinued |
| 30 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь RETAINING PLATE AND CAM SCREW LOCKWASHER (#10) Stainless Steel RETAINING PLATE AND CAM SCREW |
1 | |
| 31 | 45326A2 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ CUT-OUT LIMIT SWITCH ASSEMBLY CUT-OUT LIMIT |
1 | discontinued |
| 32 | 45354 |
ВТУЛКА RUBBER - CUT-OUT LIMIT SWITCH BUSHING RUBBER - CUT-OUT LIMIT SWITCH |
1 | discontinued |
| 33 | 47255 |
ВИНТ (№4-40 x 0.625) CUT-OUT LIMIT SWITCH SCREW (#4-40 x .625) CUT-OUT LIMIT SWITCH |
2 | discontinued |
| 34 | 89272 |
КРЫШКА LIMIT SWITCH COVER LIMIT SWITCH |
1 | discontinued |
| 35 | 89273 |
ПРОКЛАДКА LIMIT SWITCH COVER GASKET LIMIT SWITCH COVER |
1 | superseded |
| 36 | 34994 |
ВИНТ (№10-32 x 1.00), нержавеющая сталь LIMIT SWITCH COVER SCREW (#10-32 x 1.00) Stainless Steel LIMIT SWITCH COVER |
4 | discontinued |
| 37 | 38833 |
ШАЙБА LIMIT SWITCH COVER SCREW WASHER LIMIT SWITCH COVER SCREW |
4 | |
| 38 | 87774A1 |
КРЫШКА INLET - TRANSOM COVER INLET - TRANSOM |
1 | discontinued |
| 39 | 87775 |
ПРОКЛАДКА INLET COVER GASKET INLET COVER |
1 | |
| 4 | 45016 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО BLEED SCREW O-RING BLEED SCREW |
4 | discontinued |
| 40 | 45507 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО RUBBER - INLET COVER GROMMET RUBBER - INLET COVER |
1 | |
| 41 | 36070 |
ВИНТ (№10-32 x 1.250) INLET COVER TO BOAT SCREW (#10-32 x 1.250) INLET COVER TO BOAT |
4 | discontinued |
| 42 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь INLET COVER SCREW LOCKWASHER (#10) Stainless Steel INLET COVER SCREW |
4 | |
| 43 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь INLET COVER SCREW NUT (#10-32) Stainless Steel INLET COVER SCREW |
4 | |
| 44 | 88005 |
РУКАВ TRIM HOSE TRIM |
2 | |
| 45 | 88006 |
РУКАВ LIFT HOSE LIFT |
2 | |
| 46 | 35977 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО RUBBER (3/8" I.D. - 1" LONG) GROMMET RUBBER (3/8" I.D. - 1" LONG) |
4 | |
| 46 | 97191 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО RUBBER (3/8" I.D. - 7/8" LONG) GROMMET RUBBER (3/8" I.D. - 7/8" LONG) |
2 | superseded |
| 46 | 97000 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО RUBBER (7/16" I.D. - 7/8" LONG) GROMMET RUBBER (7/16" I.D. - 7/8" LONG) |
2 | superseded |
| 47 | 73519A1 |
СКОБА Ограничитель наклона STRAP Tilt Stop |
1 | discontinued |
| 48 | 69259 |
ТРУБА MOUNTING - TILT STOP TUBE MOUNTING - TILT STOP |
1 | discontinued |
| 49 | 69258 |
ШТИФТ MOUNTING TUBE PIN MOUNTING TUBE |
1 | discontinued |
| 5 | 92050 |
ВИНТ (0.500-20 x 1.500) TRIM CYLINDER SCREW (.500-20 x 1.500) TRIM CYLINDER |
2 | discontinued |
| 50 | 63473 |
ТРУБА CUSHION TUBE CUSHION |
1 | discontinued |
| 51 | 36391 |
ШПЛИНТ MOUNTING TUBE PIN COTTER PIN MOUNTING TUBE PIN |
1 | superseded |
| 52 | 59623 |
ПРОСТАВКА MOUNTING BRACKET SCREW SPACER MOUNTING BRACKET SCREW |
2 | discontinued |
| 6 | 28421 |
ШАЙБА (1.5 × 3.05 × 0.13), нержавеющая сталь TRIM CYLINDER BOLT WASHER (1.5 x 3.05 x 0.13) Stainless Steel TRIM CYLINDER BOLT |
2 | superseded |
| 7 | 45280 |
ПРОСТАВКА TRIM CYLINDER - LOWER SPACER TRIM CYLINDER - LOWER |
2 | discontinued |
| 8 | 94907A1 |
ВТУЛКА RUBBER - TRIM CYLINDER BUSHING RUBBER - TRIM CYLINDER |
2 | discontinued |
| 9 | 89108A3 |
КРОНШТЕЙН TRIM CYLINDER (PORT) BRACKET TRIM CYLINDER (PORT) |
1 | discontinued |
