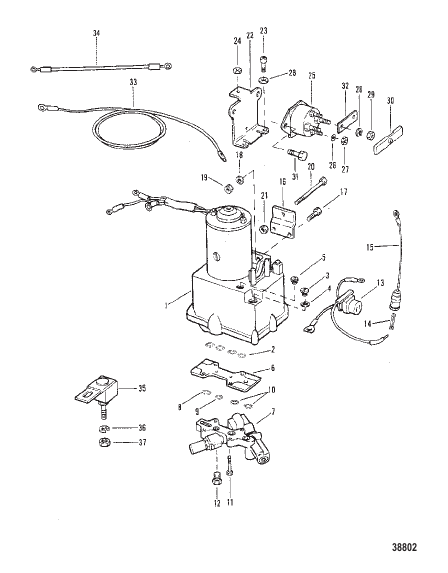

POWER TRIM COMPONENTS
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 48171 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.364. x 0.070) MANIFOLD PLATE (SEE REF. #2) O-RING (.364. x .070) MANIFOLD PLATE (SEE REF. #2) |
4 | |
| 1 | 92975A6 |
НАСОС В СБОРЕ Гидравлический (PLASTIC RESERVOIR) PUMP ASSEMBLY Hydraulic (PLASTIC RESERVOIR) |
1 | superseded |
| 10 | 45253 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО CONTROL VALVE (5/8" O.D.) O-RING CONTROL VALVE (5/8" O.D.) |
2 | |
| 11 | 56500 |
ВИНТ (0.250-28 x 1.250) SCREW (.250-28 x 1.250) |
4 | |
| 12 | 46008 |
ПРОБКА CONTROL VALVE (1/2-20) PLUG CONTROL VALVE (1/2-20) |
2 | |
| 13 | 79147A3 |
ЖГУТ ПРОВОДОВ В СБОРЕ HARNESS ASSEMBLY |
1 | |
| 14 | 79091 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ 20 ампер FUSE 20 Ampere |
1 | superseded |
| 15 | 95084A3 |
КАБЕЛЬ В СБОРЕ FUSE CABLE ASSEMBLY FUSE |
1 | discontinued |
| 16 | 45377 |
КРОНШТЕЙН MOUNTING BRACKET MOUNTING |
2 | superseded |
| 17 | 35386 |
ВИНТ (0.312-18 x 1.00) SCREW (.312-18 x 1.00) |
4 | |
| 18 | 39107 |
СТОПОРНАЯ ШАЙБА (0.312-24) MOUNTING BRACVKET SCREW LOCKWASHER (.312-24) MOUNTING BRACVKET SCREW |
4 | |
| 19 | 21908 |
ГАЙКА (0.312-18), с кадмиевым покрытием MOUNTING BRACKET SCREW NUT (.312-18) Cad Plated MOUNTING BRACKET SCREW |
4 | |
| 2 | 48171 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.364. x 0.070) MANIFOLD PLATE O-RING (.364. x .070) MANIFOLD PLATE |
4 | |
| 20 | 31830 |
БОЛТ (0.375-24 x 1.75) HYDRAULIC PUMP TO BOAT BOLT (.375-24 x 1.75) HYDRAULIC PUMP TO BOAT |
2 | discontinued |
| 21 | 99405 |
ГАЙКА HYDRAULIC PUMP BOLT NUT HYDRAULIC PUMP BOLT |
2 | superseded |
| 22 | 94279 |
КРОНШТЕЙН MOUNTING - STARTER SOLENOID BRACKET MOUNTING - STARTER SOLENOID |
1 | discontinued |
| 23 | 48063 |
ВИНТ SCREW |
2 | superseded |
| 24 | 29488 |
ГАЙКА (№10-32) NUT (#10-32) |
1 | superseded |
| 25 | 96158 |
ЭЛЕКТРОМАГНИТ Стартер SOLENOID Starter |
2 | superseded |
| 26 | 26995 |
СТОПОРНАЯ ШАЙБА (№8), нержавеющая сталь SOLENOID TERMINAL LOCKWASHER (#8) Stainless Steel SOLENOID TERMINAL |
4 | |
| 27 | 26419 |
ГАЙКА (№8-32), латунь SOLENOID TERMINAL NUT (#8-32) Brass SOLENOID TERMINAL |
4 | |
| 28 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь SOLENOID TERMINAL LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL |
4 | |
| 29 | 94330 |
ГАЙКА (0.250-20), латунь SOLENOID TERMINAL NUT (.250-20) Brass SOLENOID TERMINAL |
4 | |
| 3 | 79953 |
ВИНТ (0.375-16 x 0.250) FILLER - HYDRAULIC PUMP SCREW (.375-16 x .250) FILLER - HYDRAULIC PUMP |
1 | superseded |
| 30 | 96535 |
ЧЕХОЛ RUBBER - STARTER SOLENOID TERMINAL BOOT RUBBER - STARTER SOLENOID TERMINAL |
4 | superseded |
| 31 | 41508 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
4 | |
| 32 | 94275 |
СОЕДИНИТЕЛЬ SOLENOID TO SOLENOID LINK SOLENOID TO SOLENOID |
1 | |
| 33 | 79139A13 |
КАБЕЛЬ В СБОРЕ Аккумулятор (POSITIVE) CABLE ASSEMBLY Battery (POSITIVE) |
1 | discontinued |
| 33 | 79138A1 |
КАБЕЛЬ В СБОРЕ (NEGATIVE) CABLE ASSEMBLY (NEGATIVE) |
1 | discontinued |
| 34 | 61600A9 |
ПРОВОД STARTER SOLENOID (BLACK) WIRE STARTER SOLENOID (BLACK) |
2 | discontinued |
| 35 | 79023A90 |
ПРЕДОХРАНИТЕЛЬ В СБОРЕ 90 ампер FUSE ASSEMBLY 90 Ampere |
1 | superseded |
| 36 | 96457 |
ШАЙБА Фенольный (0.27 x 0.81 x 0.062) FUSE TERMINAL WASHER Phenolic (.27 x .81 x .062) FUSE TERMINAL |
1 | |
| 37 | 21825 |
ГАЙКА (0.250-28) FUSE TERMINAL NUT (.250-28) FUSE TERMINAL |
1 | |
| 4 | 20260 |
ШАЙБА SEALING - FILLER SCREW WASHER SEALING - FILLER SCREW |
1 | superseded |
| 5 | 62269 |
ВИНТ (№10-32 x 0.437) VENT - HYDRAULIC PUMP SCREW (#10-32 x .437) VENT - HYDRAULIC PUMP |
1 | discontinued |
| 6 | 45336 |
ПЛАСТИНА MANIFOLD PLATE MANIFOLD |
1 | discontinued |
| 7 | 45197A2 |
КЛАПАН В СБОРЕ Устройство управления VALVE ASSEMBLY Control |
1 | discontinued |
| 8 | 45254 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО CONTROL VALVE (3/4" O.D.) O-RING CONTROL VALVE (3/4" O.D.) |
1 | |
| 9 | 48171 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.364. x 0.070) CONTROL VALVE O-RING (.364. x .070) CONTROL VALVE |
1 |
