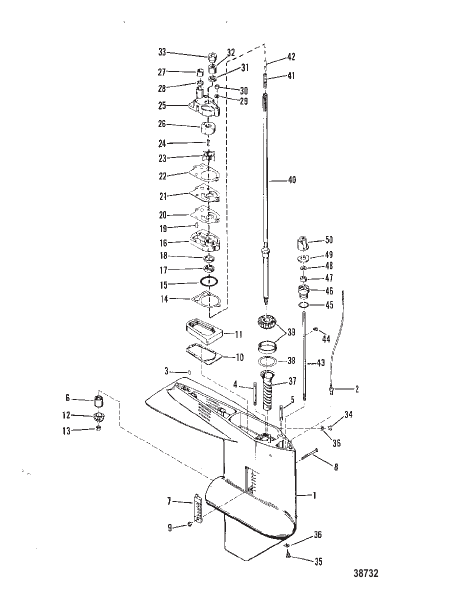

GEAR HOUSING (DRIVESHAFT)
Parts (60)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 7406A34 |
КАРТЕР РЕДУКТОРА В СБОРЕ (SHORT SHAFT) GEAR HOUSING ASSEMBLY (SHORT SHAFT) |
1 | superseded |
| - | 7406A35 |
КАРТЕР РЕДУКТОРА В СБОРЕ (LONG SHAFT) GEAR HOUSING ASSEMBLY (LONG SHAFT) |
1 | superseded |
| - | 7406A43 |
КАРТЕР РЕДУКТОРА В СБОРЕ (X-LONG SHAFT) GEAR HOUSING ASSEMBLY (X-LONG SHAFT) |
1 | superseded |
| - | 77177A3 |
КОМПЛЕКТ ВОДЯНОГО НАСОСА WATER PUMP KIT |
||
| - | 79831A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
||
| - | 78028A78 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
||
| 1 | 7406A16 |
КАРТЕР РЕДУКТОРА В СБОРЕ Mercury GEAR HOUSING ASSEMBLY Mercury |
1 | superseded |
| 10 | 92815 |
ПЛАСТИНА SUPPORT-EXHAUST TUBE PLATE SUPPORT-EXHAUST TUBE |
1 | |
| 11 | 37721 |
УПЛОТНЕНИЕ EXHAUST TUBE SEAL EXHAUST TUBE |
1 | superseded |
| 12 | 98097 |
ПЕРЕДАЧА Шестерня GEAR Pinion |
1 | superseded |
| 13 | 55910 |
ГАЙКА (0.437-20) PINION GEAR TO DRIVESHAFT NUT (.437-20) PINION GEAR TO DRIVESHAFT |
1 | |
| 14 | 77417 |
ПРОКЛАДКА WATER PUMP BASE TO GEAR HOUSING GASKET WATER PUMP BASE TO GEAR HOUSING |
1 | superseded |
| 15 | 26722 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО WATER PUMP BASE O-RING WATER PUMP BASE |
1 | |
| 16 | 77177A1 |
БАЗА В СБОРЕ Водяной насос BASE ASSEMBLY Water Pump |
1 | |
| 17 | 90562 |
УПЛОТНЕНИЕ (1.254 x 0.312) WATER PUMP BASE SEAL (1.254 x .312) WATER PUMP BASE |
1 | |
| 18 | 79831 |
УПЛОТНЕНИЕ Масло WATER PUMP BASE SEAL Oil WATER PUMP BASE |
1 | |
| 19 | 35973 |
ШТИФТ Штифт WATER PUMB BASE PIN Dowel WATER PUMB BASE |
2 | |
| 2 | 85822A1 |
СОЕДИНИТЕЛЬ В СБОРЕ SPEEDOMETER CONNECTOR ASSEMBLY SPEEDOMETER |
1 | superseded |
| 20 | 32769 |
ПРОКЛАДКА LOWER-WATER PUMP BASE TO FACE PLATE GASKET LOWER-WATER PUMP BASE TO FACE PLATE |
1 | superseded |
| 21 | 54705 |
ЦИФЕРБЛАТ FACE PLATE |
1 | superseded |
| 22 | 32770 |
ПРОКЛАДКА UPPER-FACE PLATE TO WATER PUMP BODY GASKET UPPER-FACE PLATE TO WATER PUMP BODY |
1 | superseded |
| 23 | 89983 |
КРЫЛЬЧАТКА WATER PUMP IMPELLER WATER PUMP |
1 | superseded |
| 24 | 56662 |
КЛЮЧ IMPELLER DRIVE KEY IMPELLER DRIVE |
1 | superseded |
| 25 | 77822A1 |
КОРПУС В СБОРЕ Водяной насос BODY ASSEMBLY Water Pump |
1 | |
| 26 | 48753 |
ВСТАВКА WATER PUMP BODY INSERT WATER PUMP BODY |
1 | |
| 27 | 38452 |
УПЛОТНЕНИЕ RUBBER-WATER INLET TUBE SEAL RUBBER-WATER INLET TUBE |
1 | |
| 28 | 38453 |
ШАЙБА NYLON-WATER PUMP BODY WASHER NYLON-WATER PUMP BODY |
1 | |
| 29 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь BODY AND BASE STUDS WASHER (.281 x .500 x .060) Stainless Steel BODY AND BASE STUDS |
3 | superseded |
| 3 | 85500 |
ШТИФТ Штифт (0.187 x 0.530) PIN Dowel (.187 x .530) |
2 | superseded |
| 30 | 35888 |
ГАЙКА (0.250-28), нержавеющая сталь BODY AND BASE SUTDS NUT (.250-28) Stainless Steel BODY AND BASE SUTDS |
3 | |
| 31 | 20273 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО RUBBER O-RING RUBBER |
1 | |
| 32 | 88868A1 |
СИДЕНЬЕ В СБОРЕ SEAT ASSEMBLY |
1 | |
| 33 | 86304 |
УПЛОТНЕНИЕ SPLINED SEAL SPLINED |
1 | |
| 34 | 79953 |
ВИНТ (0.375-16 x 0.250) GREASE FILLER SCREW (.375-16 x .250) GREASE FILLER |
1 | superseded |
| 35 | 67892 |
ВИНТ Магнитный DRAIN SCREW Magnetic DRAIN |
1 | superseded |
| 36 | 20260 |
ШАЙБА FILLER/DRAIN SCREW WASHER FILLER/DRAIN SCREW |
2 | superseded |
| 37 | 88181 |
РУКАВ LUBRICATION-DRIVESHAFT SLEEVE LUBRICATION-DRIVESHAFT |
1 | discontinued |
| 38 | 92881A1 |
НАБОР ПРОКЛАДОК BEARING TO GEAR HOUSING (.002-3-5-10-20) SHIM SET BEARING TO GEAR HOUSING (.002-3-5-10-20) |
AR | |
| 39 | 77420A1 |
БЛОК ПОДШИПНИКА Ролик TAPERED-DRIVESHAFT BEARING ASSEMBLY Roller TAPERED-DRIVESHAFT |
1 | superseded |
| 4 | 33778 |
ШПИЛЬКА WATER PUMP/BASE (2-5/8") STUD WATER PUMP/BASE (2-5/8") |
3 | |
| 40 | 88025A2 |
ВЕДУЩИЙ ВАЛ В СБОРЕ (SHORT SHAFT) DRIVESHAFT ASSEMLBY (SHORT SHAFT) |
1 | superseded |
| 40 | 88024A2 |
КАРДАННЫЙ ВАЛ В СБОРЕ (LONG SHAFT) DRIVESHAFT ASSEMBLY (LONG SHAFT) |
1 | superseded |
| 40 | 97442A2 |
КАРДАННЫЙ ВАЛ В СБОРЕ (X-LONG SHAFT) DRIVESHAFT ASSEMBLY (X-LONG SHAFT) |
1 | discontinued |
| 41 | 20254 |
ПРУЖИНА COMPRESSION-DRIVESHAFT SPRING COMPRESSION-DRIVESHAFT |
1 | discontinued |
| 42 | 30545 |
ШТИФТ DRIVESHAFT PIN DRIVESHAFT |
1 | discontinued |
| 43 | 76063A1 |
ВАЛ В СБОРЕ SHIFT SHAFT ASSEMBLY SHIFT |
1 | discontinued |
| 43 | 97443A1 |
ВАЛ В СБОРЕ SHIFT (X-LONG SHAFT) SHAFT ASSEMBLY SHIFT (X-LONG SHAFT) |
1 | discontinued |
| 44 | 29641 |
Е-ОБРАЗНОЕ КОЛЬЦО E RING |
1 | |
| 45 | 25439 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.862 x 0.103) SHIFT SHAFT BUSHING O-RING (.862 x .103) SHIFT SHAFT BUSHING |
1 | |
| 46 | 77631A2 |
ВТУЛКА В СБОРЕ SHIFT SHAFT BUSHING ASSEMBLY SHIFT SHAFT |
1 | |
| 47 | 76384 |
УПЛОТНЕНИЕ Масло SHIFT SHAFT BUSHING SEAL Oil SHIFT SHAFT BUSHING |
1 | superseded |
| 48 | 77674 |
ШАЙБА RUBBER-SHIFT SHAFT BUSHING WASHER (.35 x .75 x .12) RUBBER-SHIFT SHAFT BUSHING |
1 | |
| 49 | 78036 |
БАЗА BASE |
1 | discontinued |
| 5 | 57933 |
ШПИЛЬКА (0.437-14/0.437-20 x 2.190) GEAR HOUSING STUD (.437-14/.437-20 x 2.190) GEAR HOUSING |
2 | superseded |
| 5 | 96126 |
ШПИЛЬКА (0.4375 x 7.22) GEAR HOUSING (X-LONG SHAFT) STUD (.4375 x 7.22) GEAR HOUSING (X-LONG SHAFT) |
2 | discontinued |
| 50 | 43308 |
КУЛАЧОК REVERSE LOCKING CAM REVERSE LOCKING |
1 | superseded |
| 6 | 62091 |
ПОДШИПНИК Ролик BEARING Roller |
1 | superseded |
| 7 | 72849A1 |
ЭКРАН В СБОРЕ WATER INTAKE SCREEN ASSEMBLY WATER INTAKE |
1 | discontinued |
| 8 | 36070 |
ВИНТ (№10-32 x 1.250) WATER INTAKE SCREEN TO GEAR HOUSING SCREW (#10-32 x 1.250) WATER INTAKE SCREEN TO GEAR HOUSING |
1 | discontinued |
| 9 | 45812 |
ГАЙКА (№10-32), нержавеющая сталь WATER INTAKE SCREEN SCREW NUT (#10-32) Stainless Steel WATER INTAKE SCREEN SCREW |
1 | superseded |
