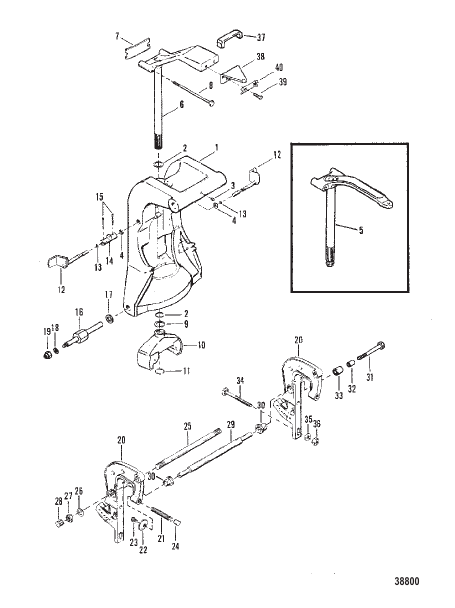

CLAMP AND SWIVEL BRACKET (POWER TRIM)
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 78028A78 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
||
| 1 | 8599A6 |
ПОВОРОТНЫЙ КРОНШТЕЙН SWIVEL BRACKET |
1 | discontinued |
| 10 | 77416 |
ВИЛКА Нижняя часть YOKE Bottom |
1 | superseded |
| 11 | 77415 |
СТОПОРНОЕ КОЛЬЦО BOTTOM YOKE RETAINING RING BOTTOM YOKE |
1 | |
| 12 | 89105 |
ШТИФТ ЗАПИРАНИЯ НАКЛОНА STARBOARD/PORT TILT LOCK STARBOARD/PORT |
2 | discontinued |
| 13 | 62702 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.070) O-RING (.301 x .070) |
2 | superseded |
| 14 | 79659 |
СОЕДИНИТЕЛЬНАЯ МУФТА TILT LOCK COUPLING TILT LOCK |
1 | discontinued |
| 15 | 47959 |
ШПЛИНТ TILT LOCK TUBE COTTER PIN TILT LOCK TUBE |
2 | |
| 16 | 62887 |
ШТИФТ TRIM CYLINDERS TO SWIVEL BRACKET PIN TRIM CYLINDERS TO SWIVEL BRACKET |
2 | discontinued |
| 17 | 63099 |
ШАЙБА (1.50 x 0.766 x 0.125) TRIM CYLINDER PIN WASHER (1.50 x .766 x .125) TRIM CYLINDER PIN |
2 | superseded |
| 18 | 54012 |
ШАЙБА (0.530 x 0.870 x 0.105), нержавеющая сталь TRIM CYLINDER PIN WASHER (.530 x .870 x .105) Stainless Steel TRIM CYLINDER PIN |
2 | superseded |
| 19 | 35778 |
ГАЙКА (.500-20) TRIM CYLINDER PIN NUT (.500-20) TRIM CYLINDER PIN |
2 | superseded |
| 2 | 32911 |
УПЛОТНЕНИЕ Масло SWIVEL BRACKET SEAL Oil SWIVEL BRACKET |
2 | |
| 20 | 8394A1 |
КРОНШТЕЙН ФИКСАТОРА В СБОРЕ CLAMP BRACKET ASSEMBLY |
2 | discontinued |
| 21 | 78492A1 |
ВИНТ С НАКАТАННОЙ ГОЛОВКОЙ В СБОРЕ THUMB SCREW ASSEMBLY |
2 | discontinued |
| 22 | 78493 |
ШАЙБА THUMB SCREW WASHER THUMB SCREW |
2 | discontinued |
| 23 | 784951 |
ВИНТ WASHER TO THUMB SCREW SCREW WASHER TO THUMB SCREW |
2 | superseded |
| 24 | 75043 |
ПРОБКА THUMB SCREW CAP THUMB SCREW |
2 | discontinued |
| 25 | 74528 |
ТРУБА НАКЛОНА TILT TUBE |
1 | superseded |
| 26 | 52864 |
ШАЙБА TILT TUBE WASHER TILT TUBE |
2 | discontinued |
| 27 | 56041 |
ГАЙКА (0.875-14) TILT TUBE NUT (.875-14) TILT TUBE |
2 | superseded |
| 28 | 53078 |
ПРОБКА PLASTIC - TILT TUBE CAP PLASTIC - TILT TUBE |
2 | discontinued |
| 29 | 28416 |
ШТИФТ UPPER PIN UPPER |
1 | discontinued |
| 3 | 74036 |
ФИТИНГ Смазка FITTING Grease |
4 | superseded |
| 30 | 73203 |
ВТУЛКА CLAMP BRACKET BUSHING CLAMP BRACKET |
2 | discontinued |
| 31 | 62882 |
ВИНТ (0.500-20 x 3.250) BRACKET TO UPPER PIN SCREW (.500-20 x 3.250) BRACKET TO UPPER PIN |
2 | discontinued |
| 32 | 62885 |
ПРОСТАВКА MOUNTING BRACKET SCREW (1/2"I.D) SPACER MOUNTING BRACKET SCREW (1/2"I.D) |
2 | discontinued |
| 32 | 89952 |
ПРОСТАВКА MOUNTING BRACKET SCREW (1/3"I.D) SPACER MOUNTING BRACKET SCREW (1/3"I.D) |
2 | discontinued |
| 33 | 62884 |
ПРОСТАВКА MOUNTING BRACKET SCREW (3/4"I.D) SPACER MOUNTING BRACKET SCREW (3/4"I.D) |
2 | discontinued |
| 34 | 68298 |
БОЛТ (0.375-16 x 3.250) BOLT (.375-16 x 3.250) |
2 | discontinued |
| 34 | 89673 |
ВИНТ (0.375-16 x 5.00) SCREW (.375-16 x 5.00) |
2 | discontinued |
| 35 | 68410 |
ШАЙБА CLAMP BRACKET BOLT WASHER CLAMP BRACKET BOLT |
2 | discontinued |
| 35 | 28420 |
ШАЙБА (1-1/ 4 x 25/64 x 0.125, нержавеющая сталь) CLAMP BRACKET BOLT WASHER (1-1/ 4 x 25/64 x .125 SS) CLAMP BRACKET BOLT |
2 | discontinued |
| 36 | 99405 |
ГАЙКА CLAMP BRACKET BOLT NUT CLAMP BRACKET BOLT |
4 | superseded |
| 37 | 62297 |
УПОР STEERING ARM W/O TILLER HANDLE BUMPER STEERING ARM W/O TILLER HANDLE |
1 | discontinued |
| 38 | 76535 |
КРОНШТЕЙН RIDE-GUIDE ATTACHING W/O TILLER HANDLE BRACKET RIDE-GUIDE ATTACHING W/O TILLER HANDLE |
1 | superseded |
| 39 | 34352 |
ВИНТ (0.375-24 x 0.875) W/O TILLER HANDLE SCREW (.375-24 x .875) W/O TILLER HANDLE |
2 | |
| 4 | 22734 |
УПЛОТНЕНИЕ Масло SWIVEL BRACKET SEAL Oil SWIVEL BRACKET |
2 | discontinued |
| 40 | 76533 |
СКОБА BRACKET SCREW W/O TILLER HANDLE STRAP BRACKET SCREW W/O TILLER HANDLE |
1 | discontinued |
| 5 | 69540A4 |
ШАРНИРНЫЙ ПАЛЕЦ В СБОРЕ (EARLY STYLE) SWIVEL PIN ASSEMBLY (EARLY STYLE) |
1 | discontinued |
| 6 | 88798A2 |
ШАРНИРНЫЙ ПАЛЕЦ В СБОРЕ (LATER STYLE) SWIVEL PIN ASSEMBLY (LATER STYLE) |
1 | superseded |
| 7 | 30711 |
УПОР STEERING ARM BUMPER STEERING ARM |
1 | discontinued |
| 8 | 66897 |
БОЛТ (0.437-20 x 5.250) BOLT (.437-20 x 5.250) |
2 | |
| 9 | 25176 |
ШАЙБА (.060) WASHER (.060) |
1 | discontinued |
