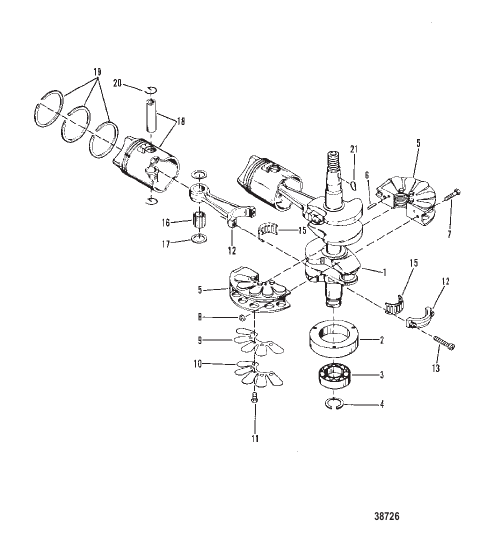

CRANKSHAFT, PISTONS AND CONNECTING RODS
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9073A1 |
КОЛЕНЧАТЫЙ ВАЛ В СБОРЕ CRANKSHAFT ASSEMBLY |
1 | discontinued |
| 10 | 56008 |
СТОП Пластинчатый клапан MAIN BEARING REED VALVES STOP Reed MAIN BEARING REED VALVES |
4 | discontinued |
| 11 | 20055 |
ВИНТ (№10-32 x 0.375) REED STOP MOUNTING SCREW (#10-32 x .375) REED STOP MOUNTING |
12 | discontinued |
| 12 | 8101A3 |
СОЕДИНИТЕЛЬНЫЙ СТЕРЖЕНЬ В СБОРЕ CONNECTING ROD ASSEMBLY |
2 | discontinued |
| 13 | 91012 |
ВИНТ (0.250-28, специальный) CONNECTING ROD SCREW (.250-28 Special) CONNECTING ROD |
4 | |
| 15 | 62596A1 |
БЛОК ПОДШИПНИКА CRANKPIN BEARING ASSEMBLY CRANKPIN |
2 | discontinued |
| 16 | 47270 |
ПОДШИПНИК PISTON PIN BEARING PISTON PIN |
58 | superseded |
| 17 | 47247 |
ШАЙБА NEEDLE BEARING RETAINING WASHER NEEDLE BEARING RETAINING |
4 | superseded |
| 18 | 8899A3 |
ПОРШЕНЬ В СБОРЕ (STANDARD) PISTON ASSEMBLY (STANDARD) |
2 | superseded |
| 18 | 8900A2 |
ПОРШЕНЬ В СБОРЕ (.015 OVERSIZE) PISTON ASSEMBLY (.015 OVERSIZE) |
AR | superseded |
| 18 | 8901A2 |
ПОРШЕНЬ В СБОРЕ (.030 OVERSIZE) PISTON ASSEMBLY (.030 OVERSIZE) |
AR | superseded |
| 19 | 78816A12 |
КОЛЬЦО (STANDARD) RING (STANDARD) |
1 | |
| 19 | 78811A12 |
НАБОР КОЛЕЦ Поршень – большой размер 0.015 RING SET Piston - .015 Oversize |
AR | discontinued |
| 19 | 88392A12 |
НАБОР КОЛЕЦ Поршень – большой размер 0.030 RING SET Piston - .030 Oversize |
AR | discontinued |
| 2 | 78308A1 |
ФИКСАТОР В СБОРЕ BALL BEARING RETAINER ASSEMBLY BALL BEARING |
1 | discontinued |
| 20 | 52035 |
КОЛЬЦО Замок PISTON PIN RING Lock PISTON PIN |
4 | superseded |
| 21 | 45554 |
КЛЮЧ CRANKSHAFT KEY CRANKSHAFT |
1 | discontinued |
| 3 | 63742 |
ПОДШИПНИК Шарик RETAINER (CRANKSHAFT) BEARING Ball RETAINER (CRANKSHAFT) |
1 | superseded |
| 4 | 63634 |
КОЛЬЦО Стопор BALL BEARING RING Retaining BALL BEARING |
1 | discontinued |
| 5 | 7238A2 |
БЛОК ПОДШИПНИКА Главный VALVE TYPE BEARING ASSEMBLY Main VALVE TYPE |
1 | discontinued |
| 6 | 20032 |
ШТИФТ Штифт MAIN, BEARING PIN Dowel MAIN, BEARING |
2 | discontinued |
| 7 | 45775 |
ВИНТ (№12-28 x 0.560) MAIN BEARING CLAMPING SCREW (#12-28 x .560) MAIN BEARING CLAMPING |
2 | discontinued |
| 8 | 45774 |
ГАЙКА MAIN BEARING CLAMPING SCREW NUT MAIN BEARING CLAMPING SCREW |
2 | discontinued |
| 9 | 56007A1 |
НАБОР ПЛАСТИНЧАТЫХ КЛАПАНОВ MAIN BEARING (MATCHED) REED SET MAIN BEARING (MATCHED) |
1 | discontinued |
