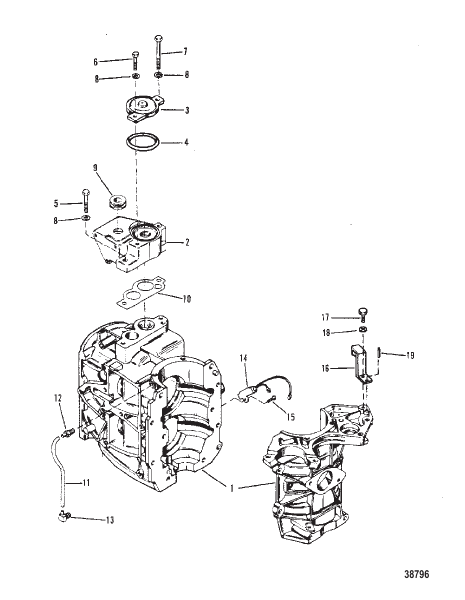

CYLINDER BLOCK AND THERMOSTAT
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 78028A78 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| 1 | 7940A2 |
БЛОК ЦИЛИНДРА В СБОРЕ CYLINDER BLOCK ASSEMBLY |
1 | superseded |
| 10 | 66847 |
ПРОКЛАДКА COIL MOUNTING BRACKET TO BLOCK GASKET COIL MOUNTING BRACKET TO BLOCK |
1 | |
| 11 | 9938779 |
РУКАВ CYLINDER BLEED (8") HOSE CYLINDER BLEED (8") |
1 | |
| 12 | 42866 |
ОБРАТНЫЙ КЛАПАН CYLINDER BLEED (TOP) CHECK VALVE CYLINDER BLEED (TOP) |
1 | discontinued |
| 13 | 42863 |
ОБРАТНЫЙ КЛАПАН CYLINDER BLEED (BOTTOM) CHECK VALVE CYLINDER BLEED (BOTTOM) |
1 | discontinued |
| 14 | 58124A24 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ (BOLT/NUT CONNECTORS) SWITCH ASSEMBLY (BOLT/NUT CONNECTORS) |
1 | superseded |
| 14 | 58124A27 |
ПЕРЕКЛЮЧАТЕЛЬ (BULLET CONNECTORS) SWITCH (BULLET CONNECTORS) |
1 | discontinued |
| 15 | 62568 |
ВИНТ (№10-16 x 0.375) MERCURY SWITCH TO EXHAUST COVER SCREW (#10-16 x .375) MERCURY SWITCH TO EXHAUST COVER |
1 | |
| 16 | 76184 |
ИНДИКАТОР TIMING ELECTRIC INDICATOR TIMING ELECTRIC |
1 | discontinued |
| 17 | 25299 |
ВИНТ (0.312-18 x 0.75) INDICATOR ATTACHING ELECTRIC SCREW (.312-18 x .75) INDICATOR ATTACHING ELECTRIC |
1 | discontinued |
| 18 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) INDICATOR ATTACHING SCREW ELECTRIC WASHER (.328 x .562 x .062) INDICATOR ATTACHING SCREW ELECTRIC |
1 | |
| 19 | 29908 |
ШТИФТ INDICATOR LOCATING ELECTRIC PIN INDICATOR LOCATING ELECTRIC |
1 | discontinued |
| 2 | 66843 |
КРОНШТЕЙН COIL MOUNTING BRACKET COIL MOUNTING |
1 | superseded |
| 3 | 99436A1 |
КРЫШКА В СБОРЕ COIL BRACKET COVER ASSEMBLY COIL BRACKET |
1 | discontinued |
| 4 | 64067 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО COVER O-RING COVER |
1 | superseded |
| 5 | 31984 |
ВИНТ (0.312-18 x 1.375) COIL MOUNTING BRACKET TO BLOCK SCREW (.312-18 x 1.375) COIL MOUNTING BRACKET TO BLOCK |
1 | |
| 6 | 69034 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.312-18 x 1.00) COVER SCREW AND LOCKWASHER (.312-18 x 1.00) COVER |
1 | superseded |
| 7 | 58414 |
ВИНТ COVER AND COIL BRACKET TO BLOCK (2-1/2") SCREW COVER AND COIL BRACKET TO BLOCK (2-1/2") |
1 | discontinued |
| 8 | 26993 |
СТОПОРНАЯ ШАЙБА (0.312) COIL MOUNTING BRACKET SCREW LOCKWASHER (.312) COIL MOUNTING BRACKET SCREW |
3 | superseded |
| 9 | 39597 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО COIL MOUNTING BRACKET GROMMET COIL MOUNTING BRACKET |
1 | discontinued |
