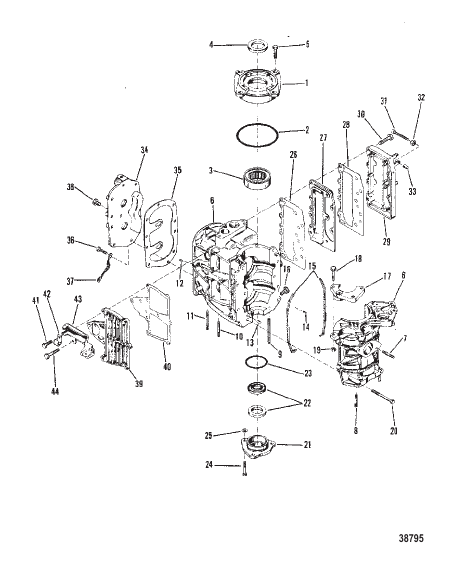

CYLINDER BLOCK CRANKCASE AND COVERS
Parts (49)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 78028A78 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| - | 61779A84 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | superseded |
| 1 | 8277A1 |
ТОРЦЕВАЯ КРЫШКА В СБОРЕ Верхняя часть END CAP ASSEMBLY Upper |
1 | discontinued |
| 10 | 68166 |
ШПИЛЬКА (0.312 x 2.125) CYLINDER BLOCK TO DRIVESHAFT HOUSING STUD (.312 x 2.125) CYLINDER BLOCK TO DRIVESHAFT HOUSING |
2 | |
| 11 | 68167 |
ШПИЛЬКА (0.312-18/0.312-24 x 2.560) CYLINDER BLOCK TO DRIVESHAFT HOUSING STUD (.312-18/.312-24 x 2.560) CYLINDER BLOCK TO DRIVESHAFT HOUSING |
2 | discontinued |
| 12 | 66517 |
ОГРАНИЧИТЕЛЬ CYLINDER BLOCK (BLEED) RESTRICTOR CYLINDER BLOCK (BLEED) |
1 | |
| 13 | 23784 |
ШТИФТ Штифт CRANKCASE TO CYLINDER BLOCK PIN Dowel CRANKCASE TO CYLINDER BLOCK |
2 | |
| 14 | 20323 |
ШТИФТ Штифт CYLINDER BLOCK TO MAIN BEARING PIN Dowel CYLINDER BLOCK TO MAIN BEARING |
1 | |
| 15 | 55158 |
ПРОКЛАДКА SEALING - CYLINDER BLOCK GASKET SEALING - CYLINDER BLOCK |
2 | |
| 16 | 32802 |
ПРОБКА Труба (0.125-27) CYLINDER BLOCK PLUG Pipe (.125-27) CYLINDER BLOCK |
1 | superseded |
| 17 | 62064 |
КРОНШТЕЙН STARTER MOTOR BRACKET STARTER MOTOR |
1 | discontinued |
| 18 | 21339 |
ВИНТ (0.312-24 x 1.375) STARTER MOTOR BRACKET TO BLOCK SCREW (.312-24 x 1.375) STARTER MOTOR BRACKET TO BLOCK |
2 | discontinued |
| 19 | 29250 |
ГАЙКА (0.312-24) STARTER MOTOR BRACKET SCREW NUT (.312-24) STARTER MOTOR BRACKET SCREW |
2 | |
| 2 | 47254 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО UPPER END CAP O-RING UPPER END CAP |
1 | |
| 20 | 73657 |
ВИНТ (0.312-18 x 1.50) CRANKCASE TO CYLINDER BLOCK SCREW (.312-18 x 1.50) CRANKCASE TO CYLINDER BLOCK |
7 | |
| 20 | 63328 |
ВИНТ (0.312-18 x 3.00) CRANKCASE TO CYLINDER BLOCK SCREW (.312-18 x 3.00) CRANKCASE TO CYLINDER BLOCK |
2 | discontinued |
| 20 | 74824 |
ВИНТ (0.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK SCREW (.312-18 x 1.250) CRANKCASE TO CYLINDER BLOCK |
1 | |
| 21 | 7267A1 |
ТОРЦЕВАЯ КРЫШКА В СБОРЕ Нижняя часть END CAP ASSEMBLY Lower |
1 | discontinued |
| 22 | 41953 |
УПЛОТНЕНИЕ LOWER END CAP SEAL LOWER END CAP |
2 | |
| 23 | 64067 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО LOWER END CAP O-RING LOWER END CAP |
1 | superseded |
| 24 | 63365 |
ВИНТ END CAP TO CYLINDER BLOCK (1-1/2") SCREW END CAP TO CYLINDER BLOCK (1-1/2") |
3 | discontinued |
| 25 | 64068 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО LOWER END CAP SCREW O-RING LOWER END CAP SCREW |
3 | |
| 26 | 854891 |
ПРОКЛАДКА CYLINDER BLOCK TO BAFFLE PLATE GASKET CYLINDER BLOCK TO BAFFLE PLATE |
1 | superseded |
| 27 | 55190 |
ПЛАСТИНА DIVIDER - EXHAUST MANIFOLD PLATE DIVIDER - EXHAUST MANIFOLD |
1 | discontinued |
| 28 | 854881 |
ПРОКЛАДКА BAFFLE PLATE TO EXHAUST COVER GASKET BAFFLE PLATE TO EXHAUST COVER |
1 | superseded |
| 29 | 55157 |
КРЫШКА EXHAUST MANIFOLD COVER EXHAUST MANIFOLD |
1 | superseded |
| 3 | 62066 |
ПОДШИПНИК Ролик UPPER END CAP BEARING Roller UPPER END CAP |
1 | superseded |
| 30 | 69092 |
ВИНТ (1.25) MANIFOLD COVER TO CYLINDER BLOCK SCREW (1.25) MANIFOLD COVER TO CYLINDER BLOCK |
1 | superseded |
| 30 | 69099 |
ВИНТ MANIFOLD COVER TO CYLINDER BLOCK (1-3/8") SCREW MANIFOLD COVER TO CYLINDER BLOCK (1-3/8") |
7 | superseded |
| 31 | 64021 |
ВИНТ ADJUSTING - EXHAUST COVER (1-7/8") SCREW ADJUSTING - EXHAUST COVER (1-7/8") |
2 | discontinued |
| 32 | 64015 |
ГАЙКА (0.250-20) ADJUSTING SCREW NUT (.250-20) ADJUSTING SCREW |
2 | |
| 33 | 26852 |
ПРОБКА Нейлон ADJUSTING SCREW CAP Nylon ADJUSTING SCREW |
2 | |
| 34 | 9110 |
КРЫШКА CYLINDER BLOCK COVER CYLINDER BLOCK |
1 | superseded |
| 35 | 854901 |
ПРОКЛАДКА CYLINDER BLOCK COVER GASKET CYLINDER BLOCK COVER |
1 | |
| 36 | 76213 |
ВИНТ (0.250-20 x 1.120) CYLINDER BLOCK COVER MOUNTING SCREW (.250-20 x 1.120) CYLINDER BLOCK COVER MOUNTING |
10 | |
| 37 | 46933A3 |
СКОБА В СБОРЕ Заземление POWERHEAD TO BOTTOM COWL STRAP ASEMBLY Ground POWERHEAD TO BOTTOM COWL |
2 | discontinued |
| 38 | 32802 |
ПРОБКА Труба (0.125-27) CYLINDER BLOCK COVER PLUG Pipe (.125-27) CYLINDER BLOCK COVER |
1 | superseded |
| 39 | 43065 |
КРЫШКА TRANSFER PORT COVER TRANSFER PORT |
1 | superseded |
| 4 | 41953 |
УПЛОТНЕНИЕ UPPER END CAP SEAL UPPER END CAP |
1 | |
| 40 | 55279 |
ПРОКЛАДКА TRANSFER PORT COVER GASKET TRANSFER PORT COVER |
1 | superseded |
| 41 | 69100 |
ВИНТ TRANSFER PORT COVER MOUNTING (1") SCREW TRANSFER PORT COVER MOUNTING (1") |
4 | superseded |
| 42 | 47483 |
J-ЗАЖИМ COIL HARNESS J CLIP COIL HARNESS |
1 | |
| 43 | 92059 |
КРОНШТЕЙН FUEL FILTER AND HARNESS BRACKET FUEL FILTER AND HARNESS |
1 | discontinued |
| 44 | 76213 |
ВИНТ (0.250-20 x 1.120) BRACKET MOUNTING SCREW (.250-20 x 1.120) BRACKET MOUNTING |
2 | |
| 5 | 69034 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.312-18 x 1.00) UPPR END CAP MOUNTING SCREW AND LOCKWASHER (.312-18 x 1.00) UPPR END CAP MOUNTING |
4 | superseded |
| 6 | 7940A2 |
БЛОК ЦИЛИНДРА В СБОРЕ CYLINDER BLOCK ASSEMBLY |
1 | superseded |
| 7 | 68164 |
ШПИЛЬКА CARBURETOR MOUNTING (1-1/4") STUD CARBURETOR MOUNTING (1-1/4") |
2 | superseded |
| 8 | 68165 |
ШПИЛЬКА CRANKCASE TO DRIVESHAFT HOUSING (1-5/8") STUD CRANKCASE TO DRIVESHAFT HOUSING (1-5/8") |
2 | discontinued |
| 9 | 87901 |
ШПИЛЬКА CYLINDER BLOCK TO DRIVESHAFT HOUSING (4-3/8") STUD CYLINDER BLOCK TO DRIVESHAFT HOUSING (4-3/8") |
2 | discontinued |
