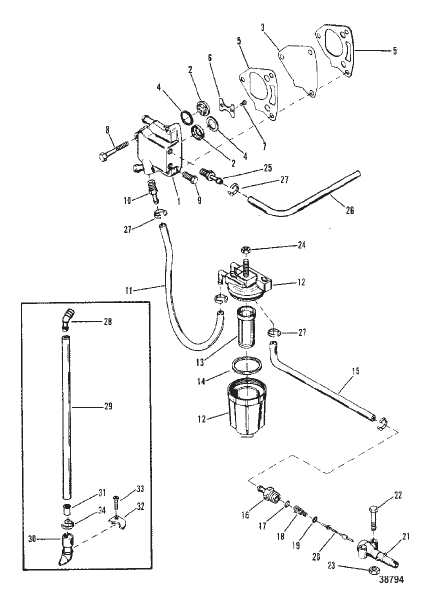

FUEL PUMP AND FUEL LINE
Parts (35)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 78028A78 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| 1 | 76575A9 |
НАСОС В СБОРЕ Топливо PUMP ASSEMBLY Fuel |
1 | discontinued |
| 10 | 64705 |
ФИТИНГ PUMP INLET FITTING PUMP INLET |
1 | |
| 11 | 99127109 |
ТРУБОПРОВОД (Общая длина 57.00") FUEL FILTER TO PUMP (9") LINE (57.00 Inches Bulk) FUEL FILTER TO PUMP (9") |
1 | superseded |
| 12 | 87946A13 |
ФИЛЬТР В СБОРЕ Топливо FILTER ASSEMBLY Fuel |
1 | superseded |
| 13 | 87946A3 |
ФИЛЬТР В СБОРЕ FILTER ASSEMBLY |
1 | superseded |
| 14 | 98277 |
УПЛОТНЕНИЕ FUEL FILTER SEAL FUEL FILTER |
1 | superseded |
| 15 | 99127109 |
ТРУБОПРОВОД (Общая длина 57.00") ADAPTOR TO FUEL FILTER (11") LINE (57.00 Inches Bulk) ADAPTOR TO FUEL FILTER (11") |
1 | superseded |
| 16 | 63187 |
ФИТИНГ Ниппель (0.250-18) FUEL LINE TO ADAPTOR FITTING Barb (.250-18) FUEL LINE TO ADAPTOR |
1 | |
| 17 | 30188 |
ШАЙБА ADAPTOR WASHER ADAPTOR |
1 | |
| 18 | 23067 |
ПРУЖИНА ADAPTOR STEM SPRING ADAPTOR STEM |
1 | superseded |
| 19 | 20415 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО ADAPTOR STEM O-RING ADAPTOR STEM |
1 | superseded |
| 2 | 13424A1 |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
1 | superseded |
| 20 | 23069 |
ШТОК CHECK UNIT ADAPTOR STEM CHECK UNIT ADAPTOR |
1 | discontinued |
| 21 | 22833 |
ПЕРЕХОДНИК CHECK UNIT (FUEL PUMP) ADAPTER CHECK UNIT (FUEL PUMP) |
1 | |
| 22 | 56500 |
ВИНТ (0.250-28 x 1.250) ADAPTOR TO BOTTOM COWL SCREW (.250-28 x 1.250) ADAPTOR TO BOTTOM COWL |
2 | |
| 23 | 36069 |
ГАЙКА ADAPTOR SCREW NUT ADAPTOR SCREW |
2 | |
| 24 | 400212 |
ГАЙКА (M6), нержавеющая сталь FUEL FILTER NUT (M6) Stainless Steel FUEL FILTER |
1 | |
| 25 | 64705 |
ФИТИНГ PUMP OUTLET FITTING PUMP OUTLET |
1 | |
| 26 | 99127109 |
ТРУБОПРОВОД (Общая длина 57.00") PUMP TO CARBURETOR (12-3/4") LINE (57.00 Inches Bulk) PUMP TO CARBURETOR (12-3/4") |
1 | superseded |
| 27 | 68424 |
ЗАЖИМ FUEL LINE ATTACHING CLAMP FUEL LINE ATTACHING |
8 | discontinued |
| 28 | 78279 |
КОЛЕНЧАТЫЙ TELL TALE HOSE TO BLOCK ELBOW TELL TALE HOSE TO BLOCK |
1 | superseded |
| 29 | 7568022 |
РУКАВ TELL TALE (6") HOSE TELL TALE (6") |
1 | superseded |
| 3 | 55278A3 |
КОМПЛЕКТ ДИАФРАГМ DIAPHRAGM KIT |
1 | superseded |
| 30 | 69791 |
ШТУЦЕР TELL TALE HOSE TO COWL NOZZLE TELL TALE HOSE TO COWL |
1 | |
| 31 | 90882 |
РУКАВ NOZZLE SLEEVE NOZZLE |
1 | |
| 32 | 66849 |
ЗАЖИМ NOZZLE CLAMP NOZZLE |
1 | discontinued |
| 33 | 48409 |
ВИНТ (№10-16 x 0.625), нержавеющая сталь CLAMP TO BOTTOM COWL SCREW (#10-16 x .625) Stainless Steel CLAMP TO BOTTOM COWL |
1 | |
| 34 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") NOZZLE TIE STRAP (4.00 Inches) NOZZLE |
1 | |
| 4 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GASKET NOT SOLD SEPARATE GASKET |
2 | |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GASKET NOT SOLD SEPARATE GASKET |
2 | |
| 6 | 23004 |
ФИКСАТОР CHECK VALVE RETAINER CHECK VALVE |
1 | discontinued |
| 7 | 43725 |
ВИНТ (№6-32 x 0.380) RETAINRER TO HOUSING SCREW (#6-32 x .380) RETAINRER TO HOUSING |
2 | |
| 8 | 35581 |
ВИНТ FUEL PUMP MOUNTING (1-5/8") SCREW FUEL PUMP MOUNTING (1-5/8") |
3 | superseded |
| 9 | 32802 |
ПРОБКА Труба (0.125-27) FUEL PUMP PLUG Pipe (.125-27) FUEL PUMP |
1 | superseded |
