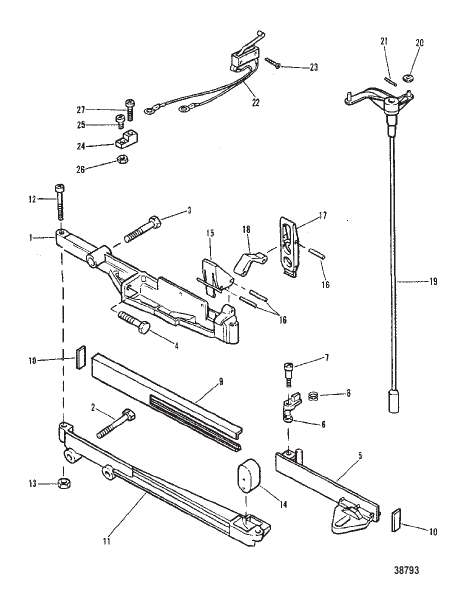

SHIFT CONTROL LINKAGE
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 87876 |
КРОНШТЕЙН SHIFT ANCHOR - UPPER BRACKET SHIFT ANCHOR - UPPER |
1 | superseded |
| 10 | 39515 |
КОЛПАЧОК NYLON - ANCHOR BRACKET SLIDE END CAP NYLON - ANCHOR BRACKET SLIDE |
2 | discontinued |
| 11 | 75715 |
КРОНШТЕЙН SHIFT ANCHOR - LOWER BRACKET SHIFT ANCHOR - LOWER |
1 | superseded |
| 12 | 20012 |
ВИНТ (0.250-28 x 1.62) SCREW (.250-28 x 1.62) |
2 | discontinued |
| 13 | 20586 |
ГАЙКА (0.250-28) UPPER ANCHOR BRACKET SCREW NUT (.250-28) UPPER ANCHOR BRACKET SCREW |
2 | superseded |
| 14 | 39519 |
КОЛПАЧОК RETAINER - ANCHOR BRACKET (SHIFT CABLE BARREL) CUP RETAINER - ANCHOR BRACKET (SHIFT CABLE BARREL) |
1 | |
| 15 | 39618 |
РЫЧАГ NYLON - SHIFT CABLE LOCKING LEVER NYLON - SHIFT CABLE LOCKING |
1 | superseded |
| 16 | 47175 |
ШТИФТ LOCKING LEVERA AND COVER FASTENING PIN LOCKING LEVERA AND COVER FASTENING |
3 | discontinued |
| 17 | 90211 |
КРЫШКА NYLON - SHIFT CABLE COVER NYLON - SHIFT CABLE |
1 | discontinued |
| 18 | 65799 |
СОЕДИНИТЕЛЬ LOCKING LEVER TO COVER LINK LOCKING LEVER TO COVER |
1 | superseded |
| 19 | 75104A7 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ В СБОРЕ (SHORT SHAFT) SHIFT SHAFT ASSEMBLY (SHORT SHAFT) |
1 | discontinued |
| 19 | 75104A8 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ В СБОРЕ (LONG SHAFT) SHIFT SHAFT ASSEMBLY (LONG SHAFT) |
1 | discontinued |
| 2 | 73657 |
ВИНТ (0.312-18 x 1.50) SCREW (.312-18 x 1.50) |
2 | |
| 20 | 37998 |
ШАЙБА UPPER SHIFT SHAFT MANUAL WASHER UPPER SHIFT SHAFT MANUAL |
1 | |
| 21 | 27769 |
ШПЛИНТ UPPER SHIFT SHAFT MANUAL COTTER PIN UPPER SHIFT SHAFT MANUAL |
1 | superseded |
| 22 | 88096A1 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ ELECTRIC TILLER SWITCH ASSEMBLY ELECTRIC TILLER |
1 | discontinued |
| 23 | 30902 |
ВИНТ (№6-32 x 0.750) ELECTRIC TILLER SCREW (#6-32 x .750) ELECTRIC TILLER |
2 | discontinued |
| 24 | 45915 |
КЛЕММНАЯ КОЛОДКА ELECTRIC TILLER TERMINAL BLOCK ELECTRIC TILLER |
1 | |
| 25 | 25764 |
ВИНТ (0.190-32 x 0.50) ELECTRIC TILLER SCREW (.190-32 x .50) ELECTRIC TILLER |
1 | |
| 26 | 27164 |
ГАЙКА И СТОПОРНАЯ ШАЙБА (№10-32) ELECTRIC TILLER NUT AND LOCKWASHER (#10-32) ELECTRIC TILLER |
1 | |
| 27 | 69079 |
ВИНТ (№10-16 x 0.440) ELECTRIC TILLER SCREW (#10-16 x .440) ELECTRIC TILLER |
||
| 3 | 67450 |
ВИНТ (0.312-18 x 2.250) SCREW (.312-18 x 2.250) |
1 | discontinued |
| 4 | 35385 |
ВИНТ (0.312-18 x 1-3/4) BRACKET TO CRANKCASE SCREW (.312-18 x 1-3/4) BRACKET TO CRANKCASE |
1 | discontinued |
| 5 | 87874 |
ПОЛЗУН SHIFT ACUTATING SLIDE SHIFT ACUTATING |
1 | discontinued |
| 6 | 56193 |
ЗАЩЕЛКА SHIFT ACUTATING SLIDE (SHIFT CABLE) LATCH SHIFT ACUTATING SLIDE (SHIFT CABLE) |
1 | discontinued |
| 7 | 39620 |
ВИНТ LATCH TO SHIFT ACTUTING SLIDE SCREW LATCH TO SHIFT ACTUTING SLIDE |
1 | discontinued |
| 8 | 27087 |
ПРУЖИНА COMPRESSION - LATCH SCREW SPRING COMPRESSION - LATCH SCREW |
1 | discontinued |
| 9 | 75717 |
ПОЛЗУН NYLON -ANCHOR BRACKET SLIDE NYLON -ANCHOR BRACKET |
1 | discontinued |
