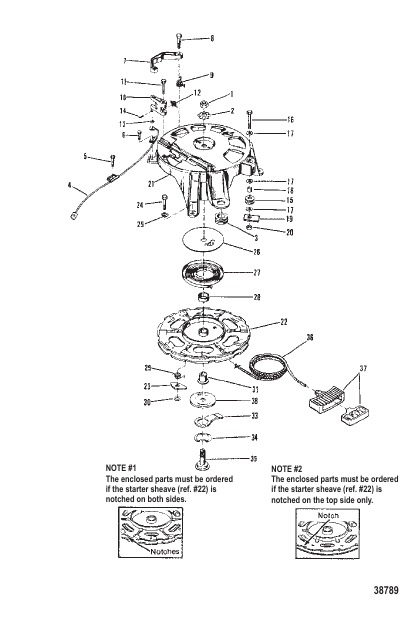

STARTER REWIND
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 76079A8 |
СТАРТЕР В СБОРЕ Перемотка STARTER ASSEMBLY Rewind |
1 | discontinued |
| 1 | 20166 |
ГАЙКА SHEAVE SHAFT (LEFT HAND THREAD) NUT SHEAVE SHAFT (LEFT HAND THREAD) |
1 | discontinued |
| 10 | 79371 |
РУЛЕВОЙ ПРИВОД MANUAL ACTUATOR MANUAL |
1 | discontinued |
| 11 | 76137 |
ВИНТ MANUAL SCREW MANUAL |
1 | discontinued |
| 12 | 76139 |
ПРУЖИНА MANUAL SPRING MANUAL |
1 | discontinued |
| 13 | 30191 |
ШАЙБА MANUAL WASHER MANUAL |
1 | discontinued |
| 14 | 27769 |
ШПЛИНТ MANUAL COTTER PIN MANUAL |
1 | superseded |
| 15 | 55860 |
ШКИВ STARTER PULLEY STARTER |
1 | |
| 16 | 45210 |
ВИНТ (0.190-32 x 1.250) SCREW (.190-32 x 1.250) |
1 | discontinued |
| 17 | 22887 |
ШАЙБА PULLEY SCREW WASHER PULLEY SCREW |
3 | discontinued |
| 18 | 30977 |
ПРОСТАВКА PULLEY SCREW SPACER PULLEY SCREW |
1 | superseded |
| 19 | 94121 |
ФИКСАТОР STARTER ROPE RETAINER STARTER ROPE |
1 | discontinued |
| 2 | 61004 |
ЛЕПЕСТКОВАЯ ШАЙБА SHREAVE SHAFT NUT TAB WASHER SHREAVE SHAFT NUT |
1 | discontinued |
| 20 | 24656 |
ГАЙКА PULLEY SCREW NUT PULLEY SCREW |
1 | discontinued |
| 21 | 76080A1 |
КОРПУС В СБОРЕ Стартер SEE NOTE #1 ON ILLUSTRATION HOUSING ASSEMBLY Starter SEE NOTE #1 ON ILLUSTRATION |
1 | superseded |
| 21 | 760791 |
КОРПУС Стартер SEE NOTE #2 ON ILLUSTRATION HOUSING Starter SEE NOTE #2 ON ILLUSTRATION |
1 | superseded |
| 22 | 94338A1 |
РОЛИК В СБОРЕ Стартер SEE NOTE #1 ON ILLUSTRATION SHEAVE ASSEMBLY Starter SEE NOTE #1 ON ILLUSTRATION |
1 | discontinued |
| 22 | 44255A1 |
РОЛИК В СБОРЕ Стартер SEE NOTE #2 ON ILLUSTRATION SHEAVE ASSEMBLY Starter SEE NOTE #2 ON ILLUSTRATION |
1 | discontinued |
| 23 | 91936 |
СТОПОР Стартер SEE NOTE #1 ON ILLUSTRATION PAWL Starter SEE NOTE #1 ON ILLUSTRATION |
1 | discontinued |
| 23 | 44508 |
СТОПОР Стартер SEE NOTE #2 ON ILLUSTRATION PAWL Starter SEE NOTE #2 ON ILLUSTRATION |
1 | discontinued |
| 24 | 88759 |
ВИНТ (1") SCREW (1") |
2 | discontinued |
| 24 | 88760 |
ВИНТ (0.312-18 x 1.250) SCREW (.312-18 x 1.250) |
1 | discontinued |
| 25 | 26993 |
СТОПОРНАЯ ШАЙБА (0.312) STARTER HOUSING SCREW LOCKWASHER (.312) STARTER HOUSING SCREW |
3 | superseded |
| 26 | 61002 |
ПЛАСТИНА STARTER REWIND PLATE STARTER REWIND |
1 | discontinued |
| 27 | 39502A1 |
ПРУЖИНА STARTER REWIND SPRING STARTER REWIND |
1 | superseded |
| 28 | 87649 |
ВТУЛКА SPRING GUIDE BUSHING SPRING GUIDE |
1 | discontinued |
| 29 | 87651 |
ПРУЖИНА STARTER PAWL SPRING STARTER PAWL |
1 | discontinued |
| 3 | 39597 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО STARTER HOUSING GROMMET STARTER HOUSING |
2 | discontinued |
| 30 | 87706 |
Е-ОБРАЗНОЕ КОЛЬЦО STARTER PAWL E RING STARTER PAWL |
1 | discontinued |
| 31 | 63061 |
ПРОСТАВКА SHEAVE SHAFT SPACER SHEAVE SHAFT |
1 | discontinued |
| 33 | 94962 |
РЫЧАГ LEVER |
1 | discontinued |
| 34 | 20160 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | |
| 35 | 87656 |
ВАЛ СО ШКИВОМ SHEAVE SHAFT |
1 | discontinued |
| 36 | 28985A2 |
КАБЕЛЬ В СБОРЕ Стартер CABLE ASSEMBLY Starter |
1 | superseded |
| 36 | 47341A1 |
КОМПЛЕКТ ТРОСА И РУКОЯТКИ Ручной/аварийный запуск (FOR MANUAL STARTING) ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING) |
1 | superseded |
| 37 | 79470A1 |
КОМПЛЕКТ ФИКСАТОРОВ Трос RETAINER KIT Rope |
1 | |
| 38 | 35559 |
ШАЙБА STARTER REWIND WASHER STARTER REWIND |
1 | |
| 4 | 76141 |
КАБЕЛЬ В СБОРЕ INTERLOCK MANUAL CABLE ASSEMBLY INTERLOCK MANUAL |
1 | discontinued |
| 5 | 32228 |
ВИНТ (№10-32 x 0.625) MANUAL SCREW (#10-32 x .625) MANUAL |
1 | |
| 6 | 69022 |
ВИНТ (№10-32 x 0.500), нержавеющая сталь MANUAL SCREW (#10-32 x .500) Stainless Steel MANUAL |
1 | |
| 7 | 42820 |
КУЛАЧОК INTERLOCK MANUAL CAM INTERLOCK MANUAL |
1 | superseded |
| 8 | 76138 |
ВИНТ (0.312-18 x 1.120) MANUAL SCREW (.312-18 x 1.120) MANUAL |
1 | discontinued |
| 9 | 76140 |
ПРУЖИНА MANUAL SPRING MANUAL |
1 | superseded |
